Monte Mor, São Paulo, Brazil presents a favorable location for year-round solar photovoltaic energy generation, with consistently strong solar output throughout all seasons. The location benefits from its tropical positioning, which provides reliable sunlight availability across the entire year.

Seasonal Solar Performance

The solar energy production at Monte Mor shows excellent consistency, with summer delivering the highest output at 6.78 kWh per day per kW of installed capacity. Spring follows closely with 6.22 kWh/day, while autumn provides 5.55 kWh/day. Even during the lowest-performing season of winter, the location still generates a respectable 4.80 kWh/day per kW installed. This seasonal pattern makes Monte Mor particularly attractive for solar installations, as the variation between peak and minimum production is relatively modest compared to higher latitude locations. The summer and spring months represent the ideal times for maximum solar generation at this site.

Optimal Panel Configuration

For fixed panel installations at Monte Mor, São Paulo, the ideal tilt angle to maximize total year-round solar production is 21 degrees facing north. This angle has been calculated by analyzing daily solar elevation angles throughout the year and weighting them according to photovoltaic potential, accounting for Earth's elliptical orbit and seasonal variations.

Environmental and Weather Considerations

Several local factors could potentially impact solar production at Monte Mor and require careful consideration during installation planning. Tropical Weather Patterns: The location's tropical climate brings distinct wet and dry seasons, with the wet season potentially reducing solar output due to increased cloud cover and frequent precipitation. Heavy rainfall during wet periods can temporarily decrease energy generation, though it also provides natural panel cleaning. Humidity and Moisture: High humidity levels typical of tropical regions can affect electrical components and connections over time. Moisture infiltration into junction boxes, inverters, and wiring systems poses risks to system performance and longevity. Temperature Effects: While abundant sunshine is beneficial, consistently high temperatures can reduce photovoltaic panel efficiency. Solar panels typically lose efficiency as temperatures rise above their optimal operating range.

Preventative Installation Measures

Several strategies can help maximize solar energy production and system durability at this location:

• Enhanced weatherproofing: Use high-grade sealing materials and waterproof junction boxes designed for tropical climates to prevent moisture infiltration
• Improved ventilation: Install panels with adequate spacing from roof surfaces and between panels to promote air circulation and cooling
• Corrosion-resistant materials: Select aluminum frames and stainless steel mounting hardware specifically rated for high-humidity environments
• Drainage considerations: Ensure proper water runoff design to prevent pooling around electrical components during heavy rains
• Regular maintenance scheduling: Plan for more frequent cleaning and inspection cycles during and after wet seasons

Despite these considerations, Monte Mor's consistent solar resource makes it an excellent location for photovoltaic installations. With proper system design and installation practices tailored to the tropical environment, solar panels can deliver reliable, high-performance energy generation throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

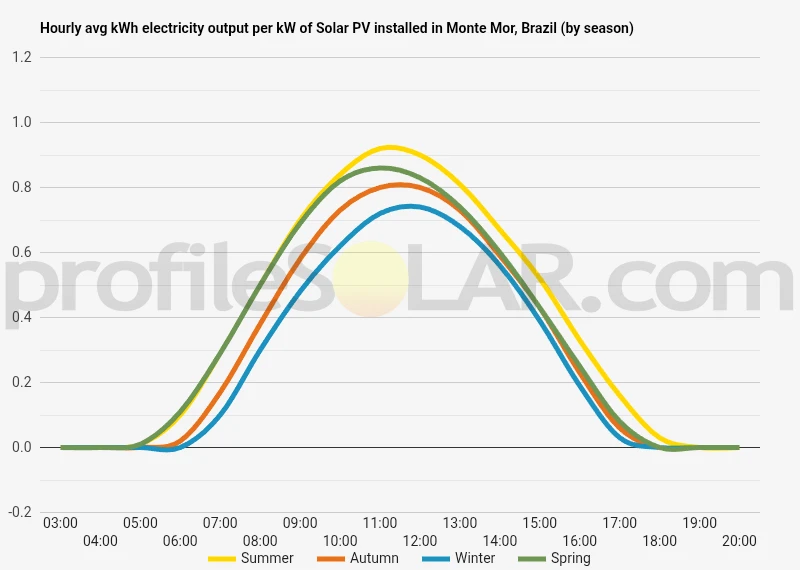

Solar output per kW of installed solar PV by season in Monte Mor

Seasonal solar PV output for Latitude: -22.9504, Longitude: -47.2977 (Monte Mor, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Monte Mor, Brazil

To maximize your solar PV system's energy output in Monte Mor, Brazil (Lat/Long -22.9504, -47.2977) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Monte Mor, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Monte Mor, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° North in Summer	29° North in Autumn	38° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Monte Mor, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Monte Mor, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Monte Mor, Brazil

Topographical Features of Monte Mor Region

Monte Mor sits within the southeastern Brazilian state of São Paulo, positioned in a region characterized by gently rolling hills and relatively modest elevation changes. The terrain around this municipality consists primarily of undulating countryside typical of the interior Paulista landscape, with elevations generally ranging between 500 and 700 meters above sea level. The topography is neither dramatically mountainous nor completely flat, creating a landscape of gradual slopes and broad valleys that has been shaped by centuries of agricultural activity.

The area forms part of the broader Piracicaba River basin, which influences much of the local drainage patterns and landform development. Rolling hills extend in multiple directions from Monte Mor, interspersed with flatter valley floors that have traditionally been favored for agricultural purposes. The terrain becomes progressively more varied as one moves toward the Serra do Japi mountain range to the northeast, while flatter plains extend toward the Tietê River valley to the south.

Water features throughout the region include numerous small streams and tributaries that flow toward the Piracicaba River system. These waterways have carved gentle valleys through the landscape, creating natural boundaries between elevated areas while also providing irrigation sources for the extensive sugarcane and other agricultural operations that dominate land use patterns across much of the surrounding countryside.

Optimal Areas for Large-Scale Solar Development

The most promising locations for substantial solar photovoltaic installations around Monte Mor would be the elevated plateau areas and broad hilltops that offer relatively flat or gently sloping terrain. These elevated positions provide several advantages including reduced risk of flooding, minimal shading from surrounding topographical features, and often better access to existing electrical transmission infrastructure that serves the region's industrial and agricultural operations.

Areas to the west and southwest of Monte Mor present particularly favorable conditions, where the terrain consists of broad, gently rolling hills with southern-facing slopes that would optimize solar collection throughout the day. These locations also tend to have fewer competing land uses compared to the prime agricultural valleys, making them more available for energy development projects while avoiding conflicts with the region's important sugarcane and citrus production.

The flatter valley floors, while potentially easier to develop from a construction standpoint, may be less suitable due to their higher agricultural value and greater susceptibility to morning fog formation that can reduce solar efficiency. Additionally, these lower-lying areas often contain more valuable farmland that serves the local economy, making the elevated positions more practical choices for large-scale solar installations.

Transportation access represents another crucial factor, with areas near major highways like SP-101 and SP-332 offering better logistics for construction and maintenance operations. The relatively gentle topography throughout most of the region means that road access to potential solar sites would generally not present significant engineering challenges, unlike what might be encountered in more mountainous terrain elsewhere in Brazil.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
