Solar Energy Potential in Mucambo, Ceará, Brazil

Mucambo, Ceará, Brazil, located at latitude -3.9078 and longitude -40.7694, offers excellent year-round potential for solar energy generation. This tropical location benefits from consistent sunlight throughout most of the year, with seasonal variations defined more by wet and dry periods rather than significant temperature changes. The solar energy production at this location shows impressive output across all seasons. During spring, the location achieves its peak performance with 6.82 kWh per day for each kilowatt of installed solar capacity. Winter follows with a strong 6.17 kWh/day, while autumn and summer produce 5.73 kWh/day and 5.61 kWh/day respectively.

Optimal Panel Installation

For fixed solar panel installations in Mucambo, Ceará, the ideal tilt angle to maximize year-round energy production is 4 degrees facing North. This slight tilt optimizes the capture of solar radiation throughout the year, accounting for the location's proximity to the equator where the sun passes nearly directly overhead. Spring and winter represent the most productive seasons for solar generation in Mucambo, Ceará, with output approximately 21% higher in spring compared to summer. This pattern suggests that planning maintenance during the less productive summer months would minimize production losses.

Environmental Considerations

Several environmental factors could potentially impact solar production in Mucambo:

• Heavy rainfall during the wet season may reduce solar efficiency due to cloud cover and potential panel soiling
• High humidity levels can cause moisture accumulation on panels, potentially leading to reduced efficiency
• Dust accumulation during dry periods can create a film on panels that diminishes their effectiveness

Preventative Measures

To maximize solar energy production despite these challenges, several preventative measures should be considered during installation: Installing panels with self-cleaning technologies or hydrophobic coatings can significantly reduce maintenance needs in this tropical climate. Implementing an automated cleaning system would be particularly beneficial during the dry season when dust accumulation is highest. A robust mounting system designed to withstand occasional heavy rainfall and potential flooding is essential. Additionally, using high-quality inverters with tropical ratings will ensure better performance in high humidity conditions. Finally, incorporating a monitoring system that tracks performance can help identify efficiency drops due to environmental factors, allowing for timely maintenance and ensuring optimal energy production throughout Mucambo's varying seasonal conditions.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

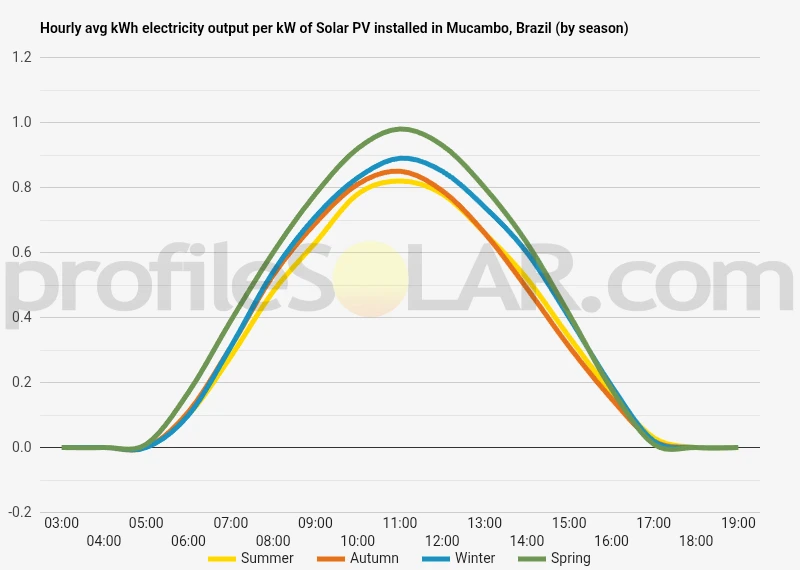

Solar output per kW of installed solar PV by season in Mucambo

Seasonal solar PV output for Latitude: -3.9078, Longitude: -40.7694 (Mucambo, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 4° North in Mucambo, Brazil

To maximize your solar PV system's energy output in Mucambo, Brazil (Lat/Long -3.9078, -40.7694) throughout the year, you should tilt your panels at an angle of 4° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Mucambo, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Mucambo, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 4° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° South in Summer	11° North in Autumn	20° North in Winter	2° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Mucambo, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Mucambo, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Mucambo, Brazil

The topography around Mucambo, Brazil presents a diverse landscape characterized by gentle rolling hills, shallow valleys, and modest elevations typical of the northeastern Brazilian interior. Located in the state of Ceará, Mucambo sits in a transitional zone between the coastal plains and the higher elevations of the Ibiapaba Plateau to the west. The terrain gradually rises as one moves westward from Mucambo, with elevations ranging from approximately 200 to 400 meters above sea level in the immediate vicinity. The region features a semi-arid climate with vegetation primarily consisting of caatinga, a distinctive type of thorny scrubland adapted to the dry conditions. This natural environment has created an undulating landscape where erosion has shaped numerous small hills and shallow drainage channels that become active during the brief rainy season.

Surrounding Topographical Features

To the east of Mucambo, the landscape becomes progressively flatter as it extends toward the coastal plains of Ceará. This eastern region features more open terrain with fewer significant elevation changes, creating broad expanses of relatively level ground. The soil in these areas tends to be sandy and well-drained, with sparse vegetation coverage. The western direction from Mucambo presents more pronounced topographical features as the land rises toward the Ibiapaba Plateau, a significant escarpment that forms a natural boundary between Ceará and Piauí states. These western elevations create a more varied landscape with steeper slopes and occasional plateaus. The northern and southern approaches to Mucambo consist of rolling countryside with intermittent small hills and shallow valleys. Several seasonal streams and minor river channels cut through this landscape, creating natural divisions in the terrain.

Solar PV Suitability

For large-scale solar photovoltaic installations, the eastern and southeastern territories surrounding Mucambo offer the most promising conditions. These areas benefit from several advantageous characteristics: The relatively flat expanses east of Mucambo provide ideal conditions for extensive solar arrays, minimizing the costs associated with land preparation and maximizing the efficiency of panel placement. The gently undulating terrain in this direction allows for optimal panel orientation without requiring significant earthworks. Additionally, these eastern regions typically have less vegetation coverage, reducing clearance requirements and environmental impact concerns. The well-drained sandy soils provide good stability for mounting systems while facilitating access for construction and maintenance vehicles. The northeastern quadrant from Mucambo also presents favorable topography for solar development, with broad, open areas that receive consistent sun exposure throughout the day. These locations offer sufficient space for large installations while maintaining reasonable proximity to existing infrastructure. Areas to potentially avoid include the more rugged western approaches toward the Ibiapaba Plateau, where steeper gradients would complicate construction and potentially create shading issues for solar arrays. Similarly, the immediate vicinity of seasonal watercourses and drainage channels should be avoided due to potential flooding concerns during the rainy season. The semi-arid climate of the region means that vegetation management would be relatively straightforward in most locations, with the sparse caatinga requiring minimal clearance compared to more densely vegetated regions elsewhere in Brazil.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
