Muniz Freire, Espírito Santo, Brazil presents a good to very good location for year-round solar PV energy generation. Located in the tropics at coordinates -20.4227, -41.4257, this area benefits from consistent sunlight throughout most of the year, with seasons characterized more by wet and dry periods rather than dramatic temperature variations.

Seasonal Solar Performance

The solar energy output varies moderately across seasons, with summer delivering the highest production at 6.12 kWh per day per kW of installed solar capacity. Spring follows as the second-best season with 5.13 kWh per day per kW, while autumn produces 5.50 kWh per day per kW. Winter shows the lowest output at 4.56 kWh per day per kW, though this still represents reasonable production levels. For optimal year-round performance, solar panels should be installed at a fixed tilt angle of 19 degrees facing north. This angle maximizes total annual energy production by accounting for the sun's varying elevation throughout the year and the location's specific latitude.

Environmental Factors and Challenges

Several environmental factors could potentially impact solar production in Muniz Freire:

• Heavy rainfall during wet season - Can reduce solar irradiance and create cloud cover
• High humidity levels - May cause moisture-related equipment issues
• Dust and debris accumulation - Particularly during dry periods
• Tropical vegetation growth - Can create shading issues if not managed

Preventative Measures

To maximize energy production despite these challenges, several installation strategies should be considered: Moisture Protection: Use high-quality weatherproof mounting systems and ensure proper drainage around panel installations. Select inverters and electrical components rated for high-humidity tropical environments. Regular Maintenance: Implement a cleaning schedule to remove dust, pollen, and organic debris that accumulates on panel surfaces. This is particularly important during transitions between wet and dry seasons. Vegetation Management: Maintain clear sight lines to the sun by regularly trimming nearby trees and vegetation. Consider the mature growth patterns of local flora when selecting installation sites. Robust Mounting: Install panels with sturdy mounting systems designed to withstand tropical weather conditions, including potential heavy rainfall and wind associated with seasonal weather patterns. Overall, Muniz Freire offers favorable conditions for solar energy generation, with the summer and spring months providing peak production periods. Proper installation techniques and regular maintenance can effectively address the environmental challenges typical of this tropical location.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

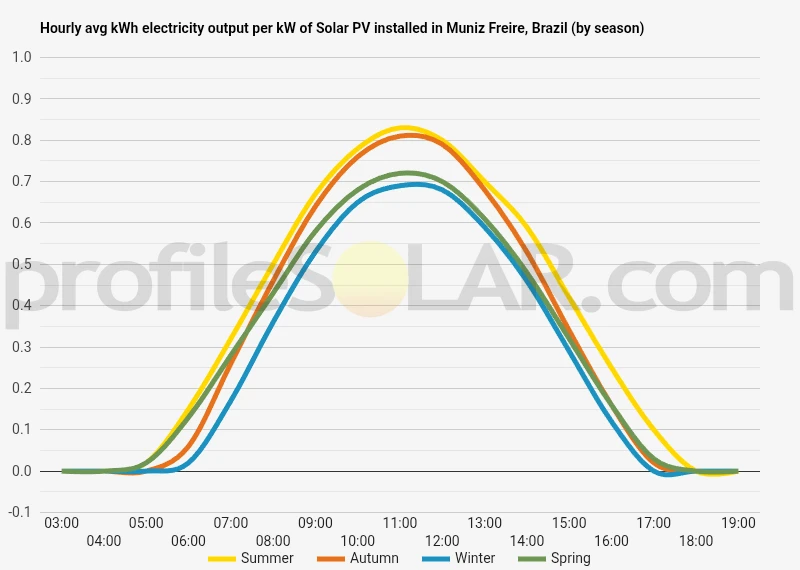

Solar output per kW of installed solar PV by season in Muniz Freire

Seasonal solar PV output for Latitude: -20.4227, Longitude: -41.4257 (Muniz Freire, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 19° North in Muniz Freire, Brazil

To maximize your solar PV system's energy output in Muniz Freire, Brazil (Lat/Long -20.4227, -41.4257) throughout the year, you should tilt your panels at an angle of 19° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Muniz Freire, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Muniz Freire, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° North in Summer	26° North in Autumn	36° North in Winter	14° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Muniz Freire, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Muniz Freire, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Muniz Freire, Brazil

Topographical Features of the Muniz Freire Region

The area surrounding Muniz Freire in Espírito Santo state sits within Brazil's southeastern highlands, characterized by rolling hills and mountainous terrain typical of the Atlantic Plateau region. This municipality lies at an elevation of approximately 800 meters above sea level, nestled among the Serra do Caparaó mountain range foothills. The landscape features a complex mix of steep-sided valleys, rounded hilltops, and intermediate slopes that create a distinctly undulating topography. The region's terrain reflects its geological history, with ancient crystalline rocks forming the foundation beneath weathered soils. Rivers and streams have carved deep valleys through the landscape over millennia, creating a network of drainage channels that flow eastward toward the Atlantic Ocean. These waterways include tributaries of the Itapemirim River system, which has shaped much of the local topography through erosional processes. Vegetation in the area transitions between Atlantic Forest remnants on steeper slopes and agricultural lands on more manageable terrain. Coffee plantations historically dominated the gentler slopes, taking advantage of the favorable climate and well-drained soils. The natural forest cover that remains tends to occupy the steepest and most inaccessible areas, while cleared lands spread across the more workable hillsides and valley floors.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be found on the broader, gentler slopes and plateau areas that offer relatively flat or mildly inclined surfaces. These areas provide the necessary space for large arrays while minimizing the engineering challenges associated with steep terrain. The elevated plateaus and ridge tops, where they flatten sufficiently, present particularly attractive options due to their exposure and reduced shading from surrounding topography. Valley floors and lower-lying areas with adequate drainage would also serve well for solar development, provided they avoid flood-prone zones near active waterways. These locations often offer larger continuous parcels of developable land compared to the fragmented hilltop sites. The key advantage of valley locations lies in their potential for accommodating extensive solar farms without the access difficulties that characterize steeper mountain slopes. Agricultural lands on moderate slopes could be repurposed for solar installations, particularly areas where farming has become less economically viable. These sites typically already have some level of access infrastructure and cleared vegetation, reducing initial development costs. The transition zones between steep forested areas and valley floors often provide the optimal balance of available space, manageable topography, and practical accessibility for construction and maintenance activities. Areas facing south or southeast would be preferred for maximum solar exposure, while locations with consistent wind patterns could benefit from natural cooling effects that improve panel efficiency. The higher elevation of the region generally provides clearer atmospheric conditions compared to lower coastal areas, though care must be taken to avoid sites prone to frequent fog or cloud cover that can occur in certain microclimatic zones within the mountainous terrain.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
