Muzambinho, Minas Gerais, Brazil presents a very favorable location for year-round solar photovoltaic energy generation. Located in the tropical region at coordinates -21.3499, -46.515, this area benefits from consistent sunlight throughout most of the year, with seasonal variations characterized more by wet and dry periods rather than dramatic temperature changes.

Solar Energy Production Performance

The solar energy output at Muzambinho demonstrates strong performance across all seasons. Summer delivers the highest production at 6.36kWh per day per kW of installed solar capacity, making it the peak generation period. Spring follows closely with 6.02kWh/day per kW, while autumn produces 5.62kWh/day per kW. Even during the lowest-producing season of winter, the location still generates a respectable 5.05kWh/day per kW. This seasonal pattern shows that Muzambinho experiences only moderate variation in solar output throughout the year, with the difference between peak and lowest production being just 1.31kWh/day per kW. Such consistency makes it an excellent location for reliable solar energy generation. For optimal year-round energy production, solar panels should be installed at a fixed tilt angle of 20 degrees facing north. This angle maximizes total annual solar output by accounting for the sun's path throughout the year and the location's specific latitude.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production in Muzambinho, Minas Gerais, though the location remains highly suitable for solar installations with proper planning. Tropical Weather Patterns: Being in a tropical climate zone, Muzambinho likely experiences distinct wet and dry seasons. During wet periods, increased cloud cover and frequent rainfall can temporarily reduce solar irradiance and energy output. Heavy rains may also deposit dirt and debris on solar panels, reducing their efficiency. Humidity and Moisture: High humidity levels common in tropical regions can lead to moisture infiltration in electrical components and connections, potentially causing corrosion or system failures over time. Temperature Effects: While tropical locations receive abundant sunlight, high ambient temperatures can actually reduce solar panel efficiency, as photovoltaic cells perform less efficiently when overheated.

Preventative Measures for Optimal Performance

Several installation strategies can help maximize solar energy production despite these environmental challenges:

• Panel Positioning and Ventilation: Install panels with adequate spacing and ventilation underneath to promote air circulation and cooling, reducing temperature-related efficiency losses
• Quality Mounting Systems: Use corrosion-resistant mounting hardware made from marine-grade aluminum or stainless steel to withstand high humidity conditions
• Sealed Electrical Components: Employ weatherproof inverters, junction boxes, and wiring connections specifically rated for tropical climates
• Regular Maintenance Schedule: Implement routine cleaning protocols to remove accumulated dirt, dust, and organic matter, particularly important during and after wet seasons
• Drainage Considerations: Ensure proper water drainage around ground-mounted systems to prevent flooding or water damage during heavy rainfall periods

Despite these considerations, Muzambinho's consistent solar resource and relatively modest seasonal variation make it an excellent candidate for solar PV installations. With appropriate system design and maintenance practices, solar installations at this location can achieve reliable, high-performance energy generation throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

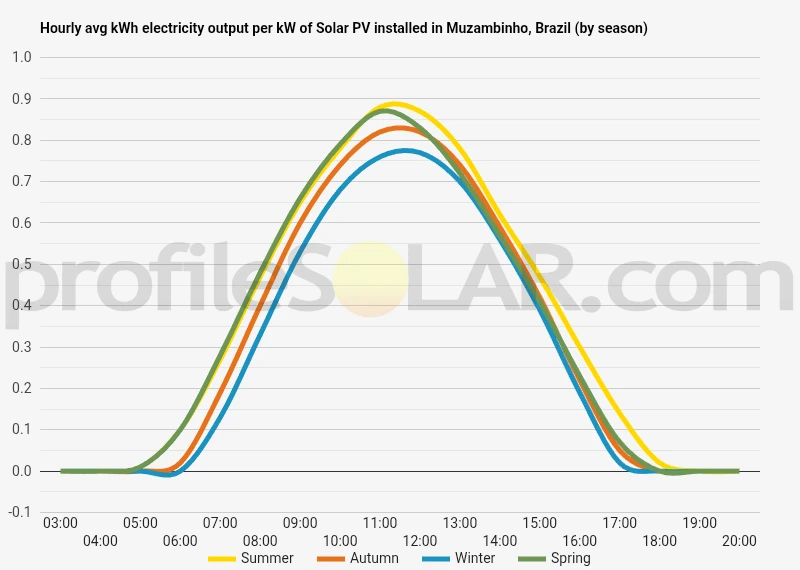

Solar output per kW of installed solar PV by season in Muzambinho

Seasonal solar PV output for Latitude: -21.3499, Longitude: -46.515 (Muzambinho, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° North in Muzambinho, Brazil

To maximize your solar PV system's energy output in Muzambinho, Brazil (Lat/Long -21.3499, -46.515) throughout the year, you should tilt your panels at an angle of 20° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Muzambinho, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Muzambinho, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° North in Summer	27° North in Autumn	37° North in Winter	15° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Muzambinho, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Muzambinho, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Muzambinho, Brazil

Topographical Features of Muzambinho Region

Muzambinho sits in the heart of Minas Gerais state's coffee-growing highlands, positioned within the southern portion of the Brazilian Plateau. The surrounding landscape is characterized by gently rolling hills and elevated terrain, with the town itself perched at approximately 1,000 meters above sea level. This elevated position creates a distinctive topographical profile that shapes both the local climate and land use patterns throughout the region.

The terrain around Muzambinho features a series of undulating hills and valleys that form part of the Serra da Mantiqueira mountain system's western foothills. These geological formations create a landscape of moderate slopes interspersed with flatter valley floors and ridge tops. The topography is generally stable, with well-drained soils that have made the region famous for its agricultural productivity, particularly coffee cultivation.

Water drainage patterns in the area follow the natural contours of the land, with several small streams and tributaries flowing through the valleys between the hills. This drainage network has carved out a patchwork of elevated plateaus and gentle slopes that vary in orientation and gradient throughout the municipality and surrounding areas.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Muzambinho would be the elevated plateau areas and ridge tops that offer relatively flat or gently sloping terrain. These elevated positions provide several advantages, including reduced shading from surrounding topographical features and excellent exposure to solar radiation throughout the day.

South-facing slopes with gradients between 5 and 15 degrees present particularly favorable conditions for solar panel installation, as they can be oriented to maximize solar exposure while still allowing for efficient drainage and maintenance access. The higher elevation areas also tend to have fewer obstructions from vegetation and buildings, creating cleaner sight lines to the sun's path across the sky.

Areas to the north and northeast of Muzambinho's urban center show promise for solar development, where the topography opens up into broader, more gently rolling terrain. These zones offer larger contiguous areas of suitable land that could accommodate utility-scale solar installations without the complications of steep slopes or narrow valley configurations.

The region's stable geological conditions and well-established transportation infrastructure make these elevated areas particularly attractive for solar development. Many of these locations already have access roads developed for agricultural purposes, which would facilitate construction and ongoing maintenance of solar installations. The combination of favorable topography, good accessibility, and minimal environmental constraints makes the Muzambinho region well-suited for significant solar energy development projects.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!

Citation Guide

Article Details for Citation

Tell Us About Your Work

We love seeing how our research helps others! If you've cited this article in your work, we'd be delighted to hear about it. Drop us a line via our Contact Us page or on X, to share where you've used our information - we may feature a link to your work on our site. This helps create a network of valuable resources for others in the solar energy community and helps us understand how our research is contributing to the field. Plus, we occasionally highlight exceptional works that reference our research on our social media channels.

Feeling generous?

Share this with your friends!

Compare this location to others worldwide for solar PV potential

The solar PV analyses available on our website, including this one, are offered as a free service to the global community. Our aim is to provide education and aid informed decision-making regarding solar PV installations.

However, please note that these analyses are general guidance and may not meet specific project requirements. For in-depth, tailored forecasts and analysis crucial for feasibility studies or when pursuing maximum ROI from your solar projects, feel free to contact us; we offer comprehensive consulting services expressly for this purpose.
