Nanuque, Minas Gerais, Brazil presents a highly favorable location for year-round solar PV energy generation. Located in the tropics at coordinates -17.7838, -40.5319, this region benefits from consistent sunlight throughout most of the year, with seasons characterized more by wet and dry periods rather than dramatic temperature variations.

Solar Energy Production Potential

The solar energy output at Nanuque demonstrates strong performance across all seasons. Summer delivers the highest production at 6.04kWh per day per kW of installed solar capacity, making it the peak generation period. Spring follows closely with 5.50kWh/day per kW, while autumn produces 5.55kWh/day per kW, showing remarkably consistent performance. Winter represents the lowest production period at 4.25kWh/day per kW, though this figure still indicates substantial energy generation potential. The seasonal variation is relatively modest, with winter production being approximately 30% lower than peak summer output. For optimal year-round performance, solar panels should be installed at a fixed tilt angle of 16 degrees facing north. This angle maximizes total annual energy production by accounting for the sun's path throughout the year and the location's specific latitude.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production in Nanuque. The tropical climate brings distinct wet and dry seasons, with the wet season likely coinciding with the lower winter production figures. During wet periods, increased cloud cover and frequent rainfall can reduce solar irradiance reaching the panels. High humidity levels typical of tropical regions can contribute to moisture-related issues, including potential corrosion of electrical components and reduced panel efficiency over time. The combination of heat and humidity may also accelerate wear on system components. Dust and debris accumulation on solar panels can be significant, particularly during dry seasons when vegetation dies back and wind carries more particulate matter. This buildup directly reduces the amount of sunlight reaching the photovoltaic cells.

Preventative Measures for Optimal Performance

Several installation strategies can help maintain high energy production despite these challenges:

• Install panels with adequate spacing and ventilation to prevent overheating and allow air circulation
• Use marine-grade or tropical-rated electrical components designed to withstand high humidity and temperature fluctuations
• Implement regular cleaning schedules, particularly during and after dry seasons
• Consider automated cleaning systems for larger installations
• Ensure proper drainage around panel installations to prevent water pooling

Proper system design should include robust mounting systems capable of withstanding potential severe weather events common to tropical regions. Investing in high-quality inverters and electrical components rated for harsh environmental conditions will help ensure long-term reliability and maintain energy production efficiency throughout the system's lifespan.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

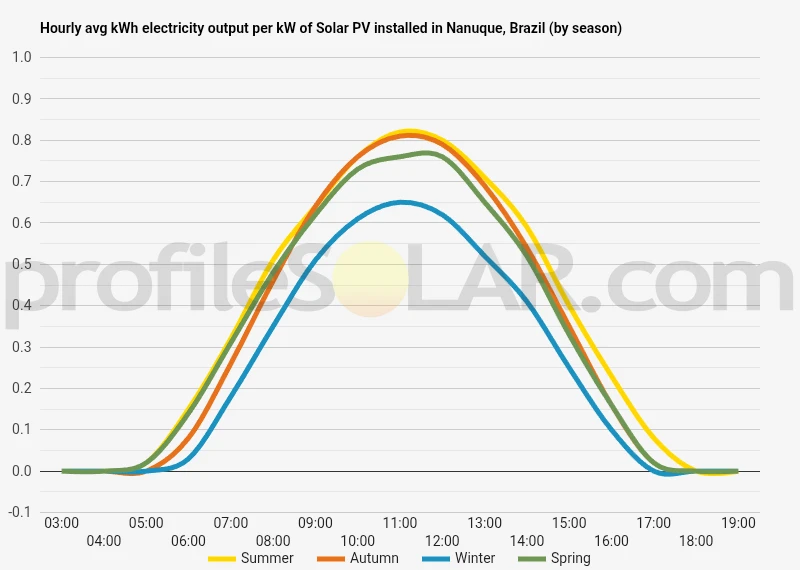

Solar output per kW of installed solar PV by season in Nanuque

Seasonal solar PV output for Latitude: -17.7838, Longitude: -40.5319 (Nanuque, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 16° North in Nanuque, Brazil

To maximize your solar PV system's energy output in Nanuque, Brazil (Lat/Long -17.7838, -40.5319) throughout the year, you should tilt your panels at an angle of 16° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Nanuque, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Nanuque, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 16° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
2° North in Summer	23° North in Autumn	33° North in Winter	12° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Nanuque, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Nanuque, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Nanuque, Brazil

Topographical Features of Nanuque Region

The topography around Nanuque in southeastern Minas Gerais presents a varied landscape characteristic of the Atlantic Forest region's transition zone. The terrain consists primarily of rolling hills and gentle slopes, with elevations ranging from approximately 200 to 600 meters above sea level. The area sits within the broader context of the Brazilian Highlands, where the ancient crystalline basement has been shaped by millions of years of erosion into a relatively subdued relief.

The immediate vicinity of Nanuque features undulating terrain with moderate slopes that rarely exceed 15 degrees. This topography is punctuated by small valleys carved by seasonal streams and tributaries that eventually drain toward the Atlantic coast. The landscape shows evidence of both natural weathering processes and human modification through agriculture and settlement over several centuries.

Moving inland from Nanuque toward the northwest, the terrain gradually rises into more pronounced hills and ridges. These elevated areas represent erosional remnants of harder rock formations that have resisted weathering better than the surrounding softer materials. Conversely, areas closer to the coast toward the southeast tend to become flatter and more suitable for large-scale development projects.

Optimal Areas for Large-Scale Solar Development

The most promising locations for extensive solar photovoltaic installations lie in the gently rolling terrain to the south and southeast of Nanuque. These areas offer several advantages including relatively flat topography that minimizes grading costs, good accessibility via existing road networks, and sufficient distance from sensitive ecological zones. The slopes in these directions are generally less than 5 degrees, making them ideal for solar array installation without extensive site preparation.

The elevated plateaus located approximately 15-25 kilometers northwest of the city center also present excellent opportunities for solar development. These areas benefit from their higher elevation, which typically provides better wind circulation for cooling solar panels and reduces the likelihood of fog or low-lying moisture that could affect performance. The terrain on these plateaus is relatively stable and well-drained, reducing concerns about seasonal flooding or soil instability.

Areas immediately adjacent to the existing transportation corridors, particularly along the BR-418 highway corridor, offer practical advantages for solar installations. The combination of accessible terrain, existing infrastructure, and proximity to electrical transmission lines makes these locations particularly attractive for utility-scale projects. The topography along these corridors is generally favorable, with gentle slopes and minimal vegetation clearing requirements.

The flatter agricultural areas that extend toward the neighboring municipalities of Carlos Chagas and Águas Formosas represent some of the most suitable terrain for large solar installations. These locations feature extensive cleared land with minimal slope variation, existing road access, and established connections to regional power infrastructure. The soil composition in these areas is typically well-consolidated, providing stable foundations for solar mounting systems without requiring extensive ground preparation.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
