Solar Energy Potential in Navegantes, Santa Catarina, Brazil

Navegantes, Santa Catarina, Brazil, located in the Southern Sub Tropics, offers a moderate to good location for solar PV energy generation throughout the year. The seasonal electricity output shows notable variations, with the highest production occurring during summer months and the lowest during winter. The seasonal solar energy production in Navegantes follows a clear pattern. Summer brings the highest energy yield at 6.11kWh per day for each kilowatt of installed capacity. Spring and autumn (fall) seasons offer similar moderate production levels at 4.49kWh/day and 4.40kWh/day respectively. Winter shows the lowest output at 3.26kWh/day per kilowatt of installed capacity.

Optimal Installation for Maximum Production

For fixed panel installations in Navegantes, Santa Catarina, the ideal tilt angle to maximize year-round solar energy production is 24 degrees facing North. This specific angle has been calculated to optimize solar collection throughout the year, accounting for the location's position in the Southern Hemisphere where north-facing panels receive the most sunlight. The substantial difference between summer and winter production (nearly 3kWh/day per installed kilowatt) indicates that Navegantes experiences significant seasonal variation. This makes the correct panel angle particularly important for balancing energy production throughout the year.

Environmental and Weather Considerations

Several environmental factors could potentially impact solar production in Navegantes:

• High humidity levels typical of subtropical coastal areas can reduce panel efficiency through increased cloud cover and moisture accumulation on panels
• Coastal salt spray may accelerate corrosion of mounting hardware and electrical connections
• Seasonal rainfall patterns, particularly during the subtropical summer, may reduce solar production during what would otherwise be peak generation periods

To mitigate these challenges, solar installations in Navegantes should incorporate corrosion-resistant materials suitable for coastal environments. Regular cleaning schedules should be implemented to remove salt deposits and other debris. Additionally, using microinverters or power optimizers can help minimize production losses during partial shading from cloud cover. Despite these considerations, the average daily production values indicate that Navegantes remains a viable location for solar PV installations, with annual average daily production of approximately 4.57kWh per kilowatt installed, making solar energy a worthwhile investment for this Brazilian coastal city.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

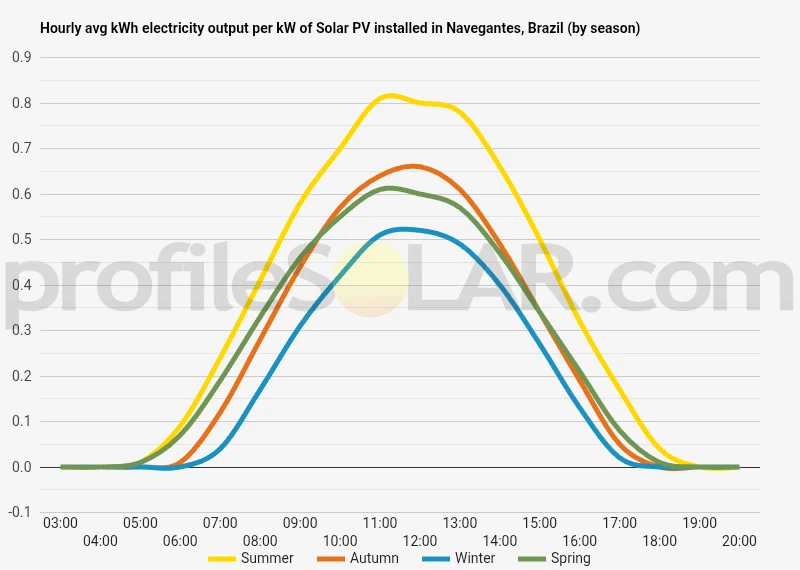

Solar output per kW of installed solar PV by season in Navegantes

Seasonal solar PV output for Latitude: -26.8168, Longitude: -48.7391 (Navegantes, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° North in Navegantes, Brazil

To maximize your solar PV system's energy output in Navegantes, Brazil (Lat/Long -26.8168, -48.7391) throughout the year, you should tilt your panels at an angle of 24° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Navegantes, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Navegantes, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
11° North in Summer	32° North in Autumn	43° North in Winter	19° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Navegantes, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Navegantes, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Navegantes, Brazil

The topography around Navegantes, Brazil presents a diverse landscape characterized by coastal plains transitioning to mountainous terrain. Located in the state of Santa Catarina along the southern Brazilian coastline, Navegantes sits at the mouth of the Itajaí-Açu River where it meets the Atlantic Ocean. The immediate coastal area consists primarily of flat, sandy terrain with minimal elevation changes, typical of a coastal plain environment. Moving inland from the coast, the landscape gradually rises into rolling hills before eventually reaching the more dramatic elevations of the Serra do Mar mountain range, which runs parallel to much of Brazil's southeastern coast. This mountain range forms part of the Great Escarpment that separates the coastal plains from the Brazilian Highlands further inland. The Serra do Mar features steep slopes, with numerous valleys and ridges creating a complex topographical pattern.

Coastal Plain Features

The coastal plain around Navegantes is characterized by low-lying, flat terrain that extends several kilometers inland. This area includes beaches, coastal dunes, and wetland ecosystems associated with the Itajaí-Açu River delta. The soil composition in this region tends to be sandy and somewhat less stable for large construction projects, though it offers the advantage of being relatively unobstructed in terms of solar exposure.

Transitional Zones

Between the coastal plains and the mountain ranges lie transitional zones of increasing elevation. These areas feature rolling hills and plateaus that gradually rise from near sea level to elevations of 100-300 meters. The terrain in these transitional zones is more varied than the coastal plain but less rugged than the mountains, offering moderate slopes and broader valleys.

Serra do Mar Highlands

Further inland, the Serra do Mar mountain range dominates the landscape with elevations reaching over 900 meters in some areas near Navegantes. The mountains feature steep slopes, dense vegetation (primarily Atlantic Forest), and numerous stream valleys. These highlands create significant topographical barriers and can generate localized weather patterns that affect cloud cover and precipitation.

Solar PV Suitability Assessment

For large-scale solar photovoltaic installations, the most suitable areas near Navegantes would be found in the transitional zones between the coastal plains and the mountains. These areas offer several advantages: The gently rolling hills of the transitional zone provide relatively flat expanses that minimize the need for extensive land grading while still offering good solar exposure. These areas typically lie between 5-20 kilometers inland from Navegantes, where the terrain begins to rise but before reaching the steeper mountain slopes. The elevated plateaus found in this transitional zone benefit from reduced fog exposure compared to the immediate coastal areas, where morning fog can be common. These plateaus often feature clearer atmospheric conditions while still being accessible for infrastructure development. Areas to the west of Navegantes, particularly in the broader Itajaí Valley beyond the immediate coastal influence but before the steeper mountain terrain, offer promising locations. These regions typically have better soil stability than the sandy coastal plains while maintaining good solar exposure throughout the day. The northwestern sectors beyond Navegantes, where the terrain opens up into wider valleys before the main Serra do Mar escarpment, present particularly favorable conditions. These areas combine reasonable accessibility with reduced cloud formation patterns compared to the higher mountain slopes, where orographic cloud development can be more frequent. The immediate coastal plain, while flat, may be less ideal due to higher land values, greater fog occurrence, potential flood risks, and competing urban development pressures. Similarly, the steeper mountain slopes of the Serra do Mar, despite their elevation, present challenges related to difficult access, construction complexity, and increased cloud cover due to orographic lifting effects.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
