São Pedro, Brazil, located in a tropical region where sunlight remains fairly consistent year-round, offers good potential for solar energy generation with some seasonal variation to consider.

Seasonal Solar Performance

The solar energy output at this location shows clear seasonal patterns. Summer delivers the highest production at 6.39 kWh per day per kW of installed solar capacity, making it the peak season for solar generation. Spring follows as the second-best season with 4.90 kWh per day, while autumn provides 5.19 kWh per day. Winter represents the lowest production period at 4.24 kWh per day per kW installed. For optimal year-round performance, solar panels should be installed at a fixed tilt angle of 21 degrees facing north. This angle maximizes total annual solar output by accounting for the sun's path throughout the year and the location's specific latitude.

Environmental and Weather Challenges

Several local factors could impact solar energy production at São Pedro and require careful consideration during installation:

• Tropical humidity and moisture: High humidity levels can cause condensation on panels and promote corrosion of electrical components
• Heavy rainfall during wet seasons: While rain can help clean panels, intense tropical downpours may cause temporary shading and potential flooding issues
• Vegetation growth: The tropical climate encourages rapid plant growth that could create shading problems over time
• Salt air exposure: Depending on proximity to the coast, salt corrosion may affect metal components

Preventative Installation Measures

To maximize solar production despite these challenges, several protective measures should be implemented. Choose marine-grade or tropical-rated equipment specifically designed to withstand high humidity and potential salt exposure. Ensure proper drainage around ground-mounted systems and elevate electrical components above potential flood levels. Install panels with adequate spacing to promote air circulation and reduce moisture buildup. Regular vegetation management around the solar installation prevents shading issues from developing. Consider anti-reflective coatings that also repel water and dirt to maintain panel efficiency during heavy rain periods. Implement a maintenance schedule that includes regular cleaning and inspection, particularly after severe weather events. Use corrosion-resistant mounting hardware and ensure all electrical connections are properly sealed against moisture intrusion.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

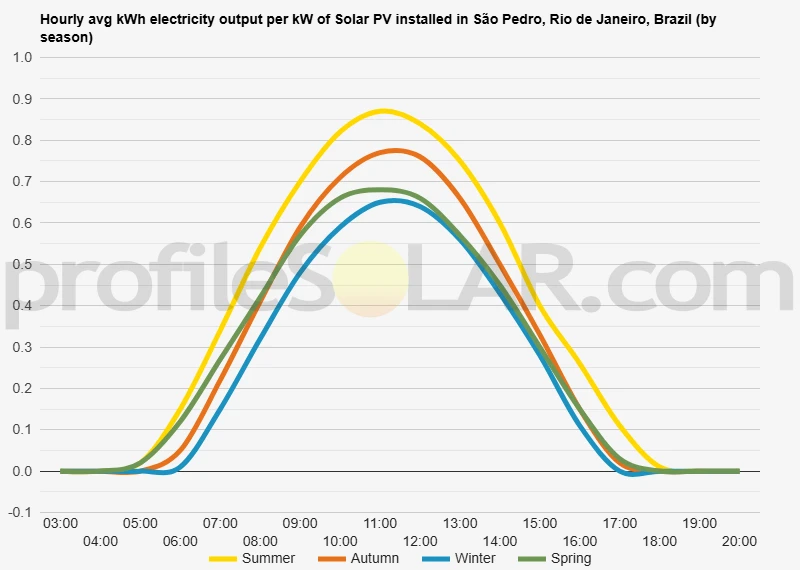

Solar output per kW of installed solar PV by season in São Pedro, Rio de Janeiro

Seasonal solar PV output for Latitude: -22.4231, Longitude: -42.9661 (São Pedro, Rio de Janeiro, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in São Pedro, Rio de Janeiro, Brazil

To maximize your solar PV system's energy output in São Pedro, Rio de Janeiro, Brazil (Lat/Long -22.4231, -42.9661) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for São Pedro, Rio de Janeiro, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in São Pedro, Rio de Janeiro, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° North in Summer	28° North in Autumn	38° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in São Pedro, Rio de Janeiro, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in São Pedro, Rio de Janeiro, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around São Pedro, Rio de Janeiro, Brazil

Topographical Features of São Pedro Region

São Pedro sits within the mountainous terrain of Rio de Janeiro state, positioned in the Serra dos Órgãos region where the Atlantic coastal mountains create a dramatic and varied landscape. The area is characterized by steep ridges, deep valleys, and undulating hills that rise sharply from the coastal lowlands toward the interior highlands. This rugged topography presents both opportunities and challenges for large-scale development projects.

The immediate vicinity around São Pedro features a mix of forested hillsides and cleared agricultural land, with elevations varying significantly across short distances. Rocky outcroppings and granite formations are common throughout the region, remnants of ancient geological processes that shaped this part of the Brazilian Shield. Many areas display steep gradients that would require significant earthwork for major construction projects.

Climate and Environmental Considerations

The regional climate is influenced heavily by the mountainous topography, which creates localized weather patterns and microclimates. The elevation changes contribute to varying precipitation levels across different areas, with higher elevations typically receiving more rainfall than lower-lying zones. Morning fog and cloud cover are common phenomena in the valleys and lower elevations, particularly during certain seasons.

Dense Atlantic Forest remnants cover much of the steeper terrain, while agricultural activities have cleared flatter areas for farming and pasture. The combination of elevation, aspect, and local weather patterns creates distinct zones with different vegetation types and land use patterns across the landscape.

Optimal Areas for Large-Scale Solar Development

For large-scale solar photovoltaic installations, the most suitable areas would be the relatively flat agricultural lands and cleared pasturelands found in the broader valleys and gentler slopes throughout the region. These areas offer several advantages including easier access for construction equipment, reduced site preparation costs, and more straightforward installation processes compared to steep terrain.

The elevated plateaus and ridge tops, where they exist with sufficient flat area, could also present excellent opportunities for solar development. These locations benefit from reduced atmospheric interference and typically experience less morning fog compared to valley locations. However, access and infrastructure development costs would need careful consideration.

Areas with southern-facing slopes at moderate gradients could be viable with appropriate mounting systems, though the increased complexity and cost of installation on sloped terrain would need to be weighed against other factors. The key consideration is finding locations that balance favorable solar exposure conditions with practical construction and maintenance requirements.

Existing cleared agricultural land would likely present the most cost-effective development opportunities, as environmental permitting processes would typically be less complex compared to forested areas. The proximity to existing road networks and electrical infrastructure would also be crucial factors in site selection for any major solar installation in this mountainous region.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
