Mundo Novo, Brazil presents an excellent location for year-round solar energy generation, with consistently strong solar output throughout all seasons due to its tropical positioning.

Solar Energy Performance

The solar energy output at this location demonstrates remarkable consistency across the year. Spring delivers the highest production at 6.17 kWh per day per installed kilowatt, closely followed by summer at 6.02 kWh per day. Even during the lowest-performing season of winter, the location still generates a respectable 4.75 kWh per day per kilowatt, while autumn maintains strong output at 5.93 kWh per day. This performance pattern makes Mundo Novo particularly attractive for solar installations, as the seasonal variation is relatively modest compared to locations at higher latitudes. The best solar generation periods occur during spring and summer months, though the location maintains viable production year-round.

Optimal Panel Configuration

For maximum energy production at this location, solar panels should be installed at a fixed tilt angle of 11 degrees facing north. This relatively shallow angle reflects the location's proximity to the equator and helps optimize solar collection throughout the entire year rather than favoring any particular season.

Local Environmental Factors

Several environmental factors in this tropical Brazilian location could potentially impact solar energy production:

• High humidity levels typical of tropical climates can reduce solar panel efficiency
• Frequent rainfall during wet seasons may temporarily reduce solar output
• Dust and debris accumulation on panels, particularly during dry periods
• Potential for severe weather events including heavy storms

Preventative Measures for Optimal Performance

To maximize solar energy production despite these challenges, several installation strategies prove beneficial:

• Install panels with adequate ventilation spacing to reduce heat buildup from high humidity
• Implement regular cleaning schedules to remove dust, pollen, and debris
• Use high-quality mounting systems designed to withstand tropical weather conditions
• Consider anti-reflective coatings that perform well in high-humidity environments
• Ensure proper drainage around installations to prevent water accumulation

Despite these considerations, the consistently high solar output throughout the year makes Mundo Novo an highly suitable location for solar energy generation, with proper installation techniques easily addressing most environmental challenges.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

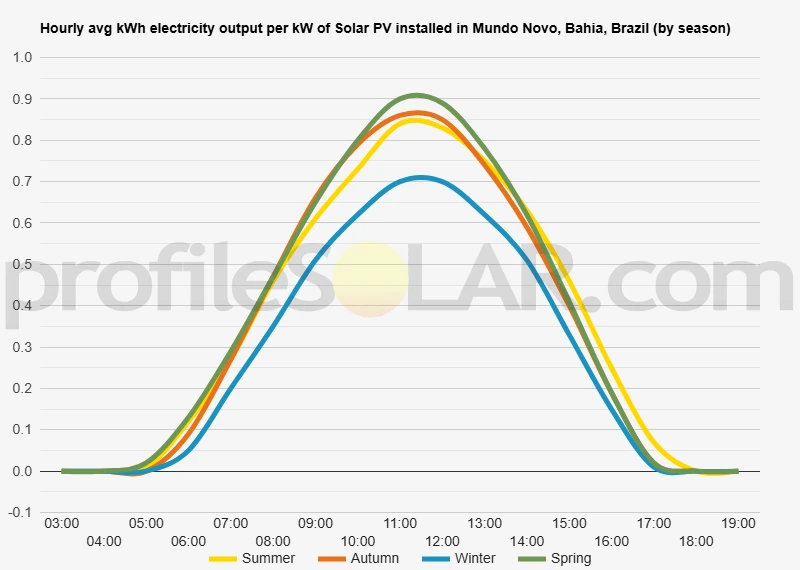

Solar output per kW of installed solar PV by season in Mundo Novo, Bahia

Seasonal solar PV output for Latitude: -11.9189, Longitude: -40.5245 (Mundo Novo, Bahia, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 11° North in Mundo Novo, Bahia, Brazil

To maximize your solar PV system's energy output in Mundo Novo, Bahia, Brazil (Lat/Long -11.9189, -40.5245) throughout the year, you should tilt your panels at an angle of 11° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Mundo Novo, Bahia, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Mundo Novo, Bahia, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 11° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
4° South in Summer	18° North in Autumn	27° North in Winter	6° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Mundo Novo, Bahia, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Mundo Novo, Bahia, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Mundo Novo, Bahia, Brazil

Topographical Features of the Mundo Novo Region

Mundo Novo is situated in the interior of Bahia state, within Brazil's semi-arid region known as the Caatinga. The landscape around this municipality is characterized by gently rolling hills and broad, relatively flat plateaus that are typical of the Brazilian Northeast's inland areas. The terrain generally sits at moderate elevations, creating a landscape that undulates softly rather than presenting dramatic changes in altitude.

The region forms part of the larger Chapada Diamantina geological formation, though Mundo Novo itself lies on the eastern edges of this highland area. The topography consists primarily of ancient crystalline rock formations that have been weathered over millions of years, creating a surface that alternates between low hills and expansive flat areas. These geological features result in excellent drainage characteristics, with water naturally flowing toward lower elevations without creating significant erosion problems.

The surrounding countryside is dotted with occasional inselbergs - isolated rocky outcrops that rise abruptly from the otherwise gentle terrain. These formations, while visually striking, occupy relatively small areas and do not significantly impact the overall suitability of the landscape for large-scale development projects. The soil composition varies from sandy to clay-rich depending on location, with many areas featuring the reddish soils typical of Brazil's semi-arid regions.

Optimal Areas for Large-Scale Solar Development

The expansive flat to gently sloping areas extending northeast and southeast of Mundo Novo present the most promising opportunities for large-scale solar photovoltaic installations. These zones benefit from minimal topographical obstacles and provide the consistent, unobstructed terrain that utility-scale solar projects require for efficient panel placement and maintenance access.

Particularly favorable are the broad plateau areas that stretch toward the neighboring municipalities, where the landscape maintains gentle gradients of less than five degrees. These areas offer natural advantages including excellent drainage during the rainy season, stable soil conditions for foundation work, and minimal shading from topographical features throughout the day.

The slightly elevated plateaus also provide practical benefits for solar installations, as they typically experience better air circulation than lower-lying areas. This natural ventilation helps maintain optimal operating temperatures for photovoltaic panels, while the stable geological foundation reduces long-term maintenance concerns related to ground movement or settling.

Areas to avoid for large-scale solar development include the steeper hillsides scattered throughout the region and the narrow valleys that occasionally cut through the landscape. While these features add visual interest to the terrain, they present challenges for solar installations including increased construction costs, potential shading issues, and difficulties with equipment access and maintenance operations.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
