Nova Campina, São Paulo, Brazil, located in the Southern Sub Tropics, offers reasonably good conditions for year-round solar energy generation, though with notable seasonal variations that potential solar installers should understand.

Seasonal Solar Performance

The location shows strong summer performance with 5.95 kWh per day per kW of installed solar capacity, making December through February the peak production months. Spring delivers solid output at 4.79 kWh/day per kW, while autumn drops to 4.54 kWh/day per kW. Winter presents the lowest production period at 3.70 kWh/day per kW, representing a significant 38% decrease from summer peak performance. For optimal year-round energy capture, fixed solar panels should be tilted at 22 degrees facing north. This angle maximizes total annual production by accounting for the sun's path throughout the year and the location's specific latitude.

Local Environmental Challenges

Several environmental factors in Nova Campina can impact solar energy production:

• High humidity levels typical of subtropical regions can lead to increased dust and debris accumulation on panels
• Seasonal rainfall patterns may create periods of reduced solar irradiance during cloudy weather
• Potential for hail storms during certain seasons could damage panels
• Dense vegetation growth in the subtropical climate may create shading issues if not properly managed

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies prove effective. Regular cleaning systems or easy-access panel mounting can help combat humidity-related debris buildup. Installing panels with adequate spacing allows for proper air circulation, reducing moisture-related issues. Protective measures against hail damage include selecting panels with higher impact resistance ratings and considering protective screening systems. Careful site selection away from large trees and ongoing vegetation management around the installation site prevents shading losses. Overall, Nova Campina represents a moderately favorable location for solar energy generation, with strong summer performance offsetting lower winter output, provided proper installation techniques address the subtropical environmental challenges.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

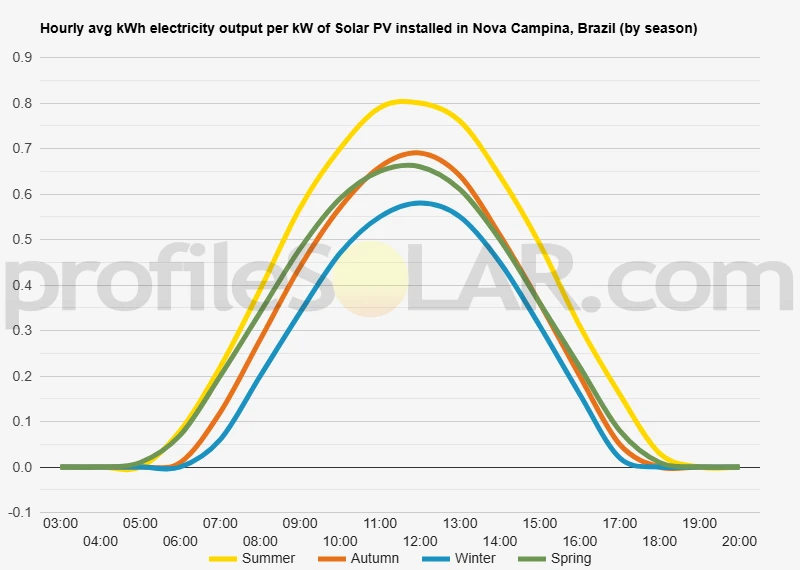

Solar output per kW of installed solar PV by season in Nova Campina

Seasonal solar PV output for Latitude: -24.2092, Longitude: -48.9846 (Nova Campina, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 22° North in Nova Campina, Brazil

To maximize your solar PV system's energy output in Nova Campina, Brazil (Lat/Long -24.2092, -48.9846) throughout the year, you should tilt your panels at an angle of 22° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Nova Campina, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Nova Campina, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 22° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
8° North in Summer	30° North in Autumn	40° North in Winter	17° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Nova Campina, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Nova Campina, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Nova Campina, Brazil

Topographical Features of Nova Campina Region

Nova Campina sits within the Serra de Paranapiacaba mountain range in southern São Paulo state, Brazil. This area forms part of the broader Atlantic Plateau system that characterizes much of southeastern Brazil's interior landscape. The terrain around Nova Campina features rolling hills and moderate elevations, with the municipality positioned at approximately 650 meters above sea level. The local topography consists primarily of undulating highlands interspersed with river valleys carved by tributaries of the Paranapanema River system. These waterways have created a landscape of rounded hilltops separated by relatively gentle valleys, though some areas display steeper slopes where water erosion has been more pronounced over geological time. The region's elevation provides natural drainage advantages, with most areas experiencing good water runoff during the rainy season. The terrain generally slopes toward the northwest, following the natural watershed patterns that eventually feed into the Paraná River basin. This gradual sloping creates numerous south-facing and west-facing slopes that receive extended exposure to solar radiation throughout the day.

Soil Composition and Land Use Patterns

The soils around Nova Campina are predominantly latosols and cambisols, typical of the Atlantic Plateau region. These well-drained soils support both agricultural activities and natural vegetation. Much of the surrounding landscape has been modified for cattle ranching and crop cultivation, particularly soybeans, corn, and pasture grasses. The area retains patches of Atlantic Forest remnants, primarily along steeper slopes and in areas less suitable for agriculture. These forested zones tend to occur in the deeper valleys and on the most precipitous hillsides where mechanized farming becomes impractical.

Climate and Weather Patterns

Nova Campina experiences a humid subtropical climate characterized by distinct wet and dry seasons. The elevated position moderates temperatures compared to lower-lying areas, creating generally pleasant conditions throughout the year. The region receives substantial rainfall during the summer months, while winter tends to be drier with clearer skies. The topographical position provides some protection from extreme weather events, though the area can experience occasional frost during winter months due to its elevation and inland location. Wind patterns are generally moderate, influenced by the surrounding hill systems and the broader continental weather patterns of southeastern Brazil.

Optimal Locations for Large-Scale Solar Development

The most suitable areas for large-scale solar photovoltaic installations around Nova Campina would be the extensive pasturelands and agricultural areas situated on the gentler slopes and hilltops. These locations offer several advantages including relatively flat terrain that minimizes installation costs, existing road access for construction and maintenance, and minimal environmental impact since they avoid forested areas. The rolling hills with south-facing and southwest-facing slopes present particularly attractive opportunities for solar development. These orientations maximize solar exposure while the moderate slopes provide natural drainage and reduce the risk of water accumulation around installations. The elevated positions also benefit from good air circulation, which helps maintain optimal operating temperatures for photovoltaic panels. Areas currently used for extensive cattle ranching represent the most promising sites, as these lands typically have fewer obstacles, established access routes, and lower land acquisition costs compared to prime agricultural zones. The existing cleared pasturelands require minimal site preparation, reducing both environmental impact and development expenses. The proximity to existing electrical infrastructure along major roads connecting Nova Campina to larger population centers provides additional advantages for grid connection. Several plateau areas within a 20-kilometer radius of the town center offer sufficient flat or gently sloping terrain to accommodate utility-scale solar installations while maintaining appropriate distances from sensitive ecological areas and residential zones.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
