Nova Castilho, São Paulo, Brazil presents a favorable location for year-round solar photovoltaic energy generation, with its tropical positioning delivering consistent sunlight patterns throughout most of the year.

Solar Energy Production Potential

The location demonstrates strong solar energy output across all seasons, with summer delivering the highest production at 6.98 kWh per day per kW of installed solar capacity. Spring follows closely with 6.56 kWh/day, while autumn produces 5.86 kWh/day. Even during the lowest-producing season of winter, the location still generates a respectable 5.10 kWh/day per kW installed. For optimal year-round energy capture, solar panels should be installed at a fixed tilt angle of 19 degrees facing north. This angle maximizes total annual production by accounting for the sun's varying elevation throughout the year and weighting these angles against actual solar irradiance data.

Seasonal Performance Characteristics

Summer and spring represent the peak solar generation periods at this location, making these seasons ideal for maximizing energy production. The relatively modest drop in winter production indicates that Nova Castilho maintains viable solar generation capabilities throughout the year, which is typical for tropical locations where seasonal variations are less extreme than in temperate climates.

Environmental and Weather Considerations

Several local factors could potentially impact solar production efficiency at this Brazilian location:

• High humidity levels typical of tropical climates can reduce panel efficiency and promote corrosion of electrical components
• Intense tropical rainfall during wet seasons may cause temporary production drops and could damage improperly sealed installations
• Elevated temperatures can decrease photovoltaic panel efficiency, as solar cells perform less effectively in extreme heat
• Dust and debris accumulation during dry periods can significantly reduce light transmission to solar cells

Recommended Preventative Measures

To ensure optimal solar energy production despite these challenges, several installation strategies should be implemented. Proper ventilation spacing beneath panels helps maintain cooler operating temperatures and improves efficiency. Using marine-grade electrical components and ensuring excellent waterproof sealing protects against humidity and moisture damage. Regular cleaning schedules become essential, particularly during dry seasons when dust accumulation peaks. Installing panels with adequate drainage and avoiding completely flat installations helps prevent water pooling during heavy rains. Choosing high-quality panels rated for tropical conditions and extreme temperatures will provide better long-term performance and durability. Professional installation with proper grounding and surge protection is crucial given the potential for intense tropical storms and lightning activity common in Brazilian tropical regions.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

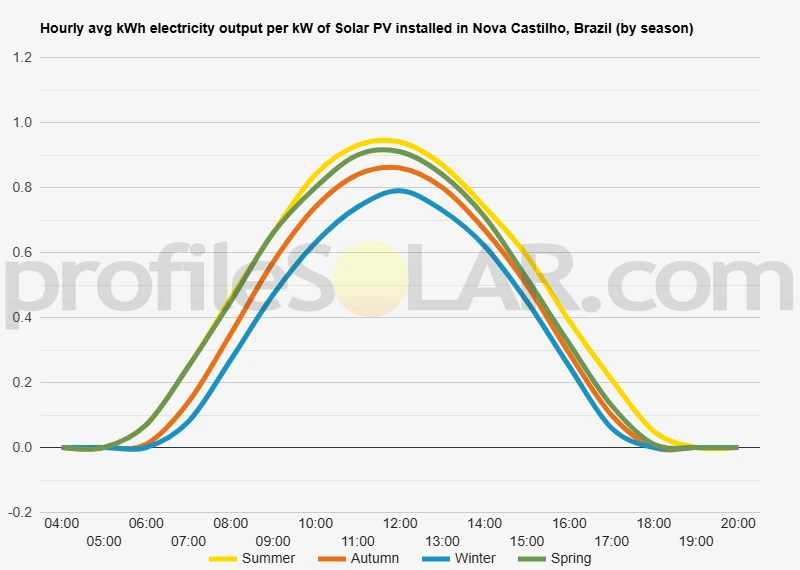

Solar output per kW of installed solar PV by season in Nova Castilho

Seasonal solar PV output for Latitude: -20.7847, Longitude: -50.3493 (Nova Castilho, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 19° North in Nova Castilho, Brazil

To maximize your solar PV system's energy output in Nova Castilho, Brazil (Lat/Long -20.7847, -50.3493) throughout the year, you should tilt your panels at an angle of 19° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Nova Castilho, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Nova Castilho, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° North in Summer	26° North in Autumn	36° North in Winter	14° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Nova Castilho, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Nova Castilho, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Nova Castilho, Brazil

Topographical Features of Nova Castilho

Nova Castilho sits in the western portion of São Paulo state, Brazil, within a region characterized by gently rolling hills and relatively modest elevation changes. The landscape around this municipality features the typical topography of Brazil's interior plateau region, with elevations ranging from approximately 350 to 450 meters above sea level. The terrain consists primarily of undulating plains with occasional low hills and shallow valleys carved by seasonal watercourses. The area exhibits the classic features of the Brazilian Planalto, where ancient geological formations have been weathered over millions of years to create a landscape of gentle slopes and broad, open spaces. The topography is generally favorable for development, with gradients that are neither too steep nor too flat, allowing for adequate drainage while maintaining accessibility for construction and maintenance activities.

Drainage and Water Features

The region's drainage patterns follow the gentle contours of the land, with small streams and seasonal watercourses flowing through shallow valleys. These waterways typically flow in a northwestern direction, eventually contributing to larger river systems. The relatively low relief means that water movement is gradual, and flooding risks are generally minimal except in the immediate vicinity of the main drainage channels. The landscape shows evidence of both natural drainage patterns and human modification through agriculture and rural development. Small reservoirs and farm ponds dot the countryside, created to support local agricultural activities and livestock watering needs.

Soil and Surface Conditions

The surface geology consists primarily of sedimentary rocks and weathered materials that have created deep, well-drained soils typical of the São Paulo interior. These soils are generally stable and suitable for supporting infrastructure, though they may require standard engineering considerations for foundation work. The relatively flat to gently rolling terrain means that soil erosion is typically not a major concern, especially in areas with adequate vegetation cover.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Nova Castilho would be the broad, gently sloping plateaus that extend across much of the surrounding landscape. These areas offer several advantages including stable ground conditions, minimal grading requirements, and excellent accessibility for construction and maintenance vehicles. The slightly elevated plateau areas to the north and east of the municipality center would be particularly well-suited for solar development. These locations provide gentle south-facing slopes that would optimize solar panel orientation while maintaining good drainage characteristics. The terrain in these areas is sufficiently flat to minimize earthwork requirements while offering enough slope to prevent water accumulation. Areas with slopes between 2 and 8 degrees would be ideal, as they provide natural drainage benefits while remaining gentle enough for efficient panel installation and maintenance access. The open agricultural lands that currently dominate much of the surrounding landscape could potentially be converted to solar use, particularly in areas where the soil quality or water availability makes farming less profitable. The western approaches to Nova Castilho also present excellent opportunities, where the topography opens into broader plains with minimal elevation variation. These areas would allow for large, continuous solar installations with simplified electrical infrastructure and reduced shading concerns between panel arrays. Locations to avoid would include the immediate drainage valleys and areas with steeper slopes exceeding 15 degrees, though such challenging terrain is relatively uncommon in this region. The gentle nature of the local topography means that most of the surrounding landscape could technically accommodate solar development, with site selection depending more on factors such as grid connectivity, land availability, and local zoning considerations rather than topographical constraints.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
