Nova Cruz, Rio Grande do Norte, Brazil represents a highly favorable location for year-round solar photovoltaic energy generation. This tropical location benefits from consistent sunlight throughout most of the year, with seasons characterized more by wet and dry periods rather than the dramatic temperature variations seen in temperate climates.

Solar Energy Production Performance

The solar energy output data for Nova Cruz demonstrates excellent year-round performance. Spring emerges as the peak season with 7.14 kWh per day per kW of installed solar capacity, followed by summer at 6.36 kWh/day. Autumn maintains strong production at 5.95 kWh/day, while winter shows the lowest but still respectable output of 5.41 kWh/day per kW installed. This seasonal variation of only 1.73 kWh between the highest and lowest producing seasons indicates remarkably stable solar conditions throughout the year. The consistently high output across all seasons makes Nova Cruz an ideal location for solar installations that require reliable energy generation year-round.

Optimal Panel Configuration

For maximum year-round solar production at Nova Cruz, Rio Grande do Norte, fixed solar panels should be tilted at 6 degrees facing north. This optimal angle is calculated by analyzing daily solar elevation angles at this latitude, determining optimal panel tilts for each day, and weighting these angles by daily photovoltaic potential using solar irradiance data while accounting for Earth's elliptical orbit.

Environmental and Weather Challenges

Despite the excellent solar conditions, several local factors could potentially impact solar energy production in Nova Cruz and require careful consideration during installation. The tropical climate brings intense seasonal rainfall during wet periods, which can reduce solar output through cloud cover and atmospheric moisture. Heavy rains can also deposit dirt, dust, and organic matter on solar panels, creating a film that blocks sunlight from reaching the photovoltaic cells. High humidity levels throughout much of the year can lead to moisture infiltration in electrical components and connections, potentially causing corrosion and system failures over time. The combination of heat and humidity also accelerates the degradation of certain solar panel materials and mounting hardware. Dust accumulation presents another significant challenge, particularly during drier periods when winds can carry fine particles that settle on panel surfaces. In agricultural areas surrounding Nova Cruz, Rio Grande do Norte, seasonal burning of crops or vegetation can create additional airborne particles that coat solar installations.

Preventative Measures for Optimal Performance

Several installation strategies can help mitigate these environmental challenges and ensure maximum energy production:

• Install panels with adequate spacing and ventilation underneath to promote air circulation and reduce heat buildup
• Use high-quality weatherproof electrical enclosures and connections rated for tropical conditions
• Apply anti-reflective and hydrophobic coatings to panel surfaces to help rain wash away dust and debris naturally
• Design mounting systems with appropriate drainage to prevent water pooling around installation hardware
• Implement regular cleaning schedules, particularly before and after rainy seasons

Proper system design should also include surge protection and grounding systems appropriate for areas that may experience intense thunderstorms during wet seasons. Selecting solar panels and inverters specifically rated for high-temperature and high-humidity environments will ensure longer system life and maintained performance. Regular maintenance becomes particularly important in Nova Cruz's climate, with quarterly inspections recommended to check for moisture infiltration, clean panels as needed, and verify that all electrical connections remain secure and corrosion-free.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

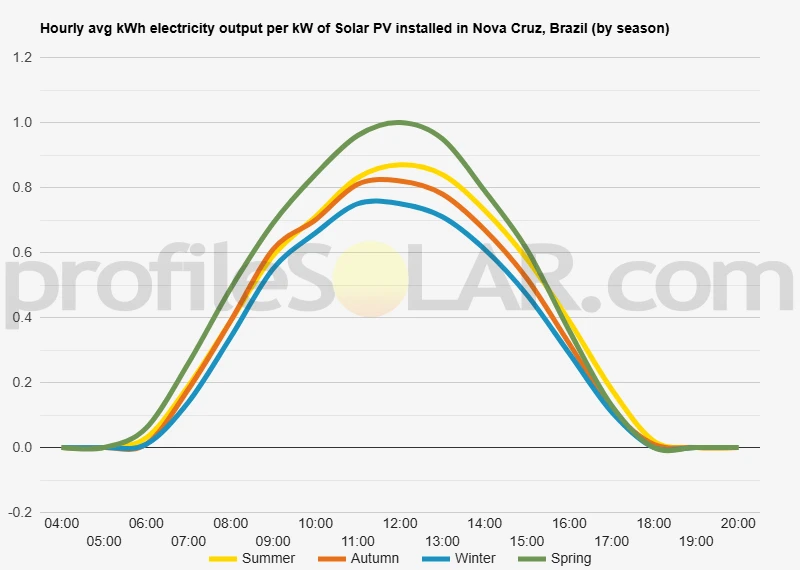

Solar output per kW of installed solar PV by season in Nova Cruz

Seasonal solar PV output for Latitude: -6.4702, Longitude: -35.4545 (Nova Cruz, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 6° North in Nova Cruz, Brazil

To maximize your solar PV system's energy output in Nova Cruz, Brazil (Lat/Long -6.4702, -35.4545) throughout the year, you should tilt your panels at an angle of 6° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Nova Cruz, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Nova Cruz, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 6° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
9° South in Summer	12° North in Autumn	22° North in Winter	0° in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Nova Cruz, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Nova Cruz, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Nova Cruz, Brazil

Topographical Features of Nova Cruz

Nova Cruz is situated in the interior of Rio Grande do Norte state in northeastern Brazil, positioned on the gently undulating terrain characteristic of the Brazilian Northeast's semi-arid region. The landscape around this municipality features predominantly flat to slightly rolling plains with elevations ranging from approximately 100 to 300 meters above sea level. The topography is part of the broader Borborema Plateau system, which creates a relatively stable geological foundation with gradual slopes and occasional low hills. The terrain consists mainly of crystalline basement rock formations covered by thin soils typical of the Caatinga biome. These geological characteristics have resulted in a landscape of gentle ridges and shallow valleys, with no significant mountainous features that would create substantial shadows or wind barriers. The area experiences minimal topographical variation, making it generally accessible for large-scale infrastructure development.

Drainage and Water Features

The region's drainage system is composed primarily of intermittent streams and seasonal watercourses that flow during the rainy season. These waterways have carved shallow valleys into the landscape, creating subtle undulations in the otherwise relatively flat terrain. The Trairi River system influences the eastern portions of the area, while smaller tributaries create a dendritic drainage pattern throughout the region. During dry periods, many of these watercourses become dry beds, leaving behind sandy or rocky channels that wind through the landscape. The presence of these seasonal water features means that certain low-lying areas may experience temporary flooding during intense rainfall events, though the generally well-drained nature of the terrain prevents prolonged water accumulation in most locations.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be the elevated plateaus and gentle slopes found to the north and west of Nova Cruz. These areas offer several advantages including stable, well-drained ground conditions and minimal risk of seasonal flooding. The slightly elevated terrain provides natural drainage while maintaining the flat to gently sloping characteristics ideal for solar panel arrays. The crystalline bedrock foundation in these areas offers excellent stability for mounting systems and infrastructure development. The sparse vegetation typical of the Caatinga biome means that land clearing requirements would be relatively minimal, and the absence of significant tree cover eliminates concerns about shading from existing vegetation. Areas with south-facing gentle slopes of less than 5% grade would be particularly advantageous, as they could optimize panel orientation while maintaining cost-effective installation procedures. The stable geological conditions and good accessibility via existing rural road networks make these elevated plains highly suitable for large-scale solar development.

Areas to Avoid

The seasonal floodplains and drainage channels should be avoided for solar installations due to the risk of equipment damage during heavy rainfall periods. Low-lying areas near the intermittent watercourses may experience temporary inundation and would require additional infrastructure investment to ensure proper drainage and equipment protection. Rocky outcrops and areas with significant surface stone coverage, while geologically stable, would require additional site preparation costs and may present challenges for standard mounting systems. These areas are generally limited in extent but should be identified and avoided during site selection to optimize development costs and installation efficiency.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.
