Solar Energy Potential in Nova Friburgo, Brazil

Nova Friburgo, Brazil, located at -22.3355, -42.4967, offers a reasonably favorable location for solar PV energy generation throughout the year, though with notable seasonal variations. This mountainous region in the state of Rio de Janeiro experiences consistent tropical sunlight patterns but with some important fluctuations across seasons. The solar energy production potential shows a clear seasonal pattern, with summer months (December-February) being the most productive at 6.37kWh per day for each kilowatt of installed capacity. This gradually decreases through autumn (5.18kWh/day), reaching the lowest output during winter months (4.23kWh/day), before beginning to recover in spring (4.90kWh/day). For anyone considering a fixed solar panel installation in Nova Friburgo, the ideal tilt angle to maximize year-round energy production is 20 degrees facing North. This specific angle optimizes solar capture across seasonal variations, accounting for the location's position in the Southern Hemisphere.

Environmental and Weather Considerations

Several significant environmental factors could impact solar energy production in Nova Friburgo:

• The region's mountainous terrain can create localized shading issues, particularly during winter months when the sun's path is lower in the northern sky.
• Nova Friburgo is known for its cloud cover and rainfall, especially during the summer wet season (December-March), which can temporarily reduce solar output despite this being the period with highest potential.
• The area occasionally experiences heavy fog in valley locations, which can significantly diminish morning solar production.
• Dust and pollen accumulation is common due to the surrounding vegetation, potentially reducing panel efficiency.

Preventative Measures for Installation

To maximize solar energy production in Nova Friburgo despite these challenges, several preventative measures are recommended:

• Install panels in elevated locations with minimal surrounding tree coverage to reduce shading effects from the mountainous landscape.
• Implement automated cleaning systems or regular maintenance schedules to address dust and pollen accumulation.
• Consider micro-inverter or power optimizer technology to minimize the impact of partial shading on overall system performance.
• Install slightly more capacity than needed to compensate for the reduced winter output if year-round consistent energy is required.
• Ensure proper drainage systems around ground-mounted installations to handle the heavy summer rainfall.

Despite these challenges, the relatively stable year-round production (never falling below 4.23kWh/day per kW installed) makes Nova Friburgo a viable location for solar PV installations, particularly for residential and small commercial applications that can accommodate seasonal variations in output.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

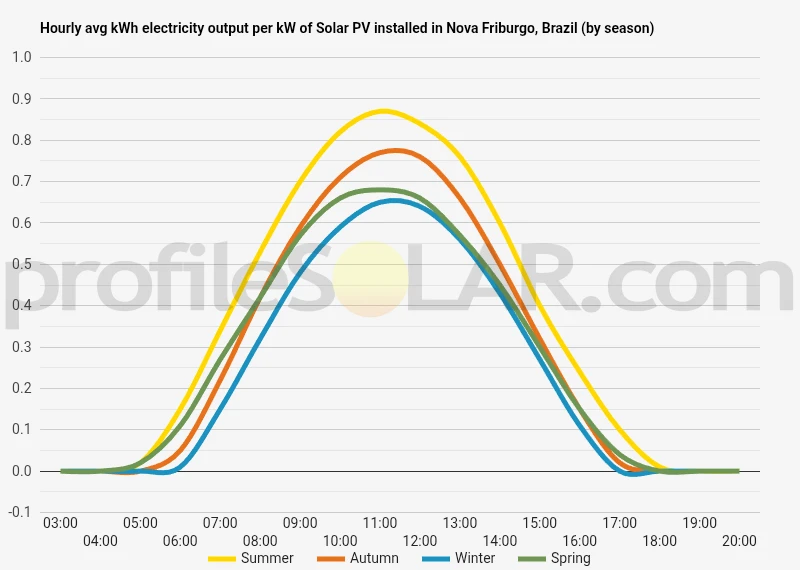

Solar output per kW of installed solar PV by season in Nova Friburgo

Seasonal solar PV output for Latitude: -22.3355, Longitude: -42.4967 (Nova Friburgo, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° North in Nova Friburgo, Brazil

To maximize your solar PV system's energy output in Nova Friburgo, Brazil (Lat/Long -22.3355, -42.4967) throughout the year, you should tilt your panels at an angle of 20° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Nova Friburgo, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Nova Friburgo, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	27° North in Autumn	38° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Nova Friburgo, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Nova Friburgo, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Nova Friburgo, Brazil

Nova Friburgo is situated in a mountainous region of southeastern Brazil, specifically in the state of Rio de Janeiro. The terrain surrounding the city is characterized by dramatic topographical features that define both its climate and potential for solar energy development.

Mountainous Terrain

The landscape around Nova Friburgo is dominated by the Serra do Mar mountain range, part of the larger Atlantic Forest biome. The city itself sits at approximately 846 meters (2,775 feet) above sea level, nestled within valleys created by these mountains. The surrounding peaks can reach heights of over 1,500 meters (4,900 feet), creating a varied topographical profile throughout the region. This mountainous terrain creates numerous slopes with different orientations, which significantly impacts solar exposure. The mountains form a natural amphitheater in some areas, with valleys running predominantly in a northeast-southwest direction. This orientation influences how sunlight reaches different parts of the landscape throughout the day and across seasons.

Valleys and Waterways

Between the mountain ridges lie several valleys with flowing rivers and streams. The main waterway in the area is the Rio Bengalas, which flows through the city center. These valleys typically have flatter terrain compared to the surrounding slopes and often contain small agricultural plots and settlements. The valley floors, while more level than the mountain slopes, are relatively narrow and can experience shading from the surrounding mountains, particularly in the early morning and late afternoon. This natural shading effect reduces the total solar radiation received in these lower-lying areas.

Vegetation and Land Cover

The region naturally supports dense Atlantic Forest vegetation, though much of the original forest has been modified through agricultural development and urbanization. The remaining forested areas are primarily found on steeper slopes and higher elevations where development is more challenging. Agricultural lands, primarily consisting of small farms growing vegetables, flowers, and coffee, occupy many of the gentler slopes and accessible valleys. These areas have already been cleared of dense forest, making them potentially available for alternative uses such as solar energy production.

Optimal Areas for Solar PV Development

For large-scale solar photovoltaic (PV) installations near Nova Friburgo, several factors must be considered beyond just topography, including land availability, grid connectivity, and environmental impact. However, focusing strictly on topographical considerations, the following areas present the best potential: The northeastern slopes and plateaus offer superior conditions for solar PV installations. These areas receive consistent sunlight throughout the day, particularly in the morning, when atmospheric conditions are typically clearer. The gradual slopes in this direction also allow for easier construction and maintenance access. Several elevated plateaus exist within 15-20 kilometers of Nova Friburgo, particularly toward the municipality of Cachoeiras de Macacu. These relatively flat areas at higher elevations benefit from reduced atmospheric interference and fewer obstacles blocking sunlight. Their elevation also typically places them above morning fog that can sometimes settle in the valleys. The southeastern facing slopes receive abundant solar radiation, particularly during the summer months when the sun tracks further south. These areas, while sloped, could accommodate terraced solar installations that maximize exposure to the sun's path.

Challenges of the Terrain

Despite these promising areas, the topography around Nova Friburgo presents several challenges for large-scale solar development. The steep slopes that characterize much of the region make construction difficult and expensive. Additionally, the risk of landslides during the rainy season is significant in many areas, potentially threatening infrastructure investments. The fragmented nature of suitable land parcels also presents a challenge. Unlike flat desert regions where massive contiguous solar farms can be built, any development near Nova Friburgo would likely need to be distributed across multiple smaller sites, increasing infrastructure costs. The mountainous terrain also creates microclimates with varying cloud cover patterns. Some valleys experience regular afternoon cloud buildup due to orographic lifting effects, which would reduce solar generation potential during those periods. In conclusion, while the topography around Nova Friburgo presents challenges for large-scale solar PV development, the northeastern plateaus and southeastern slopes offer the most promising conditions when considering purely topographical factors.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
