Nova Granada, São Paulo, Brazil represents a highly favorable location for year-round solar photovoltaic energy generation. This tropical location consistently delivers strong solar energy output across all seasons, making it an excellent choice for solar installations.

Solar Energy Performance Throughout the Year

The location demonstrates impressive solar generation potential with summer delivering the highest output at 7.01 kWh per day per kW of installed solar capacity. Spring follows as the second-best performing season at 6.50 kWh per day per kW, while autumn produces 5.80 kWh per day per kW. Even during winter, the weakest season, the location still generates a respectable 5.16 kWh per day per kW of installed capacity. Summer and spring emerge as the ideal times for solar generation at this location, with summer offering the peak performance period. The relatively modest seasonal variation demonstrates the location's reliability for consistent solar energy production throughout the year.

Optimal Panel Configuration

For maximum year-round solar production at Nova Granada, São Paulo, fixed solar panels should be installed at an optimal tilt angle of 19 degrees facing North. This angle has been calculated to maximize total annual energy output by accounting for the sun's path throughout the year and weighting for daily solar potential based on irradiance data.

Environmental and Weather Factors

Several local factors could potentially impact solar production at this location and should be considered during installation planning:

• Seasonal rainfall patterns: As a tropical location, Nova Granada likely experiences distinct wet and dry seasons, with heavy rainfall during wet periods potentially reducing solar output through cloud cover and atmospheric moisture
• High humidity levels: Tropical climates typically maintain elevated humidity year-round, which can create haze and reduce atmospheric clarity
• Dust and debris accumulation: Dry season conditions may lead to increased dust settling on panel surfaces
• Vegetation growth: The favorable growing conditions in tropical climates can lead to rapid vegetation growth that may create shading issues

Preventative Measures for Optimal Performance

Several installation strategies can help maximize solar energy production despite these environmental challenges:

• Regular cleaning schedules: Implement frequent panel cleaning, particularly during and after the dry season to remove dust accumulation
• Proper drainage design: Install panels with adequate drainage to prevent water pooling during heavy rainfall periods
• Strategic site selection: Choose installation sites with minimal shading potential and good air circulation to reduce humidity-related issues
• Vegetation management: Maintain clear zones around solar installations and regularly trim any nearby vegetation that could create shadows
• Quality mounting systems: Use corrosion-resistant mounting hardware suitable for high-humidity tropical environments

Despite these considerations, Nova Granada's strong and consistent solar output across all seasons makes it an excellent location for solar PV installations, with proper planning and maintenance ensuring optimal energy generation year-round.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

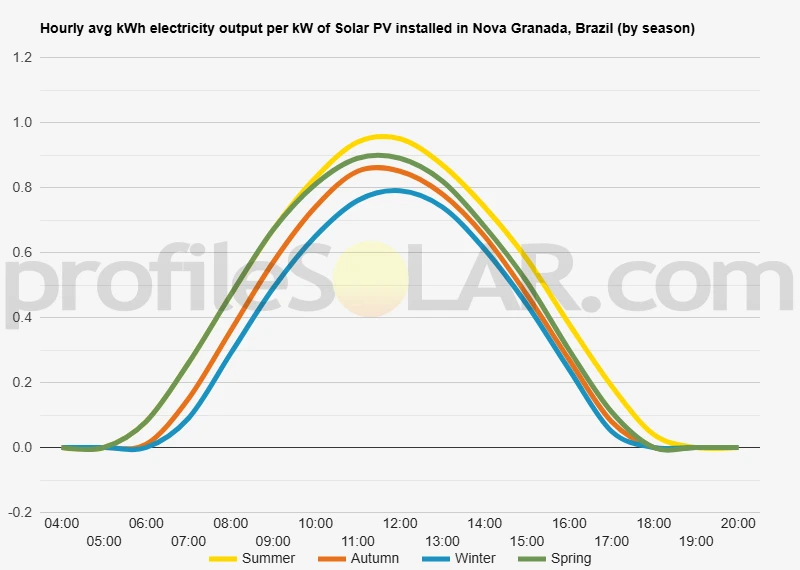

Solar output per kW of installed solar PV by season in Nova Granada

Seasonal solar PV output for Latitude: -20.4572, Longitude: -49.3155 (Nova Granada, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 19° North in Nova Granada, Brazil

To maximize your solar PV system's energy output in Nova Granada, Brazil (Lat/Long -20.4572, -49.3155) throughout the year, you should tilt your panels at an angle of 19° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Nova Granada, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Nova Granada, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° North in Summer	26° North in Autumn	36° North in Winter	14° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Nova Granada, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Nova Granada, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Nova Granada, Brazil

Topographical Features of Nova Granada Region

Nova Granada sits within the gently rolling landscape characteristic of western São Paulo state in Brazil. The terrain around this municipality features predominantly flat to slightly undulating topography, with elevations ranging from approximately 400 to 500 meters above sea level. This region forms part of the broader Paraná sedimentary basin, which extends across much of south-central Brazil and creates relatively stable geological conditions with gradual elevation changes rather than dramatic hills or valleys.

The landscape is punctuated by wide, shallow valleys carved by small tributaries that eventually feed into larger river systems. These waterways have created a network of gentle depressions and low ridges across the terrain, but the overall relief remains modest. The soil composition consists primarily of red latosols and sandy soils typical of the interior plateau region, formed from weathered sedimentary rocks and volcanic materials from ancient geological periods.

Agricultural activities dominate the land use patterns throughout this area, with extensive cattle ranching and crop cultivation taking advantage of the relatively flat terrain and fertile soils. The natural vegetation would have originally been cerrado savanna, though most of this has been converted to productive agricultural land over the past century.

Optimal Areas for Large-Scale Solar Development

The expansive flat agricultural lands surrounding Nova Granada present excellent opportunities for utility-scale solar photovoltaic installations. The most suitable areas lie on the elevated plateaus and gentle ridges that extend northeast and southwest of the municipality. These locations offer several advantages including minimal grading requirements, reduced construction costs, and unobstructed sky access throughout the day.

Particularly promising sites can be found on the higher elevation areas where the terrain remains relatively level but provides natural drainage away from the installation areas. The open agricultural landscapes in these zones typically feature large contiguous parcels of land that could accommodate substantial solar arrays without significant topographical constraints or the need for extensive earth moving operations.

The areas southeast of Nova Granada toward the Rio Tietê watershed also present favorable conditions, where the landscape opens into broad, gently sloping plains. These locations benefit from good accessibility via existing rural road networks while maintaining the flat to slightly rolling topography ideal for solar panel deployment. The consistent elevation and minimal vegetation coverage in these agricultural zones would facilitate both construction logistics and long-term maintenance operations.

Valley bottoms and areas immediately adjacent to waterways would be less suitable due to potential flooding concerns and the presence of riparian vegetation that must be preserved under Brazilian environmental regulations. However, the elevated agricultural lands that dominate the regional landscape provide abundant suitable terrain for large-scale solar development projects.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.
