Nova Lima, Minas Gerais, Brazil offers excellent conditions for year-round solar energy generation, making it a highly suitable location for solar PV installations. Located in the tropics where sunlight remains consistent throughout most of the year, this area experiences seasonal variations characterized more by wet and dry periods rather than dramatic temperature changes.

Solar Energy Production Throughout the Year

The solar energy output at Nova Lima demonstrates strong performance across all seasons. Summer delivers the highest production at 6.13 kWh per day per kW of installed solar capacity, followed closely by spring at 5.78 kWh per day. Autumn maintains solid output at 5.67 kWh per day, while winter shows the lowest but still respectable production at 4.96 kWh per day. The relatively small variation between seasons—only about 1.17 kWh difference between the highest and lowest producing seasons—indicates exceptional year-round reliability for solar energy generation. This consistency makes Nova Lima particularly attractive for solar investments, as energy production remains predictable throughout the year.

Optimal Panel Configuration

For maximum year-round solar production at this location, fixed solar panels should be tilted at 19 degrees facing north. This optimal angle is calculated by analyzing daily solar elevation angles at the latitude, determining daily optimal panel tilt angles, and weighting these angles by daily photovoltaic potential using solar irradiance data while accounting for Earth's elliptical orbit.

Environmental and Weather Challenges

Several local factors could potentially impact solar production in Nova Lima, Minas Gerais, though most can be effectively managed with proper planning and installation techniques. The most significant challenge is the tropical wet season, which brings heavy rainfall and increased cloud cover. During these periods, solar output naturally decreases due to reduced direct sunlight. However, modern solar panels can still generate electricity from diffuse light on cloudy days, and the seasonal data already accounts for these weather patterns. High humidity levels common in tropical climates can lead to moisture-related issues if panels aren't properly sealed and ventilated. Additionally, the warm, humid environment may encourage biological growth such as algae, moss, or mold on panel surfaces, which can reduce efficiency over time.

Preventative Measures for Optimal Performance

Several installation strategies can help maximize solar energy production despite these challenges:

• Install panels with adequate spacing and ventilation to prevent moisture buildup and allow proper air circulation
• Use high-quality sealing materials and weatherproofing to protect electrical connections from humidity
• Implement a regular cleaning and maintenance schedule to remove biological growth and debris
• Choose panels with anti-reflective coatings that perform better in diffuse light conditions
• Consider micro-inverters or power optimizers to minimize the impact of partial shading from clouds or vegetation

The tropical location also means intense UV radiation, which can accelerate material degradation. Selecting panels with robust UV-resistant materials and frames designed for tropical climates will ensure longer system lifespan and maintained performance. Despite these considerations, Nova Lima's consistent solar resource and minimal seasonal variation make it an excellent location for solar PV installations. With proper system design and regular maintenance, solar energy systems can achieve excellent performance and reliability year-round at this location.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

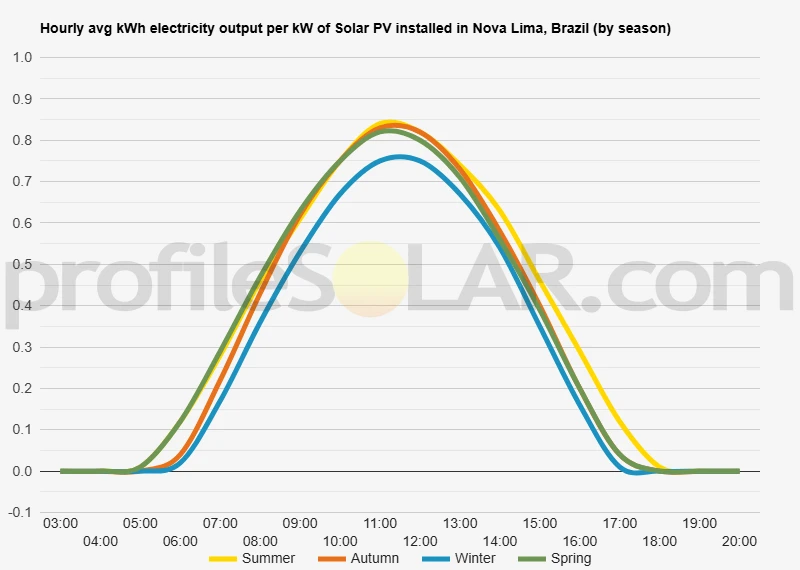

Solar output per kW of installed solar PV by season in Nova Lima

Seasonal solar PV output for Latitude: -19.9877, Longitude: -43.8447 (Nova Lima, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 19° North in Nova Lima, Brazil

To maximize your solar PV system's energy output in Nova Lima, Brazil (Lat/Long -19.9877, -43.8447) throughout the year, you should tilt your panels at an angle of 19° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Nova Lima, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Nova Lima, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
4° North in Summer	26° North in Autumn	35° North in Winter	14° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Nova Lima, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Nova Lima, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Nova Lima, Brazil

Topographical Features of Nova Lima

Nova Lima sits in the heart of Minas Gerais state within the Quadrilátero Ferrífero (Iron Quadrangle), a mineral-rich region characterized by rolling hills and mountainous terrain. The city is positioned at an elevation of approximately 900 meters above sea level, nestled among the foothills of the Serra do Curral mountain range. This area forms part of the larger Atlantic Plateau system, where ancient geological formations have created a landscape of moderate to steep slopes interspersed with valleys and plateaus.

The terrain around Nova Lima displays typical characteristics of the Brazilian Highlands, with elevations ranging from about 700 meters in the lower valleys to over 1,400 meters on the highest peaks. The topography consists primarily of undulating hills with gradients that vary significantly across short distances. Many areas feature exposed rock outcroppings and weathered surfaces typical of the region's iron-rich geology, while valleys often contain deeper soils and gentler slopes.

Water features play an important role in shaping the local landscape, with numerous small streams and tributaries of the Rio das Velhas cutting through the terrain. These waterways have carved valleys and created natural drainage patterns that influence the overall topographical character of the region. The combination of elevation changes and water erosion has resulted in a complex mosaic of ridges, valleys, and intermediate slopes.

Climate and Environmental Conditions

The elevated position of Nova Lima creates a subtropical highland climate with distinct wet and dry seasons. The region experiences moderate temperatures throughout the year due to its altitude, with the topography contributing to local variations in microclimate conditions. Higher elevations tend to be cooler and may experience different precipitation patterns compared to the valleys below.

The area receives abundant sunshine during the dry season, which typically extends from May through September. Cloud cover patterns are influenced by the mountainous terrain, with orographic effects creating variations in weather conditions across different elevations and aspects. The combination of elevation, latitude, and seasonal weather patterns creates favorable conditions for solar energy generation during much of the year.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Nova Lima would be the relatively flat plateau areas and gentle slopes found at intermediate elevations. These areas offer the best compromise between accessibility, terrain stability, and favorable solar exposure conditions. Plateaus at elevations between 800 and 1,000 meters provide sufficient flat or gently sloping land while avoiding the steepest mountainous terrain.

South-facing slopes with gradients of less than 15 degrees present excellent opportunities for solar development, as they can maximize exposure to the sun's path across the northern sky in the Southern Hemisphere. Areas to the north and northeast of Nova Lima contain several such locations where the terrain opens up into broader valleys and more moderate topography.

The region around the BR-040 highway corridor offers particular advantages for solar development due to better accessibility and the presence of existing infrastructure. This area features more gentle topography compared to the steeper terrain closer to the Serra do Curral range. Additionally, locations with good proximity to existing electrical transmission infrastructure would be preferred for large-scale installations.

Areas that should be avoided for solar development include the steeper slopes of the Serra do Curral, deeply incised valleys with limited solar access, and regions with significant forest cover or environmental sensitivity. Mining areas, while potentially offering cleared land, may present soil stability issues and regulatory complications that could complicate solar development projects.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
