Nova Xavantina, Brazil represents an excellent location for year-round solar photovoltaic energy generation. Located in the tropical region of Mato Grosso state, this area benefits from consistent sunlight throughout the year, with seasonal variations driven more by wet and dry periods than by significant changes in daylight hours.

Solar Energy Production Potential

The solar energy output data for Nova Xavantina demonstrates remarkably consistent performance across all seasons. During summer months, solar panels can be expected to generate 5.79 kWh per day per kW of installed capacity. Autumn shows a slight improvement to 5.88 kWh/day per kW, while winter reaches 6.08 kWh/day per kW. Spring delivers the highest output at 6.17 kWh/day per kW of installed solar capacity. The winter and spring months represent the ideal times for solar generation at this location, coinciding with the dry season when cloud cover is typically reduced. This seasonal pattern is common in tropical regions where the dry season provides clearer skies and more direct sunlight. For optimal year-round performance, solar panels should be installed at a fixed tilt angle of 15 degrees facing north. This angle maximizes total annual energy production by accounting for the sun's path throughout the year and the location's proximity to the equator.

Environmental and Weather Considerations

Several local factors could potentially impact solar energy production in Nova Xavantina and require careful consideration during installation planning. The region experiences distinct wet and dry seasons, with the wet season bringing increased cloud cover, frequent rainfall, and higher humidity levels. During these periods, solar output naturally decreases due to reduced direct sunlight. Heavy rainfall can also lead to dust and debris accumulation on panel surfaces once the rain stops. Nova Xavantina's location in the Cerrado biome means the area is subject to seasonal fires and significant dust generation, particularly during the dry season. Agricultural activities in the surrounding region can contribute additional particulate matter that may settle on solar panels, reducing their efficiency. High temperatures throughout the year, typical of tropical locations, can reduce solar panel efficiency as photovoltaic cells operate less effectively in extreme heat. The combination of high humidity during wet seasons followed by intense heat and dryness can also stress equipment over time.

Preventative Measures for Optimal Performance

Several installation strategies can help maximize solar energy production despite these environmental challenges:

• Install panels with adequate spacing and ventilation underneath to promote air circulation and reduce operating temperatures
• Use high-quality mounting systems with corrosion-resistant materials suited for tropical climates
• Implement regular cleaning schedules, particularly important during and after the dry season when dust accumulation peaks
• Choose solar panels and inverters specifically rated for high-temperature operation and tropical conditions
• Install monitoring systems to track performance and identify when cleaning or maintenance is needed

Proper drainage around installation sites prevents water pooling during heavy rains, while strategic positioning away from major dust sources can reduce cleaning requirements. Using anti-reflective coatings and self-cleaning panel surfaces can also help maintain efficiency with minimal maintenance intervention. Despite these considerations, Nova Xavantina's consistent solar output throughout the year makes it a highly suitable location for solar photovoltaic installations, with proper planning and maintenance ensuring optimal energy generation.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

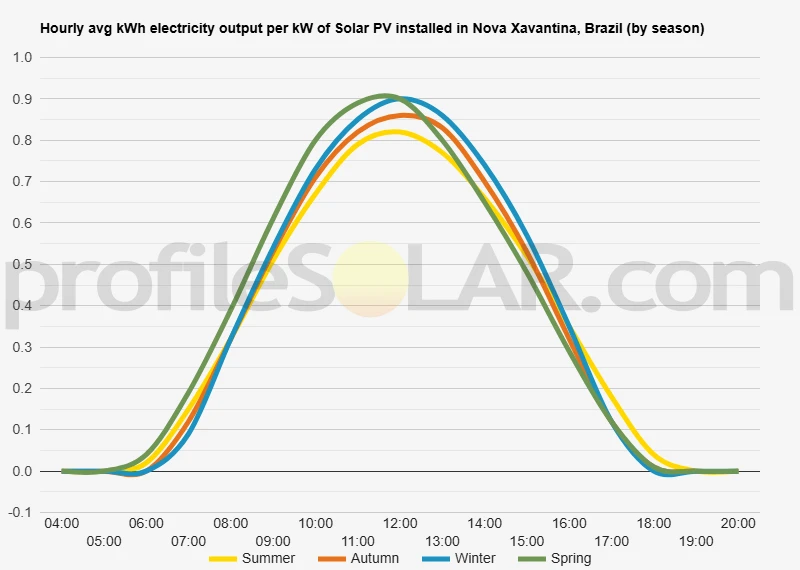

Solar output per kW of installed solar PV by season in Nova Xavantina

Seasonal solar PV output for Latitude: -14.5848, Longitude: -52.3271 (Nova Xavantina, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 15° North in Nova Xavantina, Brazil

To maximize your solar PV system's energy output in Nova Xavantina, Brazil (Lat/Long -14.5848, -52.3271) throughout the year, you should tilt your panels at an angle of 15° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Nova Xavantina, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Nova Xavantina, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 15° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
1° South in Summer	21° North in Autumn	30° North in Winter	9° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Nova Xavantina, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Nova Xavantina, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Nova Xavantina, Brazil

Topographical Features of Nova Xavantina

Nova Xavantina sits within the expansive Cerrado biome of central Brazil, positioned on the Brazilian Plateau at an elevation of approximately 300 meters above sea level. The surrounding landscape is characterized by gently rolling terrain with broad, flat-topped hills and wide valleys that create a relatively stable topographical foundation. This region represents part of the ancient geological shield that forms the backbone of central Brazil, resulting in generally well-drained soils and predictable landforms.

The area experiences a tropical savanna climate with distinct wet and dry seasons, which has shaped the local topography over millennia. During the wet season, seasonal streams and small rivers carve shallow channels through the landscape, while the dry season reveals extensive flat areas ideal for large-scale development. The terrain slopes very gradually toward the northeast, following the general drainage pattern of the region toward the Araguaia River system.

Vegetation in the immediate vicinity consists primarily of Cerrado grasslands interspersed with gallery forests along watercourses and scattered patches of more dense woodland on slightly elevated areas. The relatively open nature of much of the landscape, combined with the gentle topography, creates favorable conditions for infrastructure development and equipment installation across large contiguous areas.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be the broad plateau areas extending northwest and southeast of Nova Xavantina. These zones offer several kilometers of relatively flat terrain with gentle slopes of less than 3%, minimizing the need for extensive grading while ensuring adequate drainage. The plateau surfaces provide stable foundations with minimal risk of erosion or seasonal flooding.

Areas located 10-20 kilometers southwest of the town center present particularly attractive characteristics for solar development. This zone features extensive flat grassland areas with minimal tree cover, reducing land clearing requirements and associated environmental impacts. The terrain maintains consistent elevations across large areas, allowing for standardized installation techniques and simplified electrical infrastructure layout.

The region northeast of Nova Xavantina, while slightly more undulating, offers good potential for solar installations on the broader hilltops and gentle south-facing slopes. These elevated positions provide excellent exposure conditions while maintaining accessibility for construction and maintenance vehicles. The natural drainage patterns in this area effectively channel seasonal rainfall away from potential installation sites.

Transportation access represents a significant advantage throughout the region, with existing road networks providing reasonable connectivity to potential development sites. The proximity to established electrical transmission infrastructure further enhances the viability of large-scale solar projects in the areas surrounding Nova Xavantina.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
