Novo Barreiro, Rio Grande do Sul, Brazil, located in the Southern Sub Tropics, presents a moderately favorable location for year-round solar PV energy generation, though with notable seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The location shows significant seasonal fluctuation in solar energy output. Summer delivers the strongest performance at 7.33kWh per day per kW of installed capacity, making it an excellent time for solar generation. Spring follows as the second-best season with 6.01kWh per day per kW, providing solid energy production during this period. Autumn sees a notable decline to 5.07kWh per day per kW, while winter represents the most challenging season with only 3.74kWh per day per kW of installed solar capacity. This winter figure is roughly half the summer output, indicating that energy storage or grid-tied systems become particularly important during colder months.

Optimal Panel Configuration

For fixed panel installations at this location, the ideal angle to tilt panels is 24 degrees North to maximize total year-round solar production. This angle is calculated by analyzing daily solar elevation angles at the latitude, determining optimal panel tilt for each day, and weighting these angles by daily photovoltaic potential using solar irradiance data that accounts for Earth's elliptical orbit.

Environmental and Weather Considerations

Several local factors could potentially impact solar production efficiency at Novo Barreiro:

• Seasonal weather patterns typical of Southern Sub Tropical regions may include periods of increased cloud cover during autumn and winter months, contributing to the reduced energy output during these seasons
• Potential for subtropical storm activity during certain times of year that could temporarily reduce solar irradiance
• Higher humidity levels common in subtropical climates may occasionally affect panel efficiency
• Dust and debris accumulation on panels, particularly during drier periods

Preventative Measures for Enhanced Production

To maximize solar energy production despite these challenges, several installation strategies can be implemented:

• Install panels with adequate spacing and ventilation to prevent overheating in humid conditions
• Implement regular cleaning schedules to remove dust, debris, and any organic matter that may accumulate on panel surfaces
• Consider investing in battery storage systems to capture excess energy during high-production summer and spring months for use during lower-production winter periods
• Use high-quality mounting systems designed to withstand subtropical weather conditions including potential storm activity
• Install monitoring systems to track performance and quickly identify any weather-related efficiency losses

Overall, while Novo Barreiro experiences meaningful seasonal variation in solar potential, the location remains viable for solar PV installations with proper planning and maintenance protocols in place.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

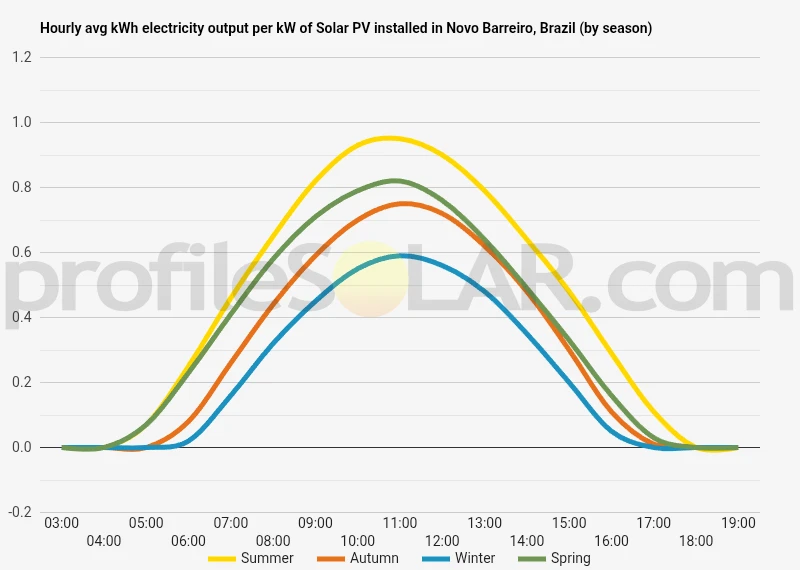

Solar output per kW of installed solar PV by season in Novo Barreiro

Seasonal solar PV output for Latitude: -27.8915, Longitude: -53.1122 (Novo Barreiro, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° North in Novo Barreiro, Brazil

To maximize your solar PV system's energy output in Novo Barreiro, Brazil (Lat/Long -27.8915, -53.1122) throughout the year, you should tilt your panels at an angle of 24° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Novo Barreiro, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Novo Barreiro, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° North in Summer	33° North in Autumn	43° North in Winter	21° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Novo Barreiro, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Novo Barreiro, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Novo Barreiro, Brazil

Topographical Characteristics of Novo Barreiro

Novo Barreiro sits within the gently rolling landscape of Rio Grande do Sul's northwestern region, characterized by the transition between the Brazilian Highlands and the more level terrain of the Pampas. The immediate area around these coordinates features predominantly flat to gently undulating terrain with elevations ranging from approximately 200 to 400 meters above sea level. This region forms part of the larger Planalto Sul-Riograndense, where ancient volcanic activity has created relatively stable geological formations with gradual slopes and broad valleys.

The landscape is marked by wide, open spaces with minimal steep gradients, making it typical of the agricultural heartland that characterizes much of this part of Brazil. Rolling hills extend across the horizon, creating a terrain that rises and falls in gentle waves rather than sharp peaks or deep valleys. Small streams and tributaries meander through the area, creating subtle drainage patterns that have carved shallow depressions in the landscape over millennia.

Soil and Surface Conditions

The surface geology consists primarily of well-drained soils developed from volcanic rock formations, creating stable ground conditions suitable for various land uses. The area experiences a subtropical climate with distinct wet and dry seasons, which has contributed to the development of grasslands interspersed with agricultural fields. The relatively flat topography and fertile soils have made this region attractive for farming activities, particularly cattle ranching and crop cultivation.

Vegetation in the natural state would consist of mixed grasslands and scattered woodlands, though much of the original landscape has been modified for agricultural purposes. The open nature of the terrain means that natural windbreaks are limited, and the landscape offers expansive views across the countryside with few significant topographical barriers.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations would be the broad, flat plateaus and gentle south-facing slopes that characterize much of the area within a 20-kilometer radius of Novo Barreiro. These locations offer the ideal combination of minimal grading requirements, stable soil conditions, and unobstructed sky access that large solar installations require.

The elevated plateau areas to the north and east of the coordinates would be particularly well-suited for solar development, as they provide excellent drainage, reduced risk of flooding, and minimal shading from surrounding terrain features. These areas typically have gentle gradients of less than 5 degrees, which allows for efficient panel placement while maintaining good water runoff characteristics.

Areas along the broader valley floors and gentle hillsides would also present excellent opportunities for solar development, particularly where the terrain faces south or southeast to maximize solar exposure throughout the day. The stable geological conditions and relatively uniform topography across large areas would allow for the construction of extensive solar arrays with minimal site preparation costs.

The region's open agricultural landscape means that large contiguous areas are available for potential development, avoiding the fragmentation issues that can complicate solar projects in more densely developed or topographically complex areas. The absence of significant forested areas or steep terrain in the immediate vicinity creates opportunities for solar installations that could span several square kilometers without major topographical obstacles.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.
