Ocara, Ceará, Brazil presents an excellent location for year-round solar PV energy generation. This tropical location benefits from consistent sunlight throughout the year, with seasonal variations driven more by wet and dry periods than by significant changes in sun angle or daylight duration.

Solar Energy Output Performance

The solar energy production data reveals strong and consistent performance across all seasons:

• Spring: 7.09 kWh/day per kW installed (peak season)
• Winter: 6.23 kWh/day per kW installed
• Summer: 6.06 kWh/day per kW installed
• Autumn: 5.90 kWh/day per kW installed

Spring emerges as the optimal season for solar generation, producing approximately 20% more energy than the lowest-performing season (autumn). Even during the least productive period, the location still generates nearly 6 kWh daily per kW of installed capacity, demonstrating excellent baseline performance. For maximum year-round energy production, solar panels should be installed at a fixed tilt angle of 5 degrees facing north. This shallow angle optimization reflects the location's proximity to the equator, where the sun remains relatively high in the sky throughout the year.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production in Ocara: **Tropical Rainfall and Humidity**: The region experiences distinct wet and dry seasons typical of tropical climates. Heavy rainfall during wet periods can reduce solar irradiance and create challenges for equipment maintenance. High humidity levels year-round may accelerate corrosion of metal components and electrical connections. **Dust and Particulate Matter**: During dry seasons, dust accumulation on solar panels can significantly reduce energy output. The semi-arid characteristics of northeastern Brazil mean that fine particles can settle on panel surfaces, creating a film that blocks sunlight. **Temperature Effects**: While abundant sunshine is beneficial, excessive heat can reduce solar panel efficiency. High ambient temperatures common in tropical regions can cause panels to operate above their optimal temperature range.

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies should be implemented: **Drainage and Ventilation Design**: Install panels with adequate spacing and mounting systems that promote air circulation underneath. This helps with cooling and prevents moisture accumulation. Ensure proper drainage channels to handle heavy rainfall without water pooling around equipment. **Regular Cleaning Systems**: Implement automated cleaning systems or establish regular manual cleaning schedules, particularly important during dry seasons when dust accumulation peaks. Consider installing panels at angles that promote self-cleaning during rainfall. **Corrosion-Resistant Materials**: Use marine-grade or tropical-rated mounting hardware, wiring, and electrical components designed to withstand high humidity and temperature fluctuations. Apply protective coatings to metal surfaces and ensure all electrical connections are properly sealed. **Temperature Management**: Design installations with adequate ventilation space beneath panels and consider light-colored mounting surfaces to reflect heat. In extreme cases, active cooling systems may be beneficial for large installations. Despite these environmental considerations, Ocara's consistently strong solar energy output across all seasons makes it a highly suitable location for solar PV installations, provided that appropriate design and maintenance measures are implemented.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

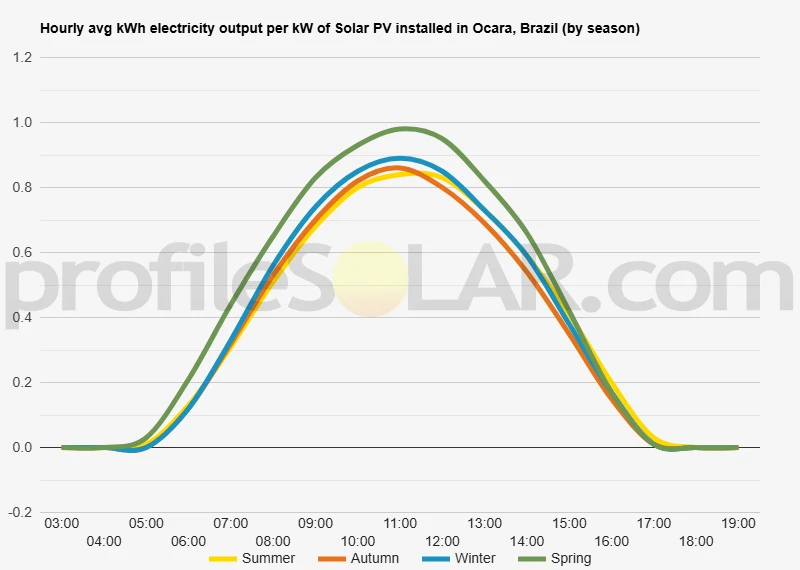

Solar output per kW of installed solar PV by season in Ocara

Seasonal solar PV output for Latitude: -4.5355, Longitude: -38.5158 (Ocara, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 5° North in Ocara, Brazil

To maximize your solar PV system's energy output in Ocara, Brazil (Lat/Long -4.5355, -38.5158) throughout the year, you should tilt your panels at an angle of 5° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ocara, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ocara, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 5° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
11° South in Summer	11° North in Autumn	20° North in Winter	1° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ocara, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ocara, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ocara, Brazil

Topographical Features of Ocara Region

The area surrounding Ocara in Ceará state, Brazil, is characterized by relatively gentle topography typical of the northeastern Brazilian interior. The landscape consists primarily of gently rolling hills and broad, shallow valleys that form part of the larger Caatinga ecosystem. Elevation changes across the region are generally modest, with the terrain gradually rising and falling in undulating patterns rather than presenting steep slopes or dramatic elevation differences. The local topography features predominantly flat to gently sloping terrain interspersed with low ridges and scattered rocky outcrops. These geological formations are remnants of ancient crystalline basement rock that has been weathered over millions of years, creating a landscape of rounded hills and broad depressions. The soil composition varies from sandy to clay-rich deposits, with areas of exposed bedrock appearing on some of the higher elevations and steeper slopes. Drainage patterns in the region follow the natural contours of the land, with seasonal streams and dry creek beds winding through the valleys. During the dry season, many of these waterways become intermittent or completely dry, leaving behind sandy channels that snake across the landscape. The overall drainage flows generally toward larger river systems that eventually reach the Atlantic coast.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Ocara would be the extensive flat to gently sloping areas that dominate much of the surrounding landscape. These areas offer several advantages including minimal grading requirements, reduced construction costs, and optimal panel positioning for maximum solar exposure throughout the day. The broad valley floors and gentle hillsides with southern exposure present particularly attractive opportunities for solar development. These locations typically have fewer obstacles such as large trees or rocky outcrops, making site preparation more straightforward and cost-effective. The relatively stable soil conditions in these areas also provide good foundation support for solar mounting systems. Areas with slight southern-facing slopes would be especially beneficial as they can enhance solar collection efficiency while still maintaining manageable construction conditions. The natural drainage patterns in these locations help prevent water accumulation that could potentially affect solar installations during the rainy season. The region's scattered rocky outcrops and steeper hillsides would generally be less suitable for large-scale solar development due to increased site preparation costs and potential shading issues. However, the abundance of suitable flat and gently sloping terrain provides ample opportunities for significant solar installations across the broader Ocara area. Access to existing road networks and electrical infrastructure would also be important considerations, with areas closer to main transportation routes and power transmission lines offering additional advantages for large-scale solar project development.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
