Pacajus, Ceará, Brazil represents an excellent location for year-round solar photovoltaic energy generation. Located in the tropical region at coordinates -4.184, -38.5189, this area benefits from consistent sunlight throughout most of the year, with seasonal variations characterized more by wet and dry periods rather than dramatic temperature changes.

Solar Energy Production Potential

The solar energy output data for Pacajus demonstrates strong and consistent performance across all seasons. Spring emerges as the most productive period, generating 7.09 kWh per day for each kilowatt of installed solar capacity. Winter follows closely with 6.23 kWh/day per kW, while summer produces 6.06 kWh/day per kW, and autumn generates 5.90 kWh/day per kW. This seasonal pattern indicates that the optimal times for solar generation occur during spring and winter months, when atmospheric conditions and sun angles combine to maximize energy production. The relatively small variation between seasons (ranging from 5.90 to 7.09 kWh/day per kW) demonstrates the location's reliability for consistent solar energy generation throughout the year. For maximum year-round production efficiency, solar panels should be installed at a fixed tilt angle of 4 degrees facing North. This optimal angle is calculated by analyzing daily solar elevation angles at this specific latitude, determining daily optimal panel positioning, and weighting these angles using solar irradiance data while accounting for Earth's elliptical orbit around the sun.

Environmental and Weather Challenges

Several environmental factors in Pacajus could potentially impact solar energy production and require careful consideration during installation planning. The tropical climate brings significant rainfall during wet seasons, which can reduce solar irradiance and create challenges for panel efficiency. Heavy rain periods may cause temporary drops in energy generation, though the consistent year-round sunlight helps offset these seasonal reductions. High humidity levels, common in tropical coastal regions like Pacajus, Ceará, can lead to moisture-related issues including corrosion of electrical components and potential degradation of panel materials over time. The combination of heat and humidity creates conditions that may accelerate wear on solar equipment. Dust and debris accumulation presents another challenge, particularly during drier periods. Airborne particles can settle on panel surfaces, creating a film that reduces light transmission and decreases energy output. This issue becomes more pronounced in areas with agricultural activity or unpaved roads nearby.

Preventative Installation Measures

Several strategic measures can help maximize solar energy production in Pacajus while addressing local environmental challenges. Proper drainage systems around solar installations prevent water accumulation that could damage electrical components or create safety hazards. Installing panels with adequate spacing allows for natural air circulation, helping to reduce moisture buildup and improve cooling efficiency. Using marine-grade or tropical-rated electrical components and mounting hardware provides enhanced resistance to humidity and corrosion. These specialized materials are designed to withstand the demanding conditions of tropical coastal environments. Regular maintenance scheduling becomes crucial in this environment. Implementing a cleaning routine during dry periods helps remove dust and debris accumulation, while post-storm inspections ensure panels remain properly aligned and undamaged. Installing monitoring systems allows for real-time performance tracking, enabling quick identification of efficiency drops that may indicate cleaning needs or equipment issues. This proactive approach helps maintain optimal energy production throughout the year. The strategic use of protective coatings on panel surfaces can help reduce dust adhesion and make cleaning more effective when performed. Additionally, ensuring proper ventilation around electrical components extends equipment lifespan in the humid tropical environment.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

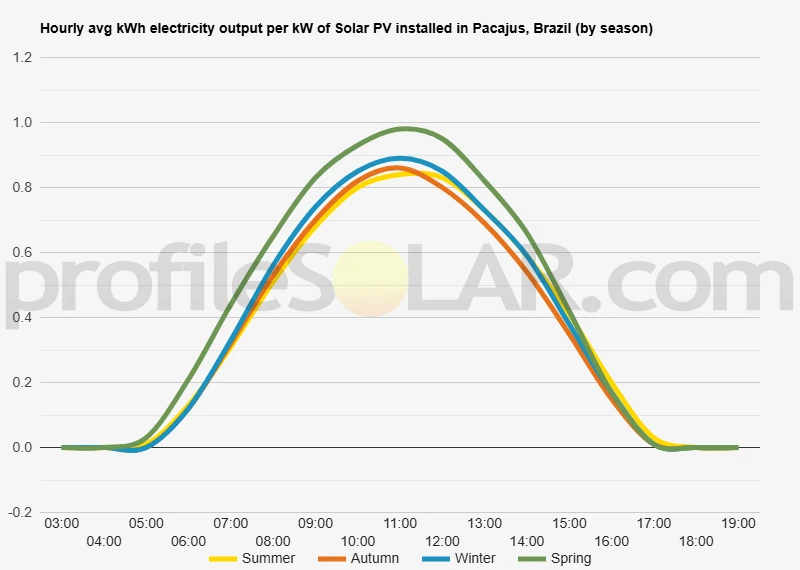

Solar output per kW of installed solar PV by season in Pacajus

Seasonal solar PV output for Latitude: -4.184, Longitude: -38.5189 (Pacajus, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 4° North in Pacajus, Brazil

To maximize your solar PV system's energy output in Pacajus, Brazil (Lat/Long -4.184, -38.5189) throughout the year, you should tilt your panels at an angle of 4° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Pacajus, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Pacajus, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 4° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° South in Summer	11° North in Autumn	20° North in Winter	2° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Pacajus, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Pacajus, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Pacajus, Brazil

Topography Around Pacajus

The landscape surrounding Pacajus in Ceará state is characterized by relatively flat to gently rolling terrain typical of Brazil's northeastern coastal region. This area sits within the broader Caatinga biome, where the topography consists primarily of low-lying plains and subtle undulations rather than dramatic elevation changes. The region features a semi-arid climate with sparse vegetation, creating an open landscape with minimal natural obstructions. The terrain around Pacajus generally slopes gradually from the interior highlands toward the Atlantic coast, which lies approximately 50 kilometers to the northeast. Most of the surrounding area maintains elevations between 50 and 200 meters above sea level, with occasional low hills and ridges breaking up the otherwise gentle topography. The soil composition varies from sandy to clay-based, with areas of exposed bedrock appearing in some locations.

Vegetation and Land Use Patterns

The natural vegetation consists mainly of Caatinga scrubland, featuring drought-adapted plants, thorny shrubs, and scattered small trees. This sparse vegetation cover means that large areas of relatively clear land are naturally available without requiring extensive clearing operations. Agricultural activities in the region typically involve cattle grazing and some crop cultivation, but the semi-arid conditions limit intensive farming in many areas. Existing infrastructure includes roads connecting Pacajus to the state capital Fortaleza and other regional centers, along with power transmission lines that already traverse portions of the landscape. These existing utility corridors and transportation networks provide important considerations for potential large-scale development projects.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar installations would be the broad, flat plains extending southwest and southeast of Pacajus. These areas offer several key advantages including minimal elevation changes that would complicate construction and installation processes. The sparse natural vegetation means reduced environmental impact and lower land preparation costs compared to forested regions. Areas with gentle southern-facing slopes would be particularly advantageous, as they can optimize panel positioning for maximum solar exposure throughout the day. The relatively stable geological conditions in these flat plains also provide solid foundations for large-scale mounting systems and infrastructure. The proximity to existing electrical transmission infrastructure represents another crucial factor. Areas within reasonable distance of current power lines would significantly reduce the costs and complexity of connecting solar installations to the electrical grid. The flat terrain also facilitates the construction of new transmission lines if needed to connect more remote but otherwise suitable sites.

Geographic Considerations

When evaluating specific locations, the areas with the most consistent flat terrain and minimal water drainage issues would be preferable. Some portions of the landscape feature seasonal water flow patterns that could complicate construction or ongoing operations, so elevated areas with good natural drainage would be most suitable. The region's position inland from the coast provides some protection from the most severe coastal weather patterns while still benefiting from the generally clear atmospheric conditions characteristic of Brazil's semi-arid northeast. The open landscape allows for unobstructed solar access across large areas without significant shading concerns from natural features or existing structures.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
