Paim Filho, Rio Grande do Sul, Brazil presents a moderately favorable location for year-round solar energy generation, though with notable seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy output at this Southern Sub Tropics location shows significant seasonal fluctuation. Summer delivers the strongest performance at 7.01kWh per day per kW of installed capacity, making it the prime season for solar generation. Spring follows as the second-best period with 5.93kWh daily output per kW. Autumn sees a noticeable decline to 4.95kWh per day per kW, while winter presents the most challenging conditions with only 3.68kWh daily per kW. This winter reduction represents nearly a 50% decrease compared to peak summer performance, which is typical for locations in the Southern Hemisphere's subtropical zones.

Optimal Installation Configuration

For maximum year-round energy production, solar panels at Paim Filho should be installed at a fixed tilt angle of 24 degrees facing North. This angle has been calculated to optimize total annual solar output by accounting for the sun's varying position throughout the year and weighting for daily solar potential.

Environmental and Weather Considerations

Several local factors could potentially impact solar energy production at this location:

• Subtropical humidity levels may lead to increased moisture and potential condensation on panels
• Regional weather patterns typical of southern Brazil, including periodic heavy rainfall and thunderstorms
• Potential for hail during severe weather events
• Dust and pollen accumulation, particularly during drier periods

Preventative Measures for Enhanced Performance

To maximize solar energy production despite these environmental challenges, several installation strategies should be considered: Regular maintenance scheduling becomes crucial, with monthly panel cleaning recommended to remove dust, pollen, and other debris. Installing panels with adequate ventilation space underneath helps prevent moisture buildup and allows for better heat dissipation. Choosing panels with robust weather ratings and impact-resistant glass provides protection against hail and severe weather. Proper drainage systems around the installation site prevent water pooling that could create humidity issues. Investing in monitoring systems allows for quick identification of performance drops that might indicate cleaning needs or weather-related damage. Additionally, selecting mounting systems designed for the local wind load requirements ensures long-term stability during storms. Overall, while Paim Filho offers reasonable solar potential, the significant seasonal variation means that energy storage or grid-tie systems become particularly important for maintaining consistent power availability throughout the year.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

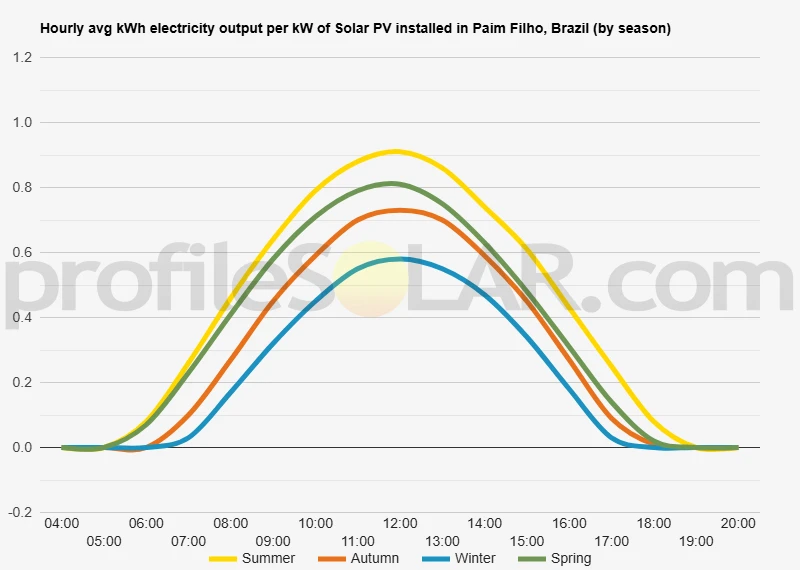

Solar output per kW of installed solar PV by season in Paim Filho

Seasonal solar PV output for Latitude: -27.7271, Longitude: -51.7788 (Paim Filho, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° North in Paim Filho, Brazil

To maximize your solar PV system's energy output in Paim Filho, Brazil (Lat/Long -27.7271, -51.7788) throughout the year, you should tilt your panels at an angle of 24° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Paim Filho, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Paim Filho, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
11° North in Summer	33° North in Autumn	43° North in Winter	20° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Paim Filho, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Paim Filho, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Paim Filho, Brazil

Topographical Features Around Paim Filho

Paim Filho sits in the northeastern region of Rio Grande do Sul state, positioned within the Brazilian Highlands plateau region. The terrain around this municipality is characterized by gently rolling hills and undulating landscapes typical of the southern Brazilian uplands. The elevation in the area ranges from approximately 400 to 700 meters above sea level, creating a moderately elevated landscape that experiences cooler temperatures than coastal regions.

The topography features a series of rounded hills and shallow valleys carved by small tributaries of the Uruguai River system. These hills have relatively gentle slopes, rarely exceeding 15-20 degrees, which makes the terrain quite manageable for development projects. The landscape is predominantly agricultural, with extensive areas cleared for farming activities including soybean cultivation, corn production, and cattle grazing.

The region's geology consists primarily of sedimentary rocks from the Paraná Basin, overlaid with fertile soils that have developed over thousands of years. This geological foundation provides stable ground conditions suitable for infrastructure development. The area experiences a subtropical highland climate with well-defined seasons and moderate rainfall distribution throughout the year.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Paim Filho would be the broader hilltops and gently sloping plateaus that dot the landscape. These elevated areas offer several advantages including consistent exposure to sunlight throughout the day and natural drainage that prevents water accumulation around solar equipment.

The agricultural fields on south-facing slopes present particularly attractive opportunities for solar development. These areas typically have minimal tree cover and relatively uniform terrain that would require less grading and preparation work. The existing agricultural road network in these areas would also facilitate construction access and ongoing maintenance operations.

Areas near the BR-153 highway corridor would be especially advantageous for solar projects due to their proximity to existing electrical transmission infrastructure and transportation networks. The slightly elevated plains extending eastward from the town center offer large contiguous parcels of land with gentle topography that could accommodate utility-scale solar arrays.

The western approaches to Paim Filho, where the landscape opens into broader agricultural valleys, present another promising zone for solar development. These areas benefit from reduced shading concerns due to their distance from forested areas and have terrain that naturally drains well during the rainy season. The relatively flat to gently rolling nature of these lands would minimize the need for extensive site preparation while maximizing the efficient arrangement of solar panels.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
