Palotina, Paraná, Brazil offers reasonably good conditions for year-round solar energy generation, though with notable seasonal variations typical of its Southern Subtropical location. The solar output data shows this location can produce meaningful electricity throughout all seasons, making it a viable option for solar PV installations.

Seasonal Solar Performance

The solar energy production at Palotina varies significantly across the seasons. Summer delivers the strongest performance at 7.14 kWh per day per kW of installed solar capacity, making it the peak season for energy generation. Spring follows as the second-best season with 6.09 kWh per day per kW, while autumn drops to 5.41 kWh per day per kW. Winter presents the most challenging conditions with only 4.08 kWh per day per kW, representing nearly a 43% reduction compared to summer output. For optimal year-round energy production from a fixed panel installation at this location, solar panels should be tilted at 21 degrees facing North. This angle maximizes total annual solar output by accounting for the sun's path throughout the year and the site's specific latitude.

Environmental and Weather Challenges

Several local factors at Palotina could potentially impact solar energy production and require consideration during installation planning. Humidity and Moisture: The subtropical climate brings high humidity levels that can affect solar panel efficiency and increase the risk of corrosion on mounting hardware and electrical connections. Moisture can also promote algae and mold growth on panel surfaces, reducing light transmission. Heavy Rainfall: Subtropical regions typically experience intense rainfall periods that can create several challenges. Heavy rains may cause temporary shading from storm clouds and can lead to water pooling if drainage is inadequate. Additionally, severe weather events associated with heavy rainfall could potentially damage installations. Temperature Fluctuations: The significant seasonal variation in solar output suggests substantial temperature differences throughout the year, which can cause thermal expansion and contraction of solar panels and mounting systems.

Preventative Installation Measures

To maximize energy production and system longevity at this location, several installation strategies should be implemented:

• Corrosion-resistant materials: Use marine-grade aluminum or stainless steel mounting systems and ensure all electrical connections have proper weatherproof sealing to withstand high humidity
• Enhanced drainage design: Install panels with adequate spacing and proper drainage channels to prevent water accumulation and ensure quick drying after rainfall
• Regular maintenance scheduling: Implement more frequent cleaning schedules during high-humidity periods to prevent organic growth on panel surfaces
• Robust mounting systems: Use reinforced mounting structures designed to handle thermal expansion and potential wind loads from storm systems
• Ventilation considerations: Ensure adequate airflow beneath panels to reduce heat buildup and moisture retention

Despite these challenges, Palotina's solar potential remains attractive, particularly during the summer and spring months when energy production peaks. With proper installation techniques and regular maintenance, solar PV systems can perform effectively year-round at this location.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

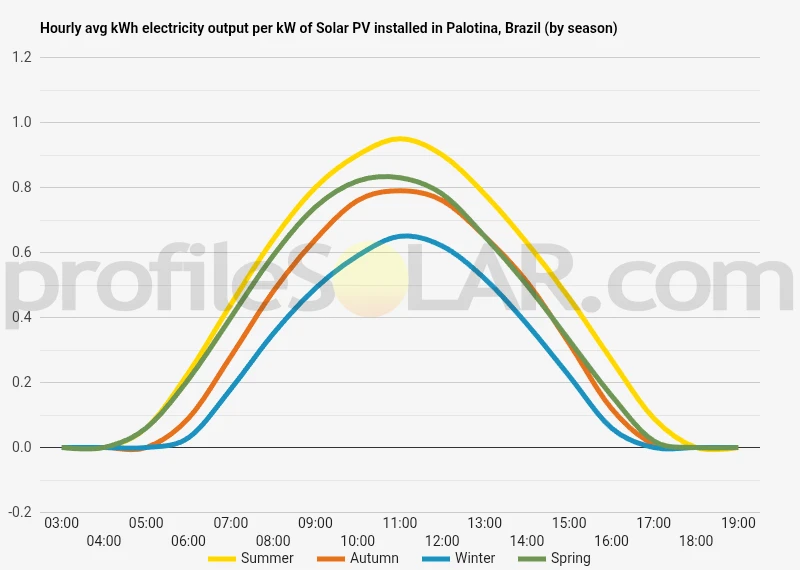

Solar output per kW of installed solar PV by season in Palotina

Seasonal solar PV output for Latitude: -24.2199, Longitude: -53.7713 (Palotina, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Palotina, Brazil

To maximize your solar PV system's energy output in Palotina, Brazil (Lat/Long -24.2199, -53.7713) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Palotina, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Palotina, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
8° North in Summer	30° North in Autumn	39° North in Winter	17° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Palotina, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Palotina, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Palotina, Brazil

Topography Around Palotina

The landscape surrounding Palotina in western Paraná state is characterized by gently rolling terrain typical of the Paraná Plateau region. This area sits at approximately 350 meters above sea level and features relatively modest elevation changes across the broader region. The topography consists primarily of undulating hills with gradual slopes, creating a terrain that is neither completely flat nor dramatically mountainous. The region forms part of the extensive sedimentary plateau that covers much of southern Brazil, with the local landscape shaped by ancient geological processes and weathering patterns. Rolling grasslands and agricultural fields dominate the visual character, interrupted by scattered woodlands and riparian forests along waterways. The terrain generally slopes in a westward direction toward the Paraná River valley, though these gradients are typically gentle and spread across considerable distances. Small streams and tributaries cut modest valleys through the landscape, creating a network of shallow drainage channels. These waterways have carved subtle depressions in the terrain over time, but the overall topographic relief remains relatively subdued compared to more mountainous regions of Brazil.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be found on the broader hilltops and elevated plateaus that characterize the region. These elevated areas offer several advantages, including consistent exposure to sunlight throughout the day without significant shadowing from adjacent terrain features. The gentle nature of these elevated zones means that large arrays can be installed with minimal grading or extensive site preparation. South-facing slopes with gradual gradients present particularly favorable conditions for solar development. These locations benefit from optimal solar orientation while maintaining manageable terrain for construction and maintenance activities. The moderate slopes also facilitate natural drainage, reducing potential issues with water accumulation around solar installations. Areas of relatively flat terrain on the plateau surfaces represent prime candidates for large-scale solar farms. These locations minimize the complexity of panel mounting systems and allow for efficient use of available land area. The stable, well-drained soils typical of these plateau areas provide solid foundations for solar infrastructure. Agricultural lands on gentle slopes could potentially be converted to solar use, particularly in areas where the terrain is too rolling for efficient mechanized farming. The existing cleared nature of much agricultural land in the region reduces preparation costs and environmental impact compared to forested areas. Valley floors and areas near waterways would generally be less suitable for solar development due to potential drainage issues, higher humidity levels, and the possibility of fog formation that could reduce panel efficiency. Additionally, these areas often contain more valuable riparian ecosystems that should be preserved.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.
