Panambi, Rio Grande do Sul, Brazil presents a moderately favorable location for year-round solar photovoltaic energy generation, though with notable seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy output at this Southern Sub Tropical location shows significant fluctuation throughout the year. Summer delivers the strongest performance at 7.63 kWh per day per kW of installed capacity, making it the peak season for solar generation. Spring follows as the second-best performing season with 6.02 kWh per day per kW, offering solid energy production during this transitional period. Autumn sees a notable decline in solar output, dropping to 4.89 kWh per day per kW of installed capacity. Winter presents the most challenging conditions for solar generation, with output falling to just 3.64 kWh per day per kW - less than half of summer's peak performance.

Optimal Installation Configuration

For fixed panel installations at Panambi, Rio Grande do Sul, the ideal tilt angle to maximize total year-round solar production is 24 degrees North. This angle is calculated by analyzing daily solar elevation angles at the location's latitude, determining optimal panel positioning, and weighting these angles according to daily photovoltaic potential using solar irradiance data that accounts for Earth's elliptical orbit.

Environmental and Weather Considerations

Several local factors could potentially impact solar energy production at this location and should be addressed during installation planning. The subtropical climate brings high humidity levels and frequent rainfall, particularly during summer months. This can lead to increased dust and debris accumulation on solar panels, reducing their efficiency. Regular cleaning schedules and installing panels at appropriate angles to encourage natural rain washing can help mitigate these effects. Strong seasonal weather patterns, including potential thunderstorms and high winds during summer, may pose risks to solar installations. Proper mounting systems designed to withstand local wind loads and potential hail damage should be prioritized during installation. The region's vegetation growth, encouraged by the humid subtropical conditions, could create shading issues if not properly managed. Trees and other plant growth near solar installations should be regularly trimmed to prevent shadows from reducing panel efficiency.

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies should be considered:

• Install robust mounting systems rated for local wind speeds and weather conditions
• Position panels with adequate clearance from vegetation and plan for ongoing landscape maintenance
• Implement regular cleaning protocols to address humidity-related debris accumulation
• Consider micro-inverters or power optimizers to minimize impact from partial shading
• Ensure proper drainage around installation areas to prevent water-related issues

Despite the seasonal variations and environmental considerations, Panambi's location offers reasonable potential for solar energy generation, particularly during the warmer months when energy demand for cooling is typically highest.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

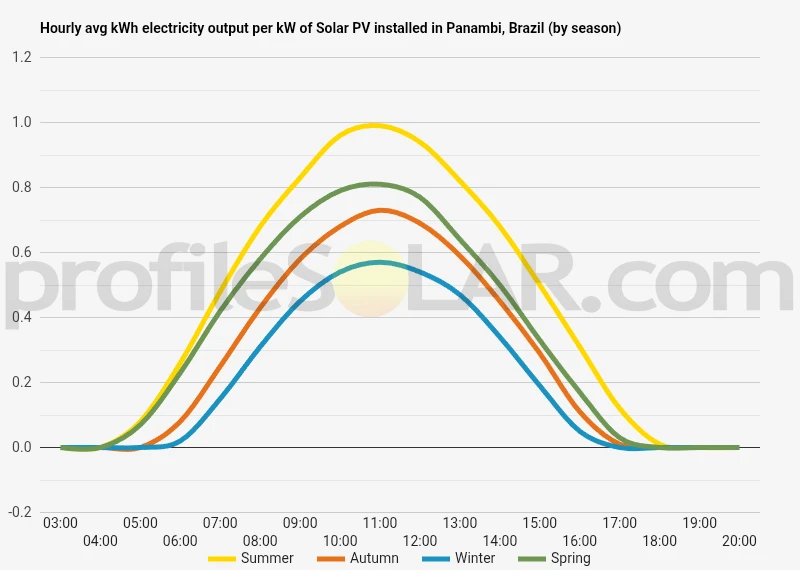

Solar output per kW of installed solar PV by season in Panambi

Seasonal solar PV output for Latitude: -28.3149, Longitude: -53.5536 (Panambi, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° North in Panambi, Brazil

To maximize your solar PV system's energy output in Panambi, Brazil (Lat/Long -28.3149, -53.5536) throughout the year, you should tilt your panels at an angle of 24° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Panambi, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Panambi, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° North in Summer	33° North in Autumn	43° North in Winter	21° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Panambi, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Panambi, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Panambi, Brazil

Topographical Features Around Panambi

Panambi sits in the northwestern region of Rio Grande do Sul, Brazil's southernmost state, within a landscape characterized by gently rolling hills and fertile plains. The city is positioned at an elevation of approximately 400 meters above sea level, nestled within the broader Alto Uruguai region. This area forms part of the Brazilian Plateau, where the terrain consists primarily of undulating topography with moderate elevation changes rather than dramatic mountains or deep valleys.

The surrounding countryside features a mosaic of agricultural lands, with expansive fields stretching across the gentle slopes and valley floors. The region's topography has been shaped by ancient geological processes, creating a landscape of sedimentary rock formations covered by fertile soils. Small streams and tributaries flow through the area, eventually feeding into larger waterways that drain toward the Uruguay River system to the north and west.

The terrain around Panambi is predominantly characterized by gradual inclines and declines, with hillcrests offering elevated positions that overlook the surrounding farmland. These higher elevations provide excellent vantage points across the landscape, while the valley areas between hills create natural corridors for agriculture and development. The overall relief is moderate, making the region highly accessible and suitable for various land uses.

Optimal Areas for Large-Scale Solar Development

The gently sloping hills and elevated plateaus surrounding Panambi present ideal conditions for large-scale solar photovoltaic installations. The most suitable areas would be the south-facing slopes and hilltops that receive consistent solar exposure throughout the day. These elevated positions not only maximize solar collection potential but also provide natural drainage and reduce the risk of flooding during heavy rainfall periods.

The agricultural plains extending to the north and east of the city offer extensive flat to gently rolling terrain that would be well-suited for utility-scale solar farms. These areas typically feature minimal shading from natural obstacles and provide the large contiguous spaces necessary for major solar installations. The existing agricultural infrastructure, including access roads and proximity to electrical transmission lines, would facilitate the development of solar projects in these locations.

Areas along the ridgelines and elevated plateaus would be particularly advantageous for solar development due to their consistent exposure and minimal topographical obstacles. The moderate elevation changes in the region mean that large solar arrays could be installed without extensive grading or earthwork, reducing development costs and environmental impact. The stable geological conditions of the Brazilian Plateau also provide solid foundations for solar mounting systems.

The western approaches to Panambi, where the terrain opens into broader agricultural valleys, represent another prime opportunity for solar development. These areas combine favorable topography with existing infrastructure access, making them attractive for large-scale renewable energy projects. The proximity to agricultural communities also presents opportunities for agrivoltaic systems that could combine solar generation with continued farming activities beneath and around solar installations.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
