Pantano Grande, Rio Grande do Sul, Brazil, located in the Southern Sub Tropics at latitude -30.2556 and longitude -52.3382, offers varying potential for solar PV energy generation throughout the year. This location experiences significant seasonal differences in solar energy production that potential solar installers should consider.

Seasonal Solar Production

Solar energy output at this location shows a clear seasonal pattern. Summer months deliver the highest energy production at 7.34kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 5.86kWh/day, while autumn yields 4.64kWh/day. Winter represents the lowest production period with only 3.21kWh/day per kilowatt installed.

This seasonal variation means that summer produces more than twice the energy of winter months, which is significant for planning purposes. For year-round energy needs, system sizing would need to account for these winter minimums if consistent output is required throughout the year.

Optimal Panel Installation

For fixed panel installations at Pantano Grande, Rio Grande do Sul, the ideal tilt angle to maximize year-round solar production is 26 degrees facing North. This specific angle optimizes the annual energy harvest by balancing seasonal variations in the sun's position throughout the year.

Environmental and Weather Considerations

Several environmental factors could potentially impact solar production at this Southern Sub Tropical location:

• Rainfall patterns in the region may reduce solar efficiency during wet seasons, particularly during spring and summer thunderstorms
• Occasional dust storms or agricultural burning in the surrounding areas could deposit particulate matter on panels
• Morning fog or mist common in subtropical regions can delay peak production hours
• Potential for hail in some seasons poses a physical risk to panel integrity

To mitigate these challenges, several preventative measures are recommended during installation:

• Installing panels with self-cleaning capabilities or at sufficient angles to promote natural cleaning during rainfall
• Implementing regular maintenance schedules, particularly before peak production seasons
• Using hail-resistant panels with appropriate certification for the region
• Considering micro-inverter or power optimizer technology to minimize production losses from partial shading
• Installing weather monitoring systems to track local conditions that might affect production

Overall, Pantano Grande offers good solar potential, particularly from late spring through summer and into early autumn. Winter months will produce significantly less energy, which should be factored into system design if year-round consistent production is required.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

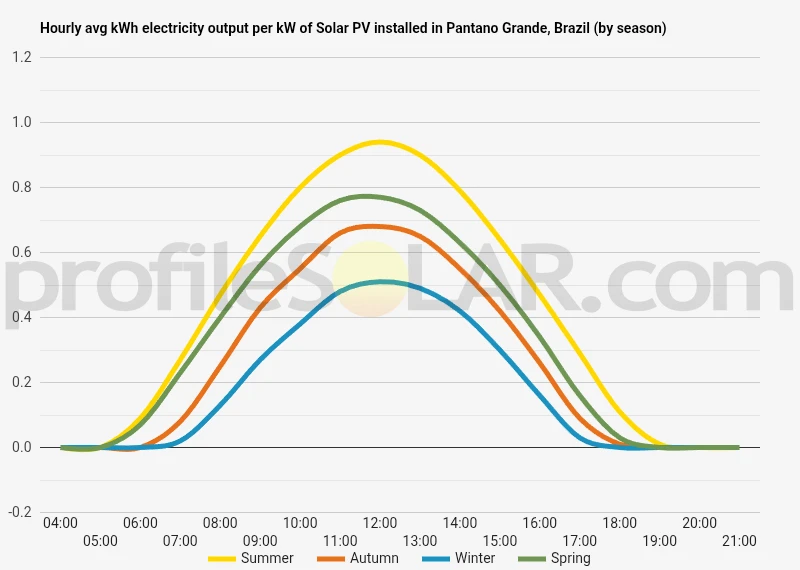

Solar output per kW of installed solar PV by season in Pantano Grande

Seasonal solar PV output for Latitude: -30.2556, Longitude: -52.3382 (Pantano Grande, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 26° North in Pantano Grande, Brazil

To maximize your solar PV system's energy output in Pantano Grande, Brazil (Lat/Long -30.2556, -52.3382) throughout the year, you should tilt your panels at an angle of 26° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Pantano Grande, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Pantano Grande, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 26° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
14° North in Summer	35° North in Autumn	45° North in Winter	23° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Pantano Grande, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Pantano Grande, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Pantano Grande, Brazil

The topography around Pantano Grande, Brazil, is characterized by gently rolling plains and low hills, typical of the southern Brazilian region. Located in the state of Rio Grande do Sul, this area sits within the Pampas biome, a vast expanse of grasslands that extends across southern Brazil, Uruguay, and Argentina. The landscape features modest elevation changes, with altitudes generally ranging between 50 and 150 meters above sea level. The terrain surrounding Pantano Grande consists predominantly of open grasslands interspersed with patches of native forest, particularly along waterways. The Rio Jacuí, a significant river in the region, flows near the town, influencing the local topography by creating shallow valleys and floodplains. This riverine influence has shaped the landscape over millennia, resulting in fertile alluvial soils in the lower-lying areas.

Soil and Vegetation

The soils around Pantano Grande are generally well-drained and moderately fertile, supporting both natural grassland vegetation and agricultural activities. The natural vegetation consists primarily of grasses and scattered shrubs, with taller trees concentrated along water courses. This relatively sparse vegetation cover means that much of the land has good exposure to the sky, with limited natural shading.

Climate Influences on Topography

The climate of the region has played a significant role in shaping the topography. The area experiences a humid subtropical climate with distinct seasons. Rainfall is distributed throughout the year, which has prevented extreme erosion while supporting the development of the grassland ecosystem. The moderate rainfall and temperature patterns have contributed to the gentle weathering of the landscape rather than dramatic erosional features.

Optimal Areas for Solar PV Development

For large-scale solar photovoltaic installations, the most suitable areas near Pantano Grande would be the elevated, gently sloping plains that face northward (as this is the Southern Hemisphere). These areas benefit from maximum sun exposure throughout the day and year. Specifically, the grassland plateaus located to the north and northwest of the town offer ideal conditions due to their minimal shading, good drainage, and stable ground conditions. The slightly elevated areas away from the Rio Jacuí floodplain would be preferable to avoid potential flooding issues and to minimize morning fog effects that can occur in river valleys. These higher grounds also tend to experience less humidity, which can improve the efficiency of solar panels. Areas to avoid would include the immediate vicinity of the river where flooding might occur, densely forested patches that would require clearing, and any steep slopes that face southward, as these receive significantly less direct sunlight in the Southern Hemisphere.

Accessibility Considerations

The relatively flat to gently rolling terrain around Pantano Grande also offers practical advantages for solar development in terms of accessibility and construction feasibility. The existing agricultural roads and infrastructure in this farming region could potentially be leveraged for the development of solar installations, reducing the need for extensive new access routes.

Land Use Context

It's worth noting that much of the land in the region is currently used for agriculture, particularly cattle ranching and crop production. The most suitable areas for solar development would likely be those that are less productive for agriculture or could accommodate dual-use approaches where appropriate. The open nature of the landscape means that large contiguous areas could potentially be available for development, which is advantageous for achieving economies of scale in solar PV installations.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.
