Papanduva, Santa Catarina, Brazil presents a moderately favorable location for year-round solar photovoltaic energy generation, though with notable seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy output at this Southern Sub Tropics location shows significant fluctuation throughout the year. Summer delivers the strongest performance at 6.11 kWh per day per kW of installed capacity, making it the ideal season for solar generation. Spring follows as the second-best period with 4.95 kWh per day per kW, while autumn provides moderate output at 4.51 kWh per day per kW. Winter presents the most challenging conditions for solar generation, dropping to just 3.43 kWh per day per kW of installed capacity. This represents a 44% reduction compared to peak summer performance, which is typical for locations at this latitude in the Southern Hemisphere.

Optimal Installation Configuration

For fixed panel installations at Papanduva, Santa Catarina, the ideal tilt angle to maximize total year-round solar production is 24 degrees facing North. This angle has been calculated by analyzing daily solar elevation angles, determining optimal panel positioning, and weighting these factors using solar irradiance data that accounts for Earth's elliptical orbit patterns.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production at this location and require consideration during installation planning. The region's subtropical climate brings significant rainfall, particularly during summer months when solar output is at its peak. Heavy rains can reduce solar irradiance and create challenges for system maintenance. Additionally, the area may experience occasional hail storms that could damage solar panels if not properly protected. High humidity levels common in subtropical regions can lead to moisture-related issues, including potential corrosion of electrical components and reduced efficiency due to condensation on panel surfaces. The combination of heat and humidity can also accelerate degradation of certain solar panel materials over time.

Preventative Measures for Enhanced Performance

To maximize energy production despite these environmental challenges, several installation strategies should be implemented:

• Install panels with robust mounting systems designed to withstand high winds and potential hail impact
• Use corrosion-resistant materials and proper sealing for all electrical connections to combat humidity effects
• Ensure adequate ventilation behind panels to reduce heat buildup and improve efficiency
• Design drainage systems to prevent water accumulation around ground-mounted installations
• Select panels with appropriate temperature coefficients to maintain performance in high heat conditions

Regular maintenance becomes particularly important in this climate, including periodic cleaning of panels to remove accumulated dirt and debris that rainfall might not fully wash away. Monitoring systems should be installed to quickly identify any performance issues related to weather damage or environmental factors. Despite these challenges, Papanduva's location offers reasonable solar potential, particularly during the warmer months, making it a viable option for solar energy generation with proper planning and installation techniques.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

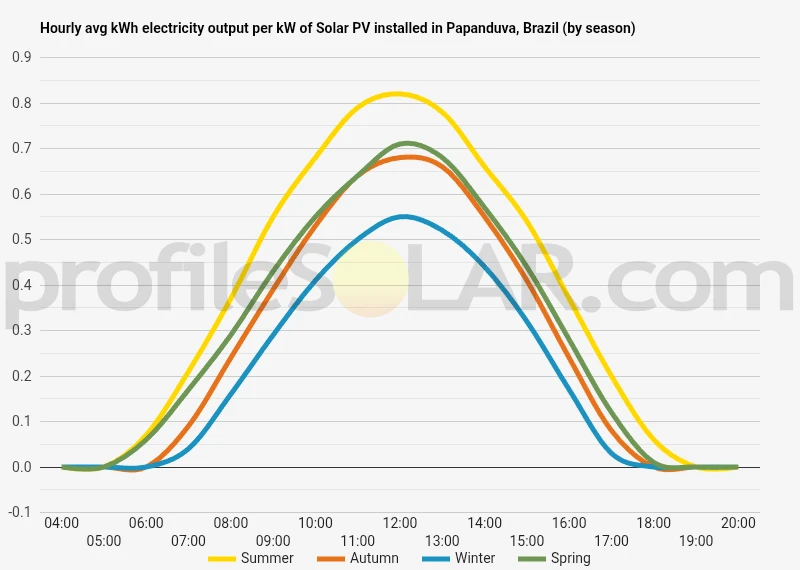

Solar output per kW of installed solar PV by season in Papanduva

Seasonal solar PV output for Latitude: -26.4763, Longitude: -50.1747 (Papanduva, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° North in Papanduva, Brazil

To maximize your solar PV system's energy output in Papanduva, Brazil (Lat/Long -26.4763, -50.1747) throughout the year, you should tilt your panels at an angle of 24° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Papanduva, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Papanduva, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
10° North in Summer	32° North in Autumn	42° North in Winter	19° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Papanduva, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Papanduva, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Papanduva, Brazil

Topographical Features Around Papanduva

Papanduva sits within the mountainous terrain of Santa Catarina's northern region, positioned in the Serra Geral mountain range at an elevation of approximately 800 meters above sea level. The landscape surrounding this municipality is characterized by rolling hills, steep ridges, and deep valleys carved by centuries of water erosion. The topography reflects the broader geological patterns of southern Brazil's highland plateau, where the terrain gradually transitions from the coastal lowlands to the elevated interior. The immediate area around Papanduva features a complex network of ridgelines running predominantly in a north-south direction, with numerous tributary valleys branching eastward and westward. These valleys are often narrow and V-shaped, indicating active erosional processes from the region's numerous small rivers and streams. The elevation changes can be quite dramatic over short distances, with some hillsides rising 200-300 meters from valley floors to ridge crests.

Vegetation and Land Use Patterns

The natural vegetation consists primarily of mixed Araucaria forests, though much of the original forest cover has been cleared for agricultural activities and pine plantations. The remaining forested areas tend to occupy the steeper slopes and ridge tops, while the gentler slopes and valley floors have been converted to pastureland and crop cultivation. This pattern of land use creates a mosaic landscape where cleared areas alternate with forested patches across the undulating terrain. Agricultural activities in the region focus mainly on livestock grazing, corn cultivation, and soybean production, with these activities concentrated in areas where the topography permits mechanized farming. The steeper slopes remain largely unsuitable for intensive agriculture due to erosion concerns and accessibility challenges.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Papanduva would be the broader ridge tops and gently sloping plateaus that offer relatively flat terrain with southern exposure. These elevated areas provide several advantages, including reduced shading from surrounding topographical features and generally better access for construction and maintenance activities. The ridge systems extending north and south of the municipality present the best opportunities, particularly where the terrain flattens into broader plateau areas rather than narrow knife-edge ridges. These locations would minimize the need for extensive grading and earthwork while providing stable foundations for solar arrays. The elevated positions also tend to experience better air circulation, which helps maintain optimal operating temperatures for photovoltaic panels. Areas to avoid would include the steep valley sides, which present challenging installation conditions and potential shading issues from surrounding higher terrain. The narrow valley floors, while relatively flat, often experience morning and evening shadows cast by the surrounding hills, reducing the effective solar collection period throughout the day. The transitional zones between ridge tops and valley floors, where the slope moderates to gentler gradients, could also serve as viable locations for solar development, particularly on south-facing slopes that receive optimal solar exposure. These areas often provide a good compromise between accessibility and solar potential while avoiding the most challenging topographical constraints of the region.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
