Solar Energy Potential in Passos, Minas Gerais, Brazil

Passos, Minas Gerais, Brazil, located at latitude -20.7635 and longitude -46.6187, offers a promising location for solar photovoltaic (PV) energy generation throughout the year. This tropical location benefits from consistent sunlight patterns, making it suitable for solar energy investments. The solar energy output in Passos demonstrates relatively stable production across all four seasons. During summer months, solar panels can generate approximately 6.31 kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 6.08 kWh/day, while autumn yields 5.75 kWh/day. Winter shows the lowest but still substantial production at 5.27 kWh/day per kilowatt installed.

Seasonal Variations and Optimal Production Periods

The relatively small difference between the highest production season (summer) and lowest production season (winter) - just about 1 kWh/day - indicates consistent year-round solar potential. This pattern differs from locations in higher latitudes where seasonal variations can be much more dramatic. The summer and spring months clearly represent the peak production periods, making them ideal times for energy-intensive activities. For fixed panel installations in Passos, Minas Gerais, the ideal angle to maximize year-round solar production is 20 degrees facing North. This specific tilt optimizes the capture of solar radiation throughout the year, accounting for the location's position in the Southern Hemisphere.

Environmental and Weather Considerations

Despite the favorable conditions, several factors may impact solar production in Passos:

• Seasonal rainfall: The region experiences distinct wet and dry seasons, with the wet season potentially reducing solar output due to increased cloud cover.
• Dust accumulation: Agricultural activities and dry periods in the region can lead to dust buildup on panels, gradually reducing efficiency.
• High temperatures: While sunlight is abundant, extreme heat can slightly reduce the efficiency of photovoltaic cells.

Preventative Measures for Optimal Performance

To mitigate these challenges and maximize energy production, several preventative measures can be implemented: Regular panel cleaning should be scheduled, particularly during dry seasons when dust accumulation is highest. Installing panels with sufficient elevation from the ground can reduce dust collection and improve airflow beneath the panels, helping to moderate temperature impacts. Additionally, using high-quality inverters designed to perform well in tropical conditions will ensure optimal conversion efficiency. For larger installations, tracking systems that adjust panel angles throughout the day could further increase energy capture, though this needs to be balanced against the additional maintenance requirements. The consistent year-round production makes Passos an excellent location for solar PV systems, where installations can expect reliable energy generation with relatively minimal seasonal fluctuations.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

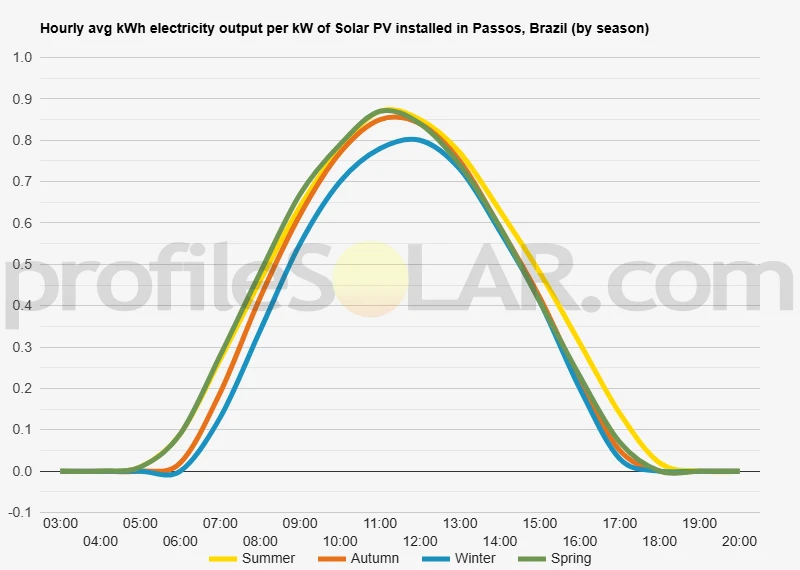

Solar output per kW of installed solar PV by season in Passos

Seasonal solar PV output for Latitude: -20.7635, Longitude: -46.6187 (Passos, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° North in Passos, Brazil

To maximize your solar PV system's energy output in Passos, Brazil (Lat/Long -20.7635, -46.6187) throughout the year, you should tilt your panels at an angle of 20° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Passos, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Passos, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° North in Summer	27° North in Autumn	36° North in Winter	14° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Passos, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Passos, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Passos, Brazil

Topography of Passos, Brazil

Passos is situated in the southwestern region of Minas Gerais state in Brazil. The topography around Passos is characterized by rolling hills and plateaus, typical of the Brazilian Highlands (Planalto Brasileiro). The area sits at an average elevation of approximately 745 meters above sea level, creating a landscape of gentle undulations rather than sharp mountains or flat plains. The region features a mix of open grasslands and scattered woodland areas, with the terrain gradually descending toward the Grande River, which flows near the city. This river is part of the larger Paraná River basin, one of Brazil's major watershed systems. The landscape has been shaped by centuries of erosion, resulting in rounded hilltops and shallow valleys that create a patchwork of elevated areas and depressions.

Soil and Vegetation

The soil composition around Passos is predominantly red latosol, which is characteristic of tropical regions with significant weathering. Natural vegetation in the area belongs to the Cerrado biome, Brazil's tropical savanna, though much of the native vegetation has been modified for agricultural use, particularly coffee plantations and cattle ranching. The transition between the more densely forested areas to the east and the open Cerrado to the west creates a diverse ecological landscape around Passos. This variation in vegetation reflects the subtle changes in elevation and soil conditions across the region.

Potential Areas for Solar PV Development

For large-scale solar photovoltaic installations, the most suitable areas near Passos would be the gently sloping highlands to the north and northwest of the city. These areas offer several advantages: The elevated plateaus receive consistent solar radiation throughout the year, with minimal shading from natural features. The gradual slopes facing north (toward the equator in the Southern Hemisphere) would maximize solar exposure for fixed-tilt panel installations. The southwestern regions of Minas Gerais generally experience less cloud cover than the more eastern portions of the state, particularly during the dry season from April to September. This climatic pattern favors solar energy generation. Several areas of already cleared agricultural land could potentially be repurposed for solar installations, minimizing the need for additional land clearing. The regions between Passos and São Sebastião do Paraíso, approximately 40 kilometers to the north, feature extensive plateaus that would be particularly well-suited. The relatively stable soil conditions of the highlands reduce the risk of erosion or subsidence that might affect solar infrastructure. Additionally, the moderate elevation provides good airflow, which helps maintain optimal operating temperatures for photovoltaic panels. Areas to avoid would include the steeper terrain near water bodies and the more densely vegetated zones, particularly along the Grande River valley to the south. These areas present greater installation challenges and potential environmental impacts.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
