Paty do Alferes, Brazil presents a moderately good location for year-round solar energy generation, though it experiences notable seasonal variation in solar output. Located in the tropics at coordinates -22.4105, -43.4146, this region benefits from consistent sunlight throughout most of the year, with seasons typically characterized by wet and dry periods rather than the temperature extremes found in other climates.

Seasonal Solar Performance

The solar energy production at this location varies significantly across the seasons. Summer delivers the highest output at 6.36 kWh per day per kW of installed solar capacity, making it the ideal time for solar generation. Spring follows as the second-best season with 4.98 kWh/day, while autumn produces 5.19 kWh/day. Winter represents the lowest production period at 4.23 kWh/day per kW installed. For optimal year-round performance, solar panels should be installed at a fixed tilt angle of 21 degrees facing North. This angle maximizes total annual energy production by accounting for the sun's path throughout the year and the Earth's elliptical orbit around the sun.

Environmental Challenges and Solutions

Several environmental factors in Paty do Alferes can impact solar energy production. The tropical climate brings distinct wet and dry seasons, with the wet season potentially reducing solar output due to increased cloud cover and frequent rainfall. Heavy rains can also lead to dust and debris accumulation on solar panels once the weather clears. The region's humidity levels can promote the growth of moss, algae, or other organic matter on panel surfaces, which reduces efficiency over time. Additionally, tropical locations often experience intense UV radiation that can accelerate the degradation of solar panel materials if not properly protected.

Preventative Measures

To maximize energy production despite these challenges, several installation strategies prove effective:

• Install panels with adequate spacing and ventilation to prevent overheating and allow air circulation
• Use high-quality mounting systems resistant to corrosion from humidity and occasional heavy weather
• Implement regular cleaning schedules, particularly after the wet season, to remove accumulated debris
• Choose panels with robust anti-reflective coatings and UV-resistant materials designed for tropical climates
• Consider micro-inverters or power optimizers to minimize the impact when individual panels are partially shaded or dirty

Regular maintenance becomes particularly important in this environment. Monthly visual inspections and quarterly professional cleaning can help maintain optimal performance throughout the year, ensuring that the solar installation continues to deliver reliable energy production despite the challenging tropical conditions.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

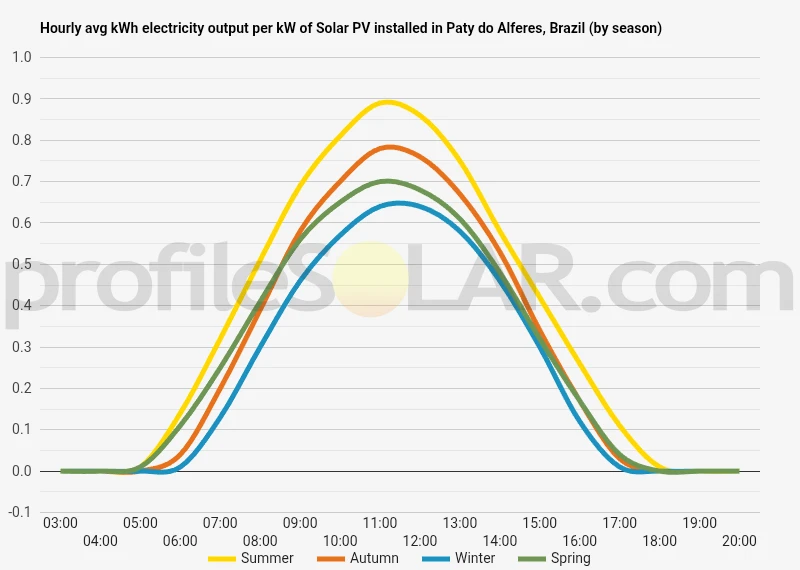

Solar output per kW of installed solar PV by season in Paty Do Alferes

Seasonal solar PV output for Latitude: -22.4105, Longitude: -43.4146 (Paty Do Alferes, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Paty Do Alferes, Brazil

To maximize your solar PV system's energy output in Paty Do Alferes, Brazil (Lat/Long -22.4105, -43.4146) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Paty Do Alferes, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Paty Do Alferes, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	28° North in Autumn	38° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Paty Do Alferes, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Paty Do Alferes, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Paty Do Alferes, Brazil

Topographical Features of Paty do Alferes

The region around Paty do Alferes sits within the mountainous terrain of Rio de Janeiro state, characterized by rolling hills and steep valleys that are typical of Brazil's southeastern highlands. This area forms part of the Serra do Mar mountain range system, where elevations fluctuate dramatically across relatively short distances. The landscape features a complex mixture of ridgelines, gentle slopes, and deep valley floors carved by centuries of water erosion. The municipality itself occupies terrain that ranges from approximately 400 to over 1,200 meters above sea level, creating a varied topographical profile. Many areas display the characteristic undulating patterns of the Atlantic Forest region, with rounded hilltops separated by narrow valleys where small streams and rivers flow toward larger waterways. The terrain becomes progressively more rugged toward the south and east, where the mountains rise more steeply.

Soil and Geological Characteristics

The underlying geology consists primarily of crystalline rocks from the Brazilian Shield, including granite and gneiss formations that have been weathered over millions of years. This geological foundation has created soils that vary significantly depending on slope position and drainage patterns. Valley floors typically contain deeper, more fertile soils that have accumulated sediments from upslope erosion, while hilltops and steep slopes often feature thinner, more rocky soils. The region experiences a tropical highland climate with distinct wet and dry seasons, which has influenced both soil development and vegetation patterns across different elevations and slope orientations. Areas facing south and east tend to retain more moisture and support denser vegetation, while north and west-facing slopes are generally drier and more exposed to direct sunlight.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations in the Paty do Alferes region would be the broader hilltops and gentle upper slopes that offer relatively flat or moderately sloped terrain. These elevated positions provide several advantages including reduced shading from surrounding topography, better air circulation for equipment cooling, and typically less dense vegetation that would require clearing. The northwestern and western-facing slopes at moderate elevations present particularly favorable conditions, as they receive extended direct sunlight exposure throughout the day while avoiding the steepest terrain. Areas between 600 and 900 meters elevation often provide the best compromise between accessibility and suitable topography, offering enough flat or gently sloping land for large installations while remaining accessible for construction and maintenance activities. Valley floors, while flatter, are generally less suitable due to potential flooding risks during heavy rainfall periods, higher humidity levels, and frequent morning fog formation that can reduce solar exposure. The steeper mountainous terrain toward the higher elevations, while offering excellent exposure, presents significant challenges for construction and maintenance access.

Infrastructure and Access Considerations

The existing road network in the region follows the natural topography, with main routes typically running along valley floors and connecting to secondary roads that climb the hillsides. This infrastructure pattern means that potential solar sites on suitable hilltops and slopes often have reasonable access to transportation networks, though some locations may require additional road construction or improvement. The relatively close proximity to Rio de Janeiro's metropolitan area provides advantages for grid connection and equipment transportation, making even moderately remote sites more economically viable than similar locations in more isolated regions. The combination of suitable topography, reasonable access, and proximity to major population centers makes several areas around Paty do Alferes potentially attractive for solar development, particularly those sites that balance flat terrain with good solar exposure and practical accessibility.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
