Pedra Branca, Ceará, Brazil represents an excellent location for year-round solar energy generation. Located in the tropical region at coordinates -5.4934, -39.8526, this area benefits from consistent sunlight throughout most of the year, with seasonal variations characterized more by wet and dry periods rather than significant changes in solar availability.

Solar Energy Production Potential

The solar energy output data for Pedra Branca shows strong performance across all seasons. Summer produces 5.80 kWh per day per kW of installed solar capacity, while autumn increases to 6.05 kWh/day. Winter performance improves further to 6.20 kWh/day, and spring delivers the highest output at 7.00 kWh/day per kW of installed solar. Spring emerges as the optimal season for solar generation at this location, producing approximately 21% more energy than summer. The consistent performance across all seasons, with even the lowest-producing season delivering substantial output, makes this an ideal location for reliable year-round solar energy production.

Optimal Panel Configuration

For fixed panel installations at Pedra Branca, Ceará, the ideal tilt angle to maximize total year-round solar production is 6 degrees North. This relatively shallow angle reflects the location's proximity to the equator and has been calculated by analyzing daily solar elevation angles, optimal panel positioning, and weighting these factors using solar irradiance data that accounts for Earth's elliptical orbit.

Environmental and Weather Challenges

Several environmental factors could potentially impact solar energy production at Pedra Branca:

• Seasonal rainfall patterns: The tropical wet season can bring heavy rains and increased cloud cover, potentially reducing solar irradiance during certain months
• High humidity levels: Tropical climates typically maintain high humidity, which can affect panel efficiency and create condensation issues
• Dust and debris accumulation: Dry seasons may result in dust buildup on solar panels, reducing their efficiency
• Tropical storms: The region may experience intense weather events that could damage installations

Preventative Measures for Optimal Performance

To maximize solar energy production despite these challenges, several installation strategies should be considered:

• Regular cleaning schedules: Implement frequent panel cleaning during dry seasons to remove dust and debris accumulation
• Proper drainage systems: Install adequate drainage around panel arrays to prevent water pooling during heavy rains
• Ventilation considerations: Ensure proper airflow around panels to manage heat buildup and humidity effects
• Robust mounting systems: Use hurricane-rated mounting hardware designed to withstand tropical storm conditions
• Tilt optimization: The recommended 6-degree northward tilt also helps with natural rain-washing of panels during wet seasons

Despite these potential challenges, Pedra Branca's strong and consistent solar output throughout all seasons makes it a highly favorable location for solar energy investment, provided that appropriate installation and maintenance practices are followed.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

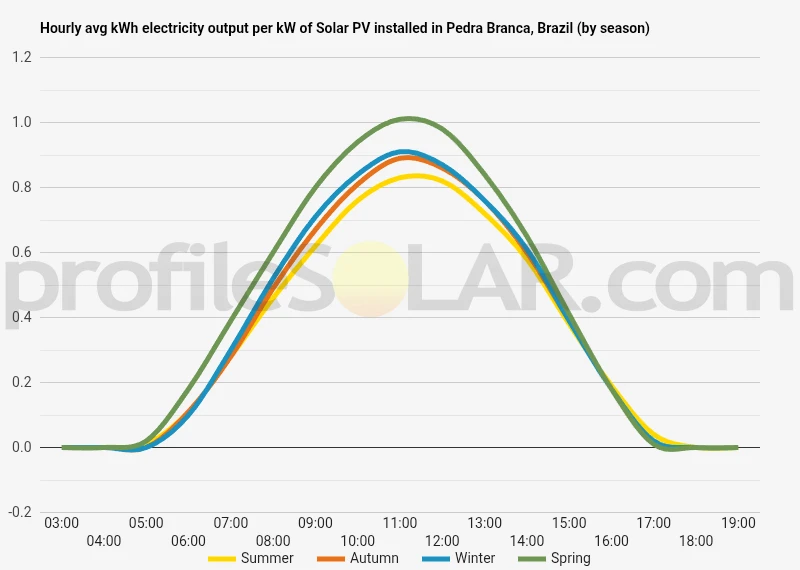

Solar output per kW of installed solar PV by season in Pedra Branca

Seasonal solar PV output for Latitude: -5.4934, Longitude: -39.8526 (Pedra Branca, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 6° North in Pedra Branca, Brazil

To maximize your solar PV system's energy output in Pedra Branca, Brazil (Lat/Long -5.4934, -39.8526) throughout the year, you should tilt your panels at an angle of 6° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Pedra Branca, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Pedra Branca, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 6° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
10° South in Summer	12° North in Autumn	21° North in Winter	0° in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Pedra Branca, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Pedra Branca, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Pedra Branca, Brazil

Topographical Overview of Pedra Branca Region

The area surrounding Pedra Branca in Brazil's Ceará state features predominantly flat to gently rolling terrain characteristic of the semi-arid interior of northeastern Brazil. This region sits within the broader Caatinga biome, where the landscape consists of low-lying plains punctuated by occasional small hills and rocky outcroppings. The elevation remains relatively consistent across the area, with gradual undulations rather than steep slopes or dramatic elevation changes. The terrain is generally well-drained due to the region's climate patterns, with sparse vegetation consisting mainly of drought-resistant shrubs and scattered trees typical of the Caatinga ecosystem. The soil composition includes areas of exposed bedrock and sandy soils, creating a landscape that experiences minimal shading from tall vegetation. Rocky formations and small escarpments appear intermittently throughout the region, though they do not dominate the overall topography.

Optimal Areas for Large-Scale Solar Development

The expansive flat plains extending in multiple directions from Pedra Branca present excellent opportunities for large-scale solar photovoltaic installations. These areas offer the dual advantages of minimal grading requirements and unobstructed sky access, both crucial factors for maximizing solar energy capture and reducing installation costs. The most suitable locations would be the broad, level expanses to the east and southeast of the town, where the terrain remains consistently flat for several kilometers. These areas feature minimal topographical obstacles and sparse vegetation that would not significantly interfere with solar panel placement or maintenance access. The natural drainage patterns in these flat areas also reduce concerns about water accumulation around solar installations. Areas with gentle southern-facing slopes, where they exist, could provide additional benefits for solar panel positioning, though the predominantly flat nature of the region means such opportunities are limited. The key advantage lies in the extensive areas of level ground that can accommodate large solar arrays without requiring substantial earthwork or terrain modification. The western approaches to Pedra Branca also show promise, featuring similar flat characteristics with good accessibility for construction and maintenance vehicles. These areas maintain the same sparse vegetation patterns and stable soil conditions that make them well-suited for supporting the infrastructure requirements of utility-scale solar installations.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
