Pedro Afonso, Tocantins, Brazil represents an excellent location for year-round solar photovoltaic energy generation. Located in the tropical region, this area benefits from consistent sunlight throughout most of the year, with seasonal variations characterized more by wet and dry periods rather than the temperature-based seasons found in temperate climates.

Solar Energy Production Potential

The solar energy output data for Pedro Afonso demonstrates strong and consistent performance across all seasons. Winter emerges as the peak production period, generating 6.59 kWh per day per kW of installed solar capacity. Spring follows closely with 6.09 kWh/day per kW, while autumn produces 5.84 kWh/day per kW. Even during the lowest production season of summer, the location still generates a respectable 5.43 kWh/day per kW. This seasonal pattern is typical for locations in the Southern Hemisphere tropics, where winter months often provide clearer skies and optimal sun angles for solar collection. The relatively small variation between seasons (approximately 1.16 kWh difference between peak and lowest production) indicates reliable year-round solar generation potential. For optimal energy capture, solar panels should be installed at a fixed tilt angle of 10 degrees facing north. This angle has been calculated to maximize total annual solar production by accounting for the sun's path throughout the year and the location's specific latitude.

Environmental and Weather Factors

Several environmental factors could potentially impact solar energy production in Pedro Afonso and require consideration during installation planning. The tropical wet season presents the most significant challenge to solar generation. During these periods, increased cloud cover, frequent rainfall, and higher humidity levels can reduce solar irradiance reaching the panels. Heavy rainfall, while beneficial for cleaning panels naturally, can also create temporary shading from storm clouds and reduce overall daily production. Dust and debris accumulation poses another concern, particularly during dry seasons when rainfall is insufficient to naturally clean panel surfaces. The tropical environment may also lead to faster vegetation growth around solar installations, potentially creating shading issues if not properly managed.

Preventative Measures and Installation Strategies

Several strategies can help maximize solar energy production despite these environmental challenges:

• Install panels with adequate spacing and proper drainage systems to prevent water pooling and ensure efficient runoff during heavy rains
• Implement regular cleaning schedules during dry periods to remove dust, pollen, and other debris that accumulate on panel surfaces
• Design installations with sufficient clearance from ground level and maintain vegetation management around the solar array
• Consider using panel mounting systems that allow for easy access for maintenance and cleaning
• Install monitoring systems to track performance and identify when cleaning or maintenance is needed

Despite these considerations, Pedro Afonso's consistently high solar production values throughout the year indicate that the location's advantages far outweigh the potential challenges. With proper installation techniques and maintenance practices, solar PV systems in this location can achieve excellent year-round performance and provide reliable renewable energy generation.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

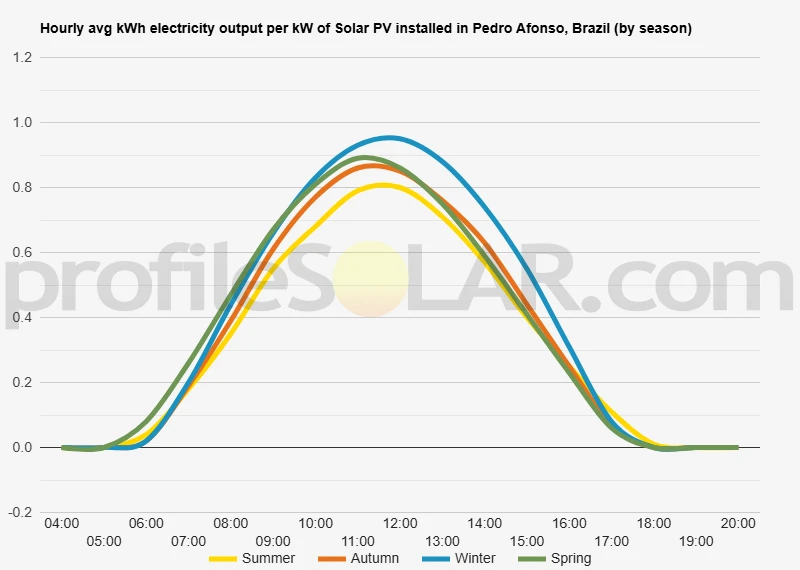

Solar output per kW of installed solar PV by season in Pedro Afonso

Seasonal solar PV output for Latitude: -9.2062, Longitude: -47.978 (Pedro Afonso, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 10° North in Pedro Afonso, Brazil

To maximize your solar PV system's energy output in Pedro Afonso, Brazil (Lat/Long -9.2062, -47.978) throughout the year, you should tilt your panels at an angle of 10° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Pedro Afonso, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Pedro Afonso, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 10° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° South in Summer	16° North in Autumn	25° North in Winter	4° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Pedro Afonso, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Pedro Afonso, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Pedro Afonso, Brazil

Topographical Features of Pedro Afonso

Pedro Afonso sits within the Brazilian state of Tocantins, positioned in a region characterized by gently rolling terrain typical of the Brazilian Cerrado savanna. The landscape around this municipality features relatively modest elevation changes, with the terrain gradually undulating across broad, open plains. The area lies within the central Brazilian plateau system, where elevations typically range from 200 to 400 meters above sea level, creating a landscape that is neither mountainous nor completely flat. The region displays the classic characteristics of tropical savanna topography, with scattered low hills and broad valleys that drain toward the Tocantins River system. These gentle slopes and wide expanses of relatively level ground are interspersed with seasonal watercourses and small tributaries that flow primarily during the wet season. The terrain shows evidence of ancient geological processes that have worn down more dramatic topographical features over millions of years, leaving behind the subdued relief visible today.

Vegetation and Land Use Patterns

The natural vegetation consists primarily of Cerrado grasslands and scattered gallery forests along waterways. Much of the original savanna has been converted to agricultural use, particularly cattle ranching and crop cultivation. This agricultural conversion has created large open areas with minimal tree cover, which significantly influences the suitability of different zones for solar development. The remaining forested areas tend to concentrate along river corridors and in small patches on slightly elevated terrain. These gallery forests create natural corridors through the landscape but occupy a relatively small percentage of the total land area. The predominant land cover consists of pastureland and agricultural fields, with scattered rural settlements and infrastructure connecting to larger regional centers.

Optimal Areas for Large-Scale Solar Development

The most promising locations for extensive solar photovoltaic installations would be the broad, gently sloping plains that extend in multiple directions from Pedro Afonso. These areas offer several advantages including minimal grading requirements, excellent accessibility for construction and maintenance vehicles, and reduced environmental impact compared to steeper or more ecologically sensitive terrain. The agricultural lands that have already been cleared and modified present particularly attractive opportunities for solar development. These areas typically feature good soil stability, established access routes, and proximity to existing electrical infrastructure. The gentle topography means that large solar arrays can be installed with consistent panel orientation and minimal shading between rows. Areas with south-facing gentle slopes would be especially well-suited for solar installations, as they can maximize exposure to direct sunlight throughout the day. The broad valley floors and elevated plateaus both offer extensive flat to gently rolling terrain that could accommodate utility-scale solar farms spanning hundreds or thousands of hectares.

Infrastructure and Accessibility Considerations

The region benefits from reasonable transportation infrastructure, with highways connecting Pedro Afonso to major regional centers. This existing road network would facilitate the transport of solar equipment and materials to potential development sites. The relatively flat terrain also means that new access roads can be constructed with minimal earthwork and environmental disruption. Proximity to existing electrical transmission infrastructure represents another important factor in site selection. Areas near existing power lines and substations would offer significant advantages in terms of grid connection costs and complexity. The gentle topography throughout much of the region means that multiple suitable sites likely exist within reasonable distances of existing electrical infrastructure.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
