Penalva, Maranhão, Brazil presents an excellent location for year-round solar energy generation, with consistently high electricity output throughout all seasons. Located in the tropical region at coordinates -3.2306, -45.1302, this area benefits from reliable sunlight availability across the entire year.

Solar Energy Output Performance

The solar energy production data for Penalva shows remarkably stable performance across all meteorological seasons. Summer produces 5.27 kWh per day per kW of installed solar capacity, while autumn increases slightly to 5.70 kWh/day. Winter performance reaches 5.85 kWh/day, and spring delivers the highest output at 5.88 kWh/day per kW installed. This consistent performance pattern makes Penalva an ideal location for solar installations, as the variation between seasons is minimal - only about 0.6 kWh difference between the lowest and highest producing seasons. The slight increase in production during winter and spring months is particularly advantageous for maintaining reliable energy generation year-round.

Optimal Panel Configuration

For maximum energy production at this location, solar panels should be installed at a fixed tilt angle of 4 degrees facing North. This optimal angle is calculated by analyzing daily solar elevation angles, determining optimal panel positioning, and weighting these calculations using solar irradiance data while accounting for Earth's elliptical orbit patterns.

Environmental and Weather Considerations

Several significant factors could impact solar energy production in Penalva and require careful consideration during installation planning. The tropical climate brings intense seasonal rainfall during wet periods, which can reduce solar irradiance and potentially cause water accumulation on panels. Heavy tropical storms and high humidity levels are common environmental challenges that can affect both immediate production and long-term equipment performance. High ambient temperatures throughout the year can reduce solar panel efficiency, as photovoltaic cells typically perform less efficiently in extreme heat. The combination of heat and humidity also accelerates equipment degradation and can lead to corrosion issues with mounting hardware and electrical connections. Dust accumulation during dry seasons presents another challenge, as airborne particles can significantly reduce panel efficiency by blocking sunlight from reaching the photovoltaic cells.

Preventative Installation Measures

Several installation strategies can help maximize energy production despite these environmental challenges:

• Install panels with adequate spacing and ventilation underneath to promote air circulation and reduce operating temperatures
• Use corrosion-resistant mounting materials specifically rated for tropical marine environments
• Design panel mounting systems with sufficient tilt to promote natural rainwater cleaning and prevent water pooling
• Implement regular cleaning schedules during dry seasons to remove dust accumulation
• Choose high-quality panels with better temperature coefficients that maintain efficiency in hot conditions

Proper drainage systems around installations and weatherproof electrical connections rated for high humidity environments are essential for long-term reliability. Additionally, selecting equipment with robust warranties that account for tropical operating conditions will help ensure sustained performance over the system's lifetime.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

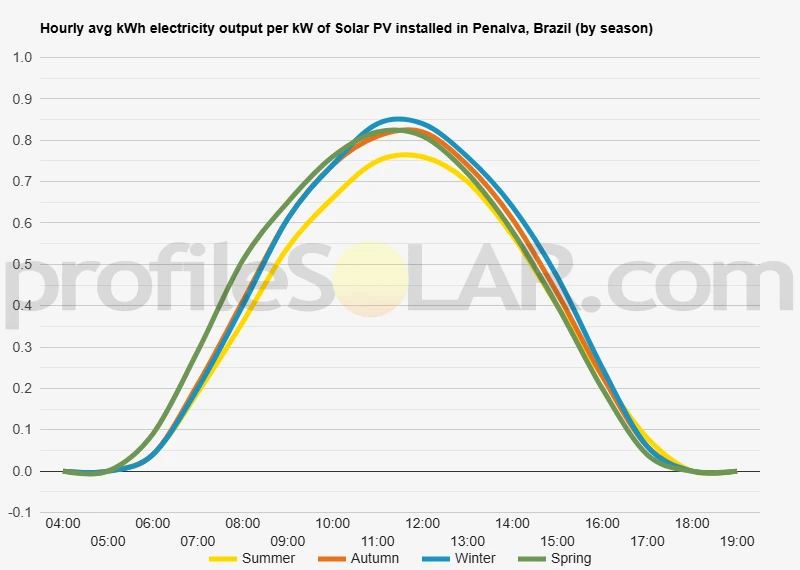

Solar output per kW of installed solar PV by season in Penalva

Seasonal solar PV output for Latitude: -3.2306, Longitude: -45.1302 (Penalva, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 4° North in Penalva, Brazil

To maximize your solar PV system's energy output in Penalva, Brazil (Lat/Long -3.2306, -45.1302) throughout the year, you should tilt your panels at an angle of 4° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Penalva, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Penalva, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 4° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
13° South in Summer	10° North in Autumn	19° North in Winter	3° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Penalva, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Penalva, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Penalva, Brazil

Topographical Features of the Penalva Region

Penalva sits within the Maranhão state of northeastern Brazil, positioned in a region characterized by relatively flat to gently rolling terrain typical of the Brazilian coastal lowlands. The immediate area around Penalva features predominantly low-lying topography with elevations generally ranging from sea level to modest hills of several hundred meters. This landscape forms part of the broader Maranhão coastal plain, which extends inland from the Atlantic Ocean and creates expansive areas of relatively uniform elevation.

The terrain surrounding Penalva consists primarily of sedimentary formations that have been shaped by centuries of weathering and erosion. These geological processes have resulted in a landscape with gentle slopes and broad, open spaces interrupted occasionally by small river valleys and seasonal wetlands. The region experiences a transition between the Amazon basin influences to the west and the more arid northeastern Brazilian climate patterns to the east, creating a unique environmental setting.

Local waterways, including small rivers and seasonal streams, create minor variations in the otherwise consistent topography. These water features typically flow through shallow valleys that add subtle undulation to the landscape without creating significant elevation changes or steep gradients that would complicate large-scale development projects.

Optimal Areas for Solar Development

The flat to gently rolling terrain immediately surrounding Penalva presents excellent opportunities for large-scale solar photovoltaic installations. Areas located on the slightly elevated plateaus and broad ridges offer the most advantageous conditions, as these locations provide natural drainage while maintaining relatively level ground suitable for solar panel arrays. These elevated areas also tend to experience better air circulation, which can help maintain optimal operating temperatures for photovoltaic equipment.

The expansive open areas to the northeast and southeast of Penalva appear particularly well-suited for solar development due to their combination of flat terrain, good drainage characteristics, and minimal interference from existing infrastructure or natural obstacles. These zones benefit from consistent topography that would allow for efficient installation and maintenance of solar arrays while providing adequate space for the support infrastructure required for large-scale solar facilities.

Areas with gentle south-facing slopes in the region would be especially favorable for solar installations, as these orientations can optimize energy capture throughout the day. The relatively stable geological conditions and absence of significant elevation changes in these areas would also minimize construction challenges and reduce the need for extensive site preparation or grading work.

Locations that should be avoided for large-scale solar development include the lower-lying areas near seasonal waterways and wetlands, where flooding risks and unstable soil conditions could compromise equipment and infrastructure. Similarly, any areas with steeper slopes or irregular terrain would present installation challenges and potentially reduce the efficiency of solar array positioning.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.
