Penha, Santa Catarina, Brazil, located in the Southern Sub Tropics at coordinates -26.8042, -48.6287, offers reasonably good conditions for year-round solar energy generation, though with notable seasonal variations that potential solar installers should understand.

Seasonal Solar Performance

The location experiences significant seasonal fluctuations in solar energy output. Summer delivers the strongest performance at 6.11 kWh per day per kW of installed solar capacity, making it the prime season for solar generation. Spring follows as the second-best period with 4.49 kWh per day per kW, while autumn provides moderate output at 4.40 kWh per day per kW. Winter presents the most challenging conditions, with solar output dropping to just 3.26 kWh per day per kW of installed capacity. This represents nearly a 50% reduction compared to peak summer performance, which is typical for locations in the Southern Hemisphere's subtropical regions.

Optimal Installation Configuration

For maximum year-round energy production at this Penha location, solar panels should be installed at a fixed tilt angle of 24 degrees facing North. This optimal angle is calculated by analyzing daily solar elevation angles throughout the year and weighting them according to solar irradiance potential, accounting for Earth's elliptical orbit around the sun.

Environmental and Weather Considerations

Several local factors in Penha could potentially impact solar energy production and should be considered during installation planning:

• Coastal Salt Air: Being located near the Atlantic coast, salt-laden air can cause corrosion of metal components and create salt film buildup on panel surfaces, reducing efficiency over time
• High Humidity: The subtropical coastal climate brings elevated humidity levels that can promote mold growth and accelerate equipment degradation
• Tropical Storms: The region may experience severe weather events including strong winds and heavy rainfall during certain seasons
• Marine Layer Clouds: Coastal fog and low-lying clouds, particularly during cooler months, can reduce solar irradiance

Preventative Installation Measures

To maximize solar energy production and system longevity in Penha's coastal subtropical environment, several protective measures should be implemented: Choose marine-grade aluminum mounting systems and stainless steel hardware specifically designed to resist salt corrosion. Apply anti-corrosive coatings to all metal components and ensure proper grounding systems are installed to handle the conductive nature of salt air. Install panels with robust tempered glass surfaces and consider anti-soiling coatings that help shed salt deposits and organic matter. Regular cleaning schedules become particularly important in this environment to maintain optimal light transmission. Design mounting systems to withstand higher wind loads typical of coastal areas, and ensure adequate drainage to handle heavy tropical rainfall. Proper ventilation behind panels helps combat humidity-related issues and maintains cooler operating temperatures for better efficiency. Select inverters and electrical components with higher IP ratings for moisture protection, and consider marine-grade electrical enclosures. Installing surge protection devices becomes crucial due to the increased lightning activity common in subtropical coastal regions.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

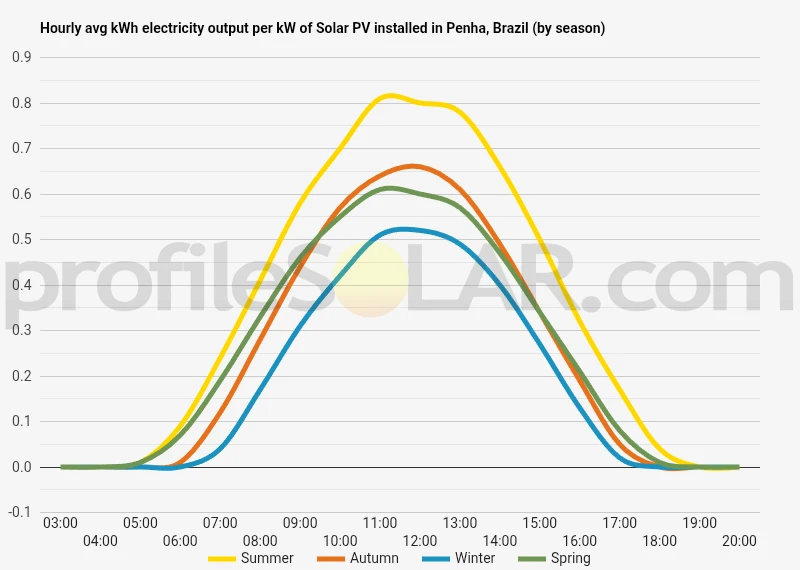

Solar output per kW of installed solar PV by season in Penha

Seasonal solar PV output for Latitude: -26.8042, Longitude: -48.6287 (Penha, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° North in Penha, Brazil

To maximize your solar PV system's energy output in Penha, Brazil (Lat/Long -26.8042, -48.6287) throughout the year, you should tilt your panels at an angle of 24° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Penha, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Penha, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
11° North in Summer	32° North in Autumn	43° North in Winter	19° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Penha, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Penha, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Penha, Brazil

Topography Around Penha, Brazil

Penha is situated in the state of Santa Catarina along Brazil's southern Atlantic coast, where the landscape presents a diverse mix of coastal plains, rolling hills, and gentle valleys. The immediate area around the city features relatively flat to gently undulating terrain typical of the coastal lowlands, with elevations generally ranging from sea level to approximately 200 meters above sea level. This coastal plain extends inland for several kilometers before gradually giving way to more pronounced topographical features.

Moving inland from Penha, the terrain becomes increasingly varied with a series of low hills and ridges that form part of the broader Atlantic Plateau system. These elevations create a naturally terraced landscape with numerous south-facing slopes that benefit from excellent solar exposure throughout the day. The region's topography is characterized by broad, gentle slopes rather than steep mountainous terrain, making it particularly suitable for large-scale development projects.

The coastal influence moderates the local climate, while the inland areas experience more continental characteristics. The landscape is punctuated by several river valleys and drainage systems that flow toward the Atlantic Ocean, creating natural corridors of flatter land between the rolling hills. These valley floors and adjacent gentle slopes provide extensive areas of relatively level ground that could accommodate substantial solar installations.

Optimal Areas for Large-Scale Solar Development

The most promising locations for large-scale solar photovoltaic installations around Penha would be the inland areas situated approximately 10 to 30 kilometers west and northwest of the city center. These zones offer the ideal combination of gentle topography, adequate elevation for drainage, and sufficient distance from the immediate coastal zone to avoid potential salt air corrosion issues while still benefiting from the region's favorable climate conditions.

Particularly suitable areas include the broad valley floors and gentle south-facing slopes found in the municipalities adjacent to Penha, where the terrain transitions from coastal plains to the foothills of the Atlantic Plateau. These locations typically feature gradual inclines of less than 5 degrees, which minimize the need for extensive grading while providing optimal solar panel orientation. The rolling nature of this landscape also offers natural windbreaks and drainage patterns that can benefit large solar installations.

The elevated areas between 100 and 300 meters above sea level present especially attractive opportunities, as they combine relatively flat or gently sloping terrain with good natural drainage and reduced risk of flooding. These higher elevations also tend to experience slightly lower humidity levels compared to the immediate coastal zone, which can improve the efficiency and longevity of photovoltaic equipment.

Areas to the west and southwest of Penha are particularly noteworthy, where the landscape opens into broader valleys and plateaus that could accommodate utility-scale solar farms spanning several hundred hectares. The agricultural character of much of this inland region means that large parcels of relatively undeveloped land may be available, and the existing road infrastructure provides reasonable access for construction and maintenance activities.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
