Piedade, São Paulo, Brazil presents a moderately good location for year-round solar PV energy generation, though with notable seasonal variations that potential solar installers should consider carefully.

Seasonal Solar Performance

The solar energy output at this Southern Sub Tropical location shows clear seasonal patterns. Summer delivers the strongest performance at 6.56 kWh per day per kW of installed solar capacity, making it the peak generation period. Spring follows as the second-best season with 5.90 kWh per day per kW, while autumn drops to 5.28 kWh per day per kW. Winter represents the lowest production period at 4.39 kWh per day per kW of installed capacity. This seasonal variation means that summer and spring are the ideal times for maximum solar generation, producing approximately 33% more energy than the winter months. The difference between peak summer and lowest winter output is significant, with summer generating nearly 50% more energy than winter.

Optimal Panel Installation

For fixed panel installations at Piedade, São Paulo, the ideal tilt angle to maximize total year-round solar production is 22 degrees facing North. This angle has been calculated to optimize energy capture across all seasons by accounting for the sun's changing position throughout the year and weighting the angles based on actual solar irradiance data.

Environmental and Weather Factors

Several local factors could potentially impact solar production efficiency at this location:

• High humidity levels typical of subtropical climates can reduce panel efficiency and create more frequent cleaning requirements
• Seasonal rainfall patterns may cause temporary reductions in output and increase the need for regular panel maintenance
• Potential for tropical storms or heavy weather events during certain seasons
• Dust and organic debris accumulation from the subtropical environment

Preventative Measures for Optimal Performance

To maximize energy production despite these environmental challenges, several installation strategies should be considered:

• Install panels with adequate spacing to allow proper air circulation and cooling
• Implement regular cleaning schedules, particularly during drier months when dust accumulation is highest
• Use high-quality mounting systems designed to withstand subtropical weather conditions
• Consider anti-soiling coatings on panels to reduce maintenance frequency
• Ensure proper drainage around installations to prevent water pooling during heavy rainfall
• Install monitoring systems to quickly identify performance drops due to environmental factors

Overall, while Piedade offers reasonable solar potential year-round, the subtropical climate requires careful planning and maintenance to achieve optimal energy production from solar PV installations.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

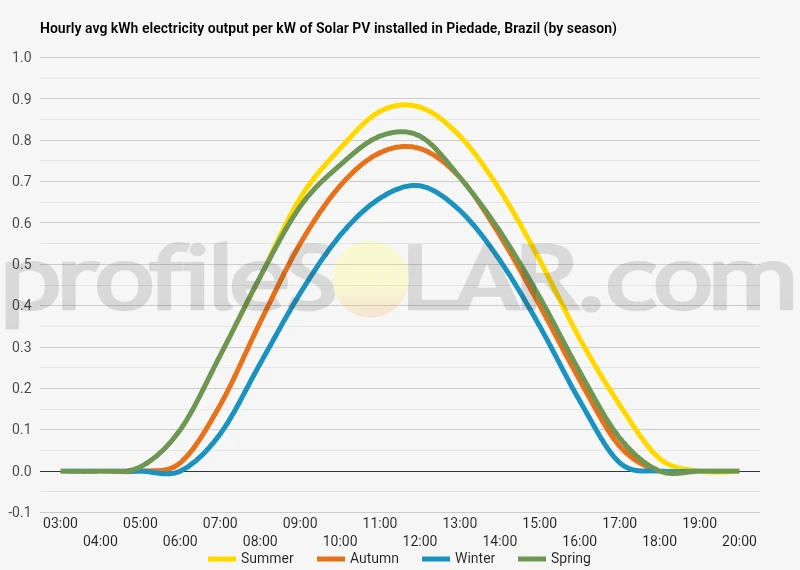

Solar output per kW of installed solar PV by season in Piedade

Seasonal solar PV output for Latitude: -23.8099, Longitude: -47.4314 (Piedade, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 22° North in Piedade, Brazil

To maximize your solar PV system's energy output in Piedade, Brazil (Lat/Long -23.8099, -47.4314) throughout the year, you should tilt your panels at an angle of 22° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Piedade, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Piedade, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 22° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
8° North in Summer	29° North in Autumn	39° North in Winter	17° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Piedade, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Piedade, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Piedade, Brazil

Topographic Characteristics of Piedade Region

The area around Piedade, located in the southeastern Brazilian state of São Paulo, sits within the Atlantic Plateau region, characterized by rolling hills and moderate elevation changes. This municipality lies approximately 100 kilometers southwest of São Paulo city, positioned at an altitude of around 850 meters above sea level. The landscape features a mix of gentle slopes and undulating terrain typical of the Serra de Paranapiacaba foothills. The topography consists primarily of rounded hills and broad valleys, with elevation variations generally ranging between 700 and 1,000 meters throughout the immediate vicinity. These gradual elevation changes create natural drainage patterns that flow toward the Sorocaba River basin. The terrain shows evidence of ancient geological processes, with weathered crystalline rocks underlying much of the surface, covered by layers of fertile soil that have supported agricultural activities for generations. Local relief patterns include numerous small watersheds and creek valleys that cut through the landscape, creating a network of natural depressions and ridgelines. The area experiences typical Atlantic Forest biome characteristics, though much of the original vegetation has been cleared for agricultural and urban development over time.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be the elevated plateaus and gentle south-facing slopes that dominate the northern and western portions of the Piedade municipality. These areas offer relatively flat to gently sloping terrain that minimizes construction costs while providing excellent solar exposure throughout the day. The higher elevation zones, particularly those above 900 meters, present ideal conditions due to their reduced atmospheric interference and consistent wind patterns that help maintain optimal panel temperatures. These elevated areas also tend to have fewer trees and less agricultural activity, making land acquisition potentially more straightforward for large-scale developments. Areas with slopes between 5 and 15 degrees facing south or southwest would be particularly advantageous, as they naturally optimize solar panel positioning without requiring extensive ground preparation. The region's well-drained soils and stable geological foundation provide excellent conditions for mounting systems and infrastructure development. The western sections of Piedade, where the terrain opens into broader valleys with gentle rolling hills, offer the most promising locations for utility-scale solar farms. These areas combine favorable topographic conditions with proximity to existing transmission infrastructure along major transportation corridors. The natural elevation and open landscape characteristics minimize shading concerns while providing adequate space for large arrays and maintenance access roads.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
