Solar Energy Potential in Pilar, Alagoas, Brazil

Pilar, Alagoas, Brazil, located at latitude -9.6159 and longitude -36.0594, offers excellent conditions for solar energy generation throughout the year. This tropical location benefits from consistent sunlight patterns, making it a promising site for solar photovoltaic (PV) installations. The seasonal energy output shows significant potential across all times of the year. During spring, solar panels can generate their highest output at approximately 7.02 kWh per day for each kilowatt of installed capacity. Summer follows closely with 6.86 kWh/day, while autumn produces 5.67 kWh/day. Winter shows the lowest but still substantial output at 4.87 kWh/day per kilowatt of installed capacity.

Optimal Panel Positioning

For fixed solar panel installations in Pilar, Alagoas, the ideal tilt angle to maximize year-round energy production is 8 degrees facing North. This specific angle has been calculated to optimize the capture of solar radiation throughout the year, taking into account the location's position in the Southern Hemisphere and seasonal variations in the sun's path.

Seasonal Variations and Planning

The data reveals that spring and summer are the peak production periods in Pilar, Alagoas, making these seasons particularly valuable for energy generation. However, the relatively small difference between the highest and lowest seasonal outputs (only about 2.15 kWh/day between spring and winter) demonstrates the location's consistent solar potential throughout the year.

Environmental and Weather Considerations

Several factors could potentially impact solar production in Pilar:

• Heavy rainfall during the wet season can reduce solar efficiency due to cloud cover and panel soiling. Installing panels at the optimal angle helps with natural cleaning during rain events, while scheduled maintenance may be necessary during transitional periods.
• High humidity levels in this tropical location can potentially cause accelerated degradation of electrical components. Using humidity-resistant equipment and proper enclosures for inverters and connections is recommended.
• Dust accumulation, particularly during dry seasons, can reduce panel efficiency by up to 10%. Implementing regular cleaning protocols or automated cleaning systems can mitigate this issue.

Despite these considerations, Pilar's consistent solar radiation throughout the year makes it an ideal location for solar PV installations. The relatively minimal seasonal variation compared to locations at higher latitudes means that system sizing can be more efficient, with less need to oversize to compensate for poor production months.

Implementation Recommendations

For maximum energy harvest in this location, consider using bifacial panels that can capture reflected light, particularly effective in areas with high ambient light. Additionally, incorporating simple tracking systems could further boost energy production beyond the already favorable fixed-panel output, though this would need to be evaluated against the increased maintenance requirements in the tropical climate.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

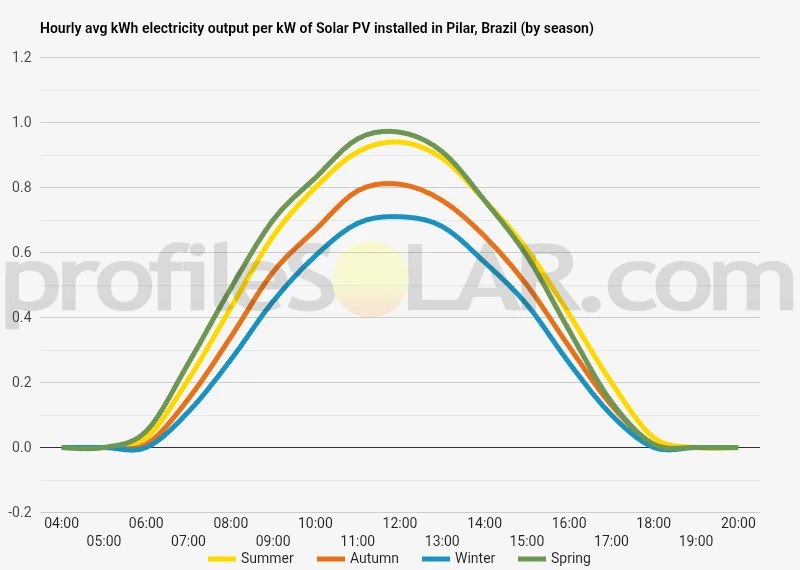

Solar output per kW of installed solar PV by season in Pilar

Seasonal solar PV output for Latitude: -9.6159, Longitude: -36.0594 (Pilar, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 8° North in Pilar, Brazil

To maximize your solar PV system's energy output in Pilar, Brazil (Lat/Long -9.6159, -36.0594) throughout the year, you should tilt your panels at an angle of 8° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Pilar, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Pilar, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 8° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° South in Summer	15° North in Autumn	25° North in Winter	3° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Pilar, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Pilar, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Pilar, Brazil

The region around Pilar, Brazil, situated in the northeastern state of Alagoas, presents a varied topographical landscape characterized by a mixture of rolling hills, plateaus, and lowland areas. This municipality lies within the Zona da Mata alagoana, a transitional zone between the coastal plains and the more elevated interior regions. The terrain gradually rises from the east, where it borders the São Miguel dos Campos municipality, toward the western boundaries.

Topographical Features

The eastern portions of the Pilar region feature relatively flat to gently undulating terrain, with elevations typically ranging between 40 to 100 meters above sea level. As one moves westward, the landscape becomes more pronounced with more significant hills and valleys formed by centuries of erosion from the local river systems, primarily the Paraíba do Meio river which flows through the region. The northern sections of Pilar exhibit more pronounced relief with steeper slopes in some areas, while the southern portions tend to have more gradual inclines. This variation creates a mosaic of microclimates and drainage patterns throughout the region. The natural topography has been somewhat modified in places by agricultural activities, particularly sugarcane cultivation which has historically been important to the local economy.

Soil Composition

The soils around Pilar generally consist of clay-rich compositions in the lower elevations, while the higher areas often feature more sandy and less fertile soils. This variation influences not only the natural vegetation but also presents different engineering challenges for construction projects, including renewable energy installations.

Optimal Areas for Solar PV Development

For large-scale solar photovoltaic development, the most suitable areas near Pilar would be the gently sloping plateaus and elevated flatlands located primarily in the western and southwestern portions of the region. These areas offer several advantages: The elevated plateaus provide good exposure to solar radiation throughout the day, with minimal shadowing from surrounding topography. The western zones, approximately 5-10 kilometers from Pilar's center, feature extensive areas of relatively flat terrain with slopes generally less than 5%, which is ideal for solar PV installation as it minimizes earthwork requirements and associated costs. Additionally, the northwestern sector contains several cleared areas previously used for agriculture that would be suitable for conversion to solar farms. These locations have already experienced some level of land modification, potentially simplifying the permitting and development process. The southern plateaus, while slightly more undulating, also present viable opportunities, particularly in areas where the land rises to form small mesas with good drainage and stable soil conditions. These locations would require moderate terrain adjustments but offer excellent exposure conditions. Areas to avoid include the steeper eastern slopes and any low-lying regions near the Paraíba do Meio river and its tributaries, which may be subject to seasonal flooding or have higher humidity levels that could impact equipment longevity and performance.

Access and Infrastructure Considerations

The northeastern Brazilian power grid has connection points accessible from several locations around Pilar, with the most robust infrastructure following the main transportation corridors. The AL-210 highway that passes through the region provides reasonable access to many of the topographically suitable areas, reducing the need for extensive new access road construction. The combination of favorable topography, existing cleared land, and proximity to transportation and transmission infrastructure makes the western and southwestern plateaus of the Pilar region particularly promising for large-scale solar PV development, with potential capacity for significant renewable energy generation that could serve both local needs and contribute to the broader regional grid.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
