Pimenta, Minas Gerais, Brazil presents a very good location for year-round solar photovoltaic energy generation. Located in the tropics at coordinates -20.4827, -45.8366, this area benefits from consistent sunlight throughout most of the year, with seasons characterized more by wet and dry periods rather than significant temperature variations.

Solar Energy Output Performance

The solar energy production at Pimenta shows strong performance across all seasons. Summer delivers the highest output at 6.49 kWh per day per kW of installed solar capacity, making it the peak generation period. Spring follows as the second-best season with 6.10 kWh per day per kW, while autumn produces 5.86 kWh per day per kW. Winter shows the lowest but still substantial output of 5.29 kWh per day per kW. The relatively small variation between seasons - only about 1.2 kWh difference between the best and worst performing seasons - demonstrates the location's reliability for consistent solar energy production throughout the year.

Optimal Installation Configuration

For maximum year-round solar production at Pimenta, Minas Gerais, fixed solar panels should be installed at an ideal tilt angle of 20 degrees facing North. This angle is calculated by analyzing daily solar elevation angles at this latitude, determining optimal panel positioning, and weighting these angles using solar irradiance data while accounting for Earth's elliptical orbit around the sun.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production at this tropical location:

• Heavy rainfall during wet seasons can reduce solar irradiance and create cloudy conditions
• High humidity levels may cause moisture-related equipment issues
• Dust accumulation during dry periods can reduce panel efficiency
• Tropical storms or severe weather events could damage installations

Preventative Measures for Optimal Performance

To maximize solar energy production despite these challenges, several installation strategies should be implemented:

• Install panels with adequate drainage systems to handle heavy rainfall
• Use moisture-resistant electrical components and proper sealing
• Design easy access for regular cleaning to remove dust and debris
• Implement robust mounting systems capable of withstanding strong winds
• Consider anti-soiling coatings on panels to reduce dust adhesion
• Install monitoring systems to quickly identify performance issues

Regular maintenance scheduling becomes particularly important in tropical climates, with more frequent cleaning recommended during dry seasons and thorough inspections following heavy weather periods. Despite these considerations, Pimenta's consistent solar output throughout the year makes it an excellent location for solar PV installations, with proper planning and maintenance ensuring reliable energy generation.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

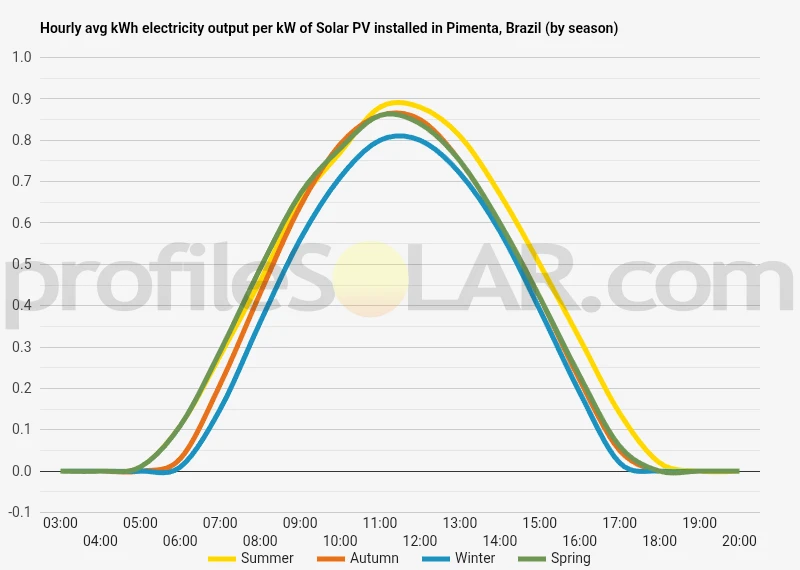

Solar output per kW of installed solar PV by season in Pimenta

Seasonal solar PV output for Latitude: -20.4827, Longitude: -45.8366 (Pimenta, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° North in Pimenta, Brazil

To maximize your solar PV system's energy output in Pimenta, Brazil (Lat/Long -20.4827, -45.8366) throughout the year, you should tilt your panels at an angle of 20° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Pimenta, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Pimenta, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° North in Summer	26° North in Autumn	36° North in Winter	14° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Pimenta, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Pimenta, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Pimenta, Brazil

Topographical Features of the Pimenta Region

Pimenta is situated in the southeastern Brazilian state of Minas Gerais, nestled within the Brazilian Highlands plateau region. The terrain around this municipality is characterized by gently rolling hills and elevated plains that form part of the broader Mantiqueira mountain system. The landscape features a series of undulating ridges and valleys, with elevations typically ranging from 800 to 1,200 meters above sea level.

The topography displays a mix of moderate slopes and relatively flat plateau areas, creating a mosaic of terrain that varies from steep hillsides to more gentle inclines. The region sits within the headwaters of several tributaries that eventually flow toward the São Francisco River basin, resulting in a network of small valleys carved by seasonal waterways. These drainage patterns have created a landscape of rounded hills separated by shallow depressions and broader valley floors.

The geological foundation consists primarily of ancient crystalline rocks and weathered granite formations, which have been shaped over millions of years into the current rolling topography. This underlying geology contributes to the generally stable terrain with well-drained soils, though the weathering processes have also created areas of varying soil depth and composition across the landscape.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations around Pimenta would be the broader plateau areas and gently sloping hillsides with southern and southeastern exposures. These elevated plains offer several advantages, including relatively flat terrain that minimizes grading and construction costs while providing consistent solar exposure throughout the day.

The wider valley floors present excellent opportunities for large-scale solar farms, as they typically feature more uniform topography and easier access for construction equipment and maintenance vehicles. These areas also tend to have fewer obstacles such as steep slopes or rocky outcroppings that could complicate installation processes.

Hillsides with gradual slopes facing south or southeast would be particularly well-suited for solar development, as the natural angle of the terrain can complement the optimal tilt angles for photovoltaic panels. The elevated nature of much of the surrounding landscape also helps minimize potential shading issues from adjacent terrain features.

Areas to potentially avoid for large-scale installations include the steeper hillsides and narrow valley bottoms where seasonal water flow might create drainage concerns. The more rugged terrain with significant elevation changes would require extensive site preparation and could present ongoing maintenance challenges for solar equipment.

The region's position on the Brazilian Highlands plateau provides natural advantages for solar development, including good air circulation that helps keep panel temperatures moderate and generally clear sightlines that reduce potential shading from surrounding topographical features. The stable geological conditions also provide solid foundations for mounting systems and infrastructure development.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.
