Solar Energy Potential in Pinheirinho do Vale, Brazil

Pinheirinho do Vale, Brazil, situated in the Southern Sub Tropics, offers promising conditions for solar PV energy generation throughout the year, though with notable seasonal variations. This location experiences significant differences in solar energy production across the four meteorological seasons. Solar energy production at this location peaks during the summer months, with panels capable of generating an impressive 7.33kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season, yielding 6.01kWh/day. Autumn sees a moderate decrease to 5.07kWh/day, while winter represents the annual low point with 3.74kWh/day per kilowatt installed.

Optimizing Panel Installation

For fixed solar panel installations in Pinheirinho do Vale, the ideal tilt angle to maximize year-round energy production is 24 degrees facing North. This specific angle has been calculated by analyzing solar elevation patterns at this latitude, weighted by the daily PV potential throughout the year. The substantial difference between summer and winter production (nearly double) suggests that seasonal adjustments to panel angles could be beneficial for installations where manual tilting is possible. However, the fixed 24-degree north-facing orientation offers the best compromise for year-round energy generation without requiring ongoing adjustments.

Environmental Considerations

Several environmental factors could potentially impact solar production at this Southern Sub Tropics location:

• Seasonal rainfall patterns, particularly during spring and summer months, may temporarily reduce solar output. Installing panels with good drainage and self-cleaning properties can minimize production losses.
• Dust and pollen accumulation is common in this agricultural region, potentially reducing panel efficiency by 5-15% if not addressed. Regular cleaning schedules, especially during drier periods, are recommended.
• Morning fog or mist may occur in valley areas, particularly during autumn and winter. Installing panels at slightly elevated locations when possible can help mitigate this issue.

Temperature considerations are also important, as panel efficiency decreases slightly with higher temperatures. Ensuring adequate airflow beneath panels can help maintain optimal operating temperatures, particularly during the intense summer months when production potential is highest. With proper installation addressing these environmental factors, Pinheirinho do Vale represents a viable location for solar energy production, with particularly strong generation potential from late spring through early autumn.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

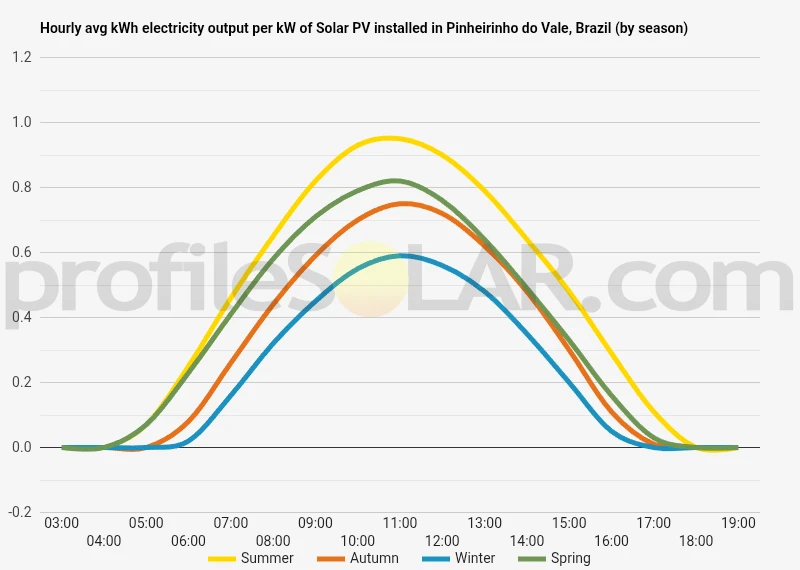

Solar output per kW of installed solar PV by season in Pinheirinho Do Vale

Seasonal solar PV output for Latitude: -27.2264, Longitude: -53.6335 (Pinheirinho Do Vale, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° North in Pinheirinho Do Vale, Brazil

To maximize your solar PV system's energy output in Pinheirinho Do Vale, Brazil (Lat/Long -27.2264, -53.6335) throughout the year, you should tilt your panels at an angle of 24° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Pinheirinho Do Vale, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Pinheirinho Do Vale, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
11° North in Summer	32° North in Autumn	42° North in Winter	20° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Pinheirinho Do Vale, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Pinheirinho Do Vale, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Pinheirinho Do Vale, Brazil

Pinheirinho do Vale nestles in the northwestern region of Rio Grande do Sul state in southern Brazil. The topography of this area is characterized by gently rolling hills interspersed with shallow valleys, creating a landscape of moderate relief. The region sits within the larger Uruguay River basin, with the municipality itself positioned approximately 10 kilometers east of the Uruguay River, which forms the border between Brazil and Argentina.

Landform Features

The terrain around Pinheirinho do Vale displays a transition between the more elevated plateaus of eastern Rio Grande do Sul and the lower river valley of the Uruguay. Elevations in the immediate vicinity typically range between 200 and 400 meters above sea level, with gradual slopes rather than steep escarpments. This undulating landscape has been shaped by centuries of erosion from the numerous streams and small rivers that flow westward toward the Uruguay River. The soil composition tends toward fertile red clay soils (latosols) that support the region's agricultural activities. Natural vegetation in undeveloped areas consists primarily of subtropical Atlantic Forest remnants and grasslands, though much of the original vegetation has been modified for agricultural use.

Hydrography

The area features a network of small streams and tributaries that eventually feed into the Uruguay River. These waterways have carved shallow valleys throughout the landscape, creating natural drainage systems. During rainy seasons, these watercourses can swell significantly, influencing local microclimates and soil moisture levels.

Solar PV Suitability

For large-scale solar photovoltaic installations, several nearby areas present favorable conditions: The gently sloping hillsides with southern exposures throughout the municipality offer potential sites that balance good solar incidence with minimal earthwork requirements. These areas, particularly those with slopes between 2-10 degrees facing north (toward the equator in the Southern Hemisphere), would maximize solar gain while minimizing land preparation costs. The slightly elevated plateaus to the east of Pinheirinho do Vale, extending toward neighboring municipalities like Frederico Westphalen, provide relatively flat terrain that would be well-suited for extensive solar arrays. These locations offer the advantage of fewer shadowing effects from surrounding topography and good drainage characteristics. Agricultural lands that have been previously cleared present opportunities for dual-use development, where solar installations could coexist with certain types of farming. These areas already have reduced vegetation concerns and often have existing access roads. Areas to avoid include the steeper slopes near stream valleys, flood-prone lowlands near the Uruguay River, and any remaining forest fragments that serve important ecological functions. Additionally, areas with highly erodible soils on steeper gradients would require more extensive civil engineering work, potentially increasing project costs. The regional road network, centered around RS-472 and connecting routes, provides reasonable access to potential development sites, an important consideration for construction and maintenance of large-scale solar facilities.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
