Pio XII, Maranhão, Brazil represents an excellent location for year-round solar energy generation. This tropical location benefits from consistent sunlight throughout most of the year, with seasons characterized more by wet and dry periods rather than the dramatic temperature variations seen in other climates.

Solar Energy Production Potential

The solar energy output data for Pio XII shows remarkably consistent performance across all seasons. During summer, solar panels can be expected to generate 5.27 kWh per day for each kW of installed capacity. This output actually improves as the year progresses, with autumn producing 5.70 kWh/day, winter reaching 5.85 kWh/day, and spring delivering the highest output at 5.88 kWh/day per kW of installed solar capacity. The best times for solar generation at this location are during the winter and spring months, when output peaks at nearly 5.9 kWh per day per installed kW. However, the variation between seasons is relatively small, making this location ideal for consistent year-round energy production. For optimal performance, solar panels should be installed at a fixed tilt angle of 4 degrees facing north. This specific angle has been calculated to maximize total annual solar output by accounting for the sun's path throughout the year and the location's proximity to the equator.

Environmental and Weather Challenges

Several environmental factors could potentially impact solar production at this tropical location:

• Heavy rainfall during wet seasons can reduce solar irradiance and create temporary drops in energy output
• High humidity levels may promote faster accumulation of dirt, dust, and organic matter on panel surfaces
• Frequent cloud cover during rainy periods can cause fluctuations in daily energy generation
• Dense vegetation growth in the tropical climate could create shading issues if not properly managed

Preventative Measures for Optimal Performance

To ensure maximum energy production despite these challenges, several installation strategies should be considered:

• Install panels with adequate spacing and mounting systems that allow for easy cleaning and maintenance access
• Implement regular cleaning schedules, particularly during and after wet seasons when organic buildup is most likely
• Ensure proper site preparation by clearing vegetation and maintaining clear zones around solar installations to prevent shading
• Consider slightly steeper mounting angles or self-cleaning panel surfaces to help rainwater wash away accumulated debris
• Use high-quality inverters and monitoring systems that can handle the humidity and temperature variations typical of tropical climates

Despite these considerations, the consistently high solar output throughout the year makes Pio XII an exceptionally favorable location for solar energy investment, with proper installation and maintenance practices ensuring optimal long-term performance.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

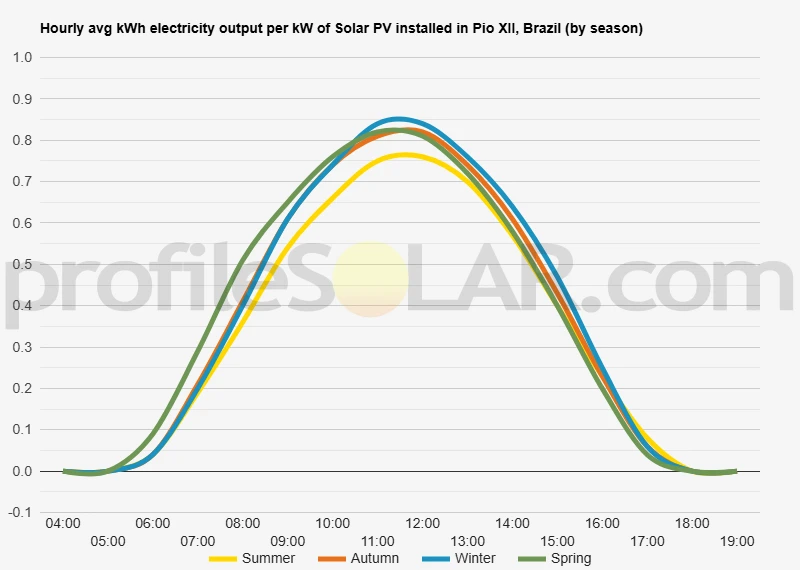

Solar output per kW of installed solar PV by season in Pio XII

Seasonal solar PV output for Latitude: -3.7989, Longitude: -45.2459 (Pio XII, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 4° North in Pio XII, Brazil

To maximize your solar PV system's energy output in Pio XII, Brazil (Lat/Long -3.7989, -45.2459) throughout the year, you should tilt your panels at an angle of 4° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Pio XII, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Pio XII, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 4° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° South in Summer	10° North in Autumn	20° North in Winter	2° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Pio XII, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Pio XII, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Pio XII, Brazil

Topographical Features Around Pio XII, Brazil

Pio XII is located in the state of Maranhão in northeastern Brazil, positioned within a region characterized by relatively flat to gently undulating terrain. The area sits at a modest elevation of approximately 100 to 200 meters above sea level, forming part of the Brazilian Plateau's northeastern extension. This landscape consists primarily of low-lying plains interspersed with occasional low hills and gentle ridges that rarely exceed 300 meters in height.

The topography is dominated by expansive areas of cerrado savanna, which features naturally open grasslands dotted with scattered trees and shrubs. These vast, relatively level expanses are broken up by shallow valleys carved by seasonal streams and small rivers that flow toward the Atlantic Ocean. The terrain generally slopes very gradually from south to north, with minimal elevation changes across large distances.

The region's geological foundation consists mainly of sedimentary rocks and ancient crystalline formations that have been weathered over millions of years, creating a stable substrate with minimal seismic activity. Rolling hills with gentle slopes are common throughout the area, but steep gradients or dramatic elevation changes are notably absent from this part of Maranhão.

Optimal Areas for Large-Scale Solar Development

The extensive flat to gently rolling plains surrounding Pio XII present excellent opportunities for large-scale solar photovoltaic installations. The most suitable areas lie to the east and southeast of the town, where vast stretches of open cerrado provide unobstructed terrain with minimal topographical constraints. These areas offer the dual advantages of level ground that requires minimal grading and natural clearings that reduce vegetation removal costs.

The broad plateaus extending northward toward the coast represent another prime location for solar development. These elevated but relatively flat areas benefit from consistent wind patterns that help with panel cooling while maintaining easy accessibility for construction and maintenance vehicles. The stable geological conditions throughout this region minimize foundation requirements and reduce long-term settlement concerns.

Areas with gentle south-facing slopes, particularly those found in the rolling hills west and southwest of Pio XII, could be especially valuable for solar installations. These natural inclines can be advantageous for optimal panel positioning while still maintaining manageable construction conditions. The key is identifying slopes that are gradual enough to allow standard mounting systems while avoiding areas with excessive grade changes that would complicate installation.

The region's well-drained soils and stable weather patterns make most of the surrounding countryside technically suitable for solar development, though areas closer to seasonal waterways should be evaluated for potential flooding risks during the rainy season. The absence of significant forested areas in much of the immediate vicinity reduces environmental impact concerns and simplifies site preparation processes.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!

Citation Guide

Article Details for Citation

Tell Us About Your Work

We love seeing how our research helps others! If you've cited this article in your work, we'd be delighted to hear about it. Drop us a line via our Contact Us page or on X, to share where you've used our information - we may feature a link to your work on our site. This helps create a network of valuable resources for others in the solar energy community and helps us understand how our research is contributing to the field. Plus, we occasionally highlight exceptional works that reference our research on our social media channels.

Feeling generous?

Share this with your friends!

Compare this location to others worldwide for solar PV potential

The solar PV analyses available on our website, including this one, are offered as a free service to the global community. Our aim is to provide education and aid informed decision-making regarding solar PV installations.

However, please note that these analyses are general guidance and may not meet specific project requirements. For in-depth, tailored forecasts and analysis crucial for feasibility studies or when pursuing maximum ROI from your solar projects, feel free to contact us; we offer comprehensive consulting services expressly for this purpose.
