Piquete, São Paulo, Brazil, located in the tropics at a latitude of -22.5958 and longitude of -45.1626, offers generally favorable conditions for solar PV energy production throughout the year. This location experiences relatively consistent sunlight patterns typical of tropical regions, where seasonal changes are more defined by wet and dry periods rather than dramatic temperature or daylight variations.

Seasonal Solar Production

Solar PV systems in Piquete demonstrate good year-round performance with seasonal variations. Summer months yield the highest energy output at 6.26kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 5.75kWh/day, while autumn generates 5.38kWh/day. Winter, though less productive, still maintains a respectable 4.82kWh/day per kW installed.

The relatively small difference between summer and winter production (approximately 23%) indicates that Piquete offers consistent solar potential throughout the year, making it suitable for year-round solar energy generation without extreme seasonal fluctuations that might necessitate seasonal backup power sources.

Optimal Panel Installation

For fixed solar panel installations in Piquete, São Paulo, the ideal tilt angle to maximize year-round energy production is 21 degrees facing North. This specific angle has been calculated to optimize solar capture across seasonal variations, accounting for the Earth's elliptical orbit and the site's tropical latitude.

Environmental and Weather Considerations

Several environmental factors may affect solar production in Piquete:

• Tropical rainfall patterns, particularly during the wet season, can temporarily reduce solar output due to cloud cover and direct rainfall on panels
• High humidity levels may cause accelerated degradation of equipment if not properly protected
• Dust and pollen accumulation from the surrounding vegetation can gradually decrease panel efficiency

To mitigate these challenges, installations should incorporate several preventative measures. Panels should be mounted with adequate drainage systems to prevent water accumulation. Using corrosion-resistant mounting hardware and weather-sealed junction boxes will extend system life in the humid environment. Regular cleaning schedules should be implemented, particularly before and after the wet season, to remove accumulated dust and organic matter.

Additionally, incorporating micro-inverters or power optimizers can help minimize the impact of partial shading from passing clouds, which is common in tropical regions with afternoon convective cloud formation.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

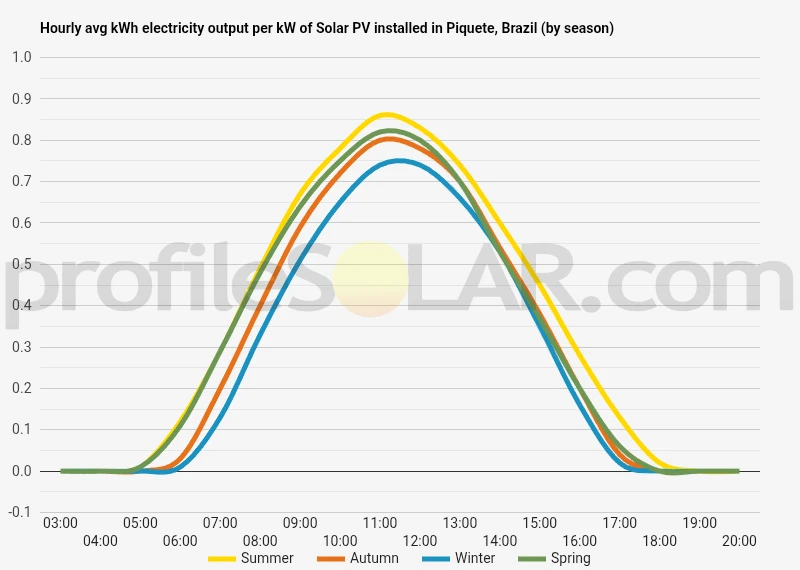

Solar output per kW of installed solar PV by season in Piquete

Seasonal solar PV output for Latitude: -22.5958, Longitude: -45.1626 (Piquete, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Piquete, Brazil

To maximize your solar PV system's energy output in Piquete, Brazil (Lat/Long -22.5958, -45.1626) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Piquete, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Piquete, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° North in Summer	28° North in Autumn	38° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Piquete, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Piquete, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Piquete, Brazil

The topography surrounding Piquete, Brazil is characterized by its location within the Serra da Mantiqueira mountain range, a significant geological feature that extends through the states of São Paulo, Minas Gerais, and Rio de Janeiro. This mountainous region creates a varied and dramatic landscape around Piquete, with elevations ranging considerably throughout the area. Piquete itself sits in a valley at approximately 645 meters above sea level, surrounded by higher elevations that can reach over 1,200 meters in the nearby mountains. The terrain is predominantly hilly to mountainous, with steep slopes in many areas. The Paraíba do Sul River flows near the town, contributing to the formation of valleys between the mountain ridges. The vegetation in this region consists largely of Atlantic Forest remnants, though much has been cleared for agriculture and urban development. The remaining forested areas tend to be concentrated on steeper slopes and higher elevations where development has been more difficult.

Solar PV Potential Areas

For large-scale solar photovoltaic installations, the most suitable areas near Piquete would be found in the flatter, more open terrain that exists in pockets throughout the region. The valley floors and gentler slopes offer better potential for solar development than the steep mountainsides that characterize much of the immediate surroundings. Specifically, the areas to the south and southeast of Piquete, extending toward Lorena and Guaratinguetá, feature more gradually sloping terrain that would be better suited for solar installations. These lower-elevation areas have fewer obstructions from the mountains and therefore potentially better solar exposure. The plateaus and gentler hillsides that can be found scattered throughout the region also present opportunities for solar development. These areas offer the advantage of relatively flat terrain while still being elevated enough to avoid some of the morning fog that can collect in the lowest parts of the valleys. It's worth noting that while the mountainous topography might initially seem challenging for solar development, it also creates microclimates that can be advantageous. Some south-facing slopes (in the Southern Hemisphere) receive consistent sun exposure throughout the day and year, potentially making them suitable for solar installations despite their incline, provided appropriate engineering solutions are implemented. The areas to avoid would be the densely forested northern slopes, deep valleys where shadows from surrounding mountains limit direct sunlight, and the steepest terrain where construction would be prohibitively difficult or environmentally damaging.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
