Pirajuba, Minas Gerais, Brazil offers excellent conditions for year-round solar energy generation, making it a highly suitable location for solar PV installations. Located in the tropics at coordinates -19.9374, -48.7006, this region benefits from consistent sunlight throughout most of the year, with seasons typically characterized by wet and dry periods rather than dramatic temperature variations.

Seasonal Solar Performance

The solar energy output at Pirajuba shows strong performance across all seasons. Summer delivers the highest production at 6.75 kWh per day for each kilowatt of installed solar capacity. Spring follows closely behind with 6.26 kWh/day, while autumn generates 5.82 kWh/day. Even during winter, the location maintains solid output at 5.35 kWh/day per kilowatt installed. This consistent performance throughout the year makes Pirajuba an ideal location for solar energy projects. The relatively small variation between seasons - only about 26% difference between the highest and lowest producing seasons - means solar installations can provide reliable energy generation year-round.

Optimal Panel Configuration

For fixed panel installations at this location, the ideal tilt angle to maximize total year-round solar production is 19 degrees facing North. This angle is calculated by analyzing daily solar elevation angles, determining optimal panel positions, and weighting these angles based on solar irradiance data while accounting for Earth's elliptical orbit around the sun.

Environmental Factors and Mitigation Strategies

Several environmental factors in Pirajuba could potentially impact solar energy production, though most can be effectively managed with proper installation practices. The tropical climate brings distinct wet and dry seasons, with the rainy season potentially causing temporary reductions in solar output due to cloud cover. However, the seasonal production data shows that even during lower-output periods, generation remains substantial. Rain can actually benefit solar installations by naturally cleaning dust and debris from panel surfaces. Dust accumulation during dry periods represents a more significant concern, as it can reduce panel efficiency by blocking sunlight. Regular cleaning schedules and anti-soiling coatings can help maintain optimal performance. Installing panels at the recommended 19-degree tilt also helps with natural cleaning during rainfall. High humidity levels common in tropical regions may accelerate corrosion of metal components if not properly protected. Using marine-grade materials, proper grounding systems, and corrosion-resistant mounting hardware helps ensure long-term system reliability.

Installation Best Practices

To maximize energy production at this location, several preventative measures should be implemented:

• Install panels with adequate ventilation underneath to prevent overheating and maintain efficiency
• Use high-quality inverters with good heat dissipation designed for tropical climates
• Implement proper drainage systems to handle heavy rainfall without water pooling around equipment
• Choose panels and components rated for high humidity and temperature variations
• Establish regular maintenance schedules for cleaning and inspection, particularly before and after rainy seasons

Overall, Pirajuba presents an excellent opportunity for solar energy generation with relatively minor environmental challenges that can be effectively addressed through proper system design and maintenance practices.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

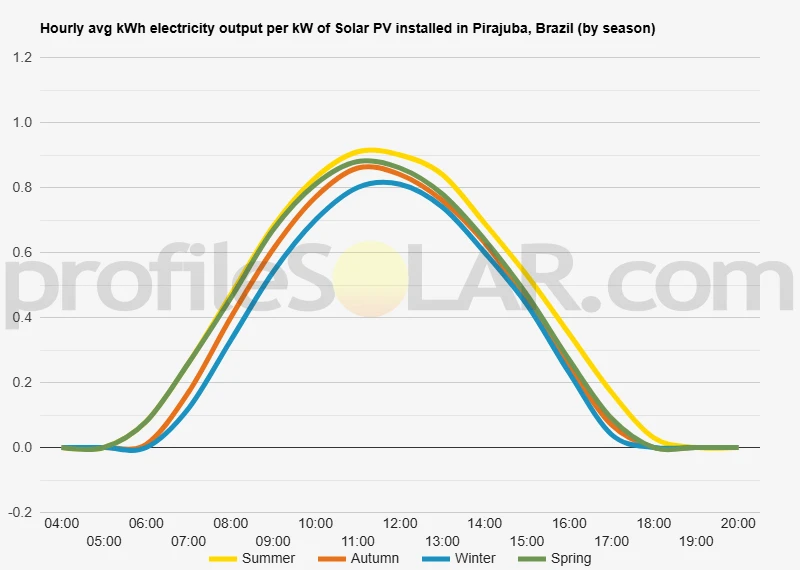

Solar output per kW of installed solar PV by season in Pirajuba

Seasonal solar PV output for Latitude: -19.9374, Longitude: -48.7006 (Pirajuba, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 19° North in Pirajuba, Brazil

To maximize your solar PV system's energy output in Pirajuba, Brazil (Lat/Long -19.9374, -48.7006) throughout the year, you should tilt your panels at an angle of 19° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Pirajuba, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Pirajuba, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
4° North in Summer	26° North in Autumn	36° North in Winter	14° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Pirajuba, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Pirajuba, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Pirajuba, Brazil

Regional Topography and Landscape

Pirajuba sits within the Brazilian Highlands region of Minas Gerais state, characterized by gently rolling hills and undulating terrain typical of the country's central plateau. The landscape around this coordinates features moderate elevation changes with scattered low ridges and broad valleys that create a mosaic of agricultural land and natural vegetation. The terrain generally slopes gradually toward drainage systems, with most slopes being gentle enough to support various land uses including farming and potential renewable energy installations.

The surrounding area displays the classic cerrado landscape transition, where open grasslands intermingle with patches of woodland and agricultural fields. This creates a relatively open environment with good exposure to sky conditions, though scattered trees and vegetation provide some visual relief across the landscape. The topography lacks dramatic elevation changes or steep mountainous terrain, instead presenting a more subdued relief pattern that characterizes much of interior Minas Gerais.

Drainage and Water Features

The regional drainage pattern consists of small streams and seasonal watercourses that flow through the gentle valleys between the low hills. These waterways typically follow the natural topographic lows, creating ribbon-like corridors of riparian vegetation that stand out against the more open surrounding landscape. During wet seasons, these drainage areas may experience temporary flooding, while dry periods can leave some of the smaller channels completely dry.

The presence of these water features creates both opportunities and constraints for large-scale development. While they provide necessary water resources for cleaning and maintenance operations, they also represent areas that must be avoided or carefully managed in any major installation planning.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be found on the broader, flatter sections of the interfluves - the elevated areas between the drainage valleys. These locations typically offer the most consistent slopes, minimal shading from topographic features, and reduced risk of flooding or drainage issues. The gentle ridgetops and upper slope positions provide excellent exposure while maintaining relatively stable ground conditions.

Areas with south-facing slopes would be particularly valuable, as they receive optimal sun exposure throughout the day in this southern hemisphere location. The moderate relief means that even installations on sloped terrain would not require excessive grading or terracing, keeping development costs reasonable while maintaining good panel orientation possibilities.

The agricultural areas that occupy much of the flatter terrain could potentially be converted or shared with solar installations, particularly those sections that are currently used for extensive grazing or lower-intensity farming. These areas already have some infrastructure access and have been cleared of native vegetation, reducing both environmental impact and preparation costs for solar development.

Avoiding the immediate vicinity of the drainage corridors would be essential, both to protect riparian ecosystems and to prevent potential flood damage to installations. The slightly elevated positions away from these low-lying areas would provide better long-term stability and reduced maintenance requirements for any large-scale solar infrastructure.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.
