Pirapetinga, Minas Gerais, Brazil represents a reasonably good location for year-round solar PV energy generation, though it falls short of being ideal compared to some other tropical locations. Located in Brazil's tropical region, this area benefits from consistent sunlight throughout most of the year, with seasonal variations driven more by wet and dry periods than the dramatic temperature changes seen in temperate climates.

Seasonal Solar Performance

The solar energy output at Pirapetinga varies significantly across the seasons. Summer delivers the strongest performance at 6.45kWh per day per kW of installed solar capacity, making it the optimal time for solar generation. Spring follows as the second-best season with 5.17kWh/day per kW, while autumn produces 5.40kWh/day per kW. Winter presents the most challenging period for solar generation, dropping to 4.49kWh/day per kW of installed capacity. This represents a notable 30% decrease from peak summer output, indicating that seasonal weather patterns do impact solar efficiency at this location. For maximum year-round energy production, solar panels should be installed at a fixed tilt angle of 20 degrees facing North. This optimal angle is calculated by analyzing daily solar elevation angles throughout the year and weighting them according to solar irradiance data to maximize total annual output.

Environmental Challenges and Solutions

Several environmental factors at Pirapetinga could potentially impede solar energy production. The tropical climate brings distinct wet and dry seasons, with the rainy period likely contributing to the reduced winter solar output through increased cloud cover and atmospheric moisture. High humidity levels common in tropical regions can lead to moisture-related issues with solar equipment, potentially causing corrosion of metal components and degradation of electrical connections over time. The combination of heat and humidity also creates ideal conditions for biological growth, such as algae, mold, or lichen on panel surfaces. Dust accumulation during dry periods can significantly reduce panel efficiency by blocking sunlight from reaching the photovoltaic cells. In agricultural areas like those around Pirapetinga, Minas Gerais, airborne particles from farming activities may contribute additional contamination to solar installations.

Preventative Installation Measures

Several strategies can help maximize solar energy production despite these environmental challenges:

• Install panels with adequate ventilation spacing to promote air circulation and reduce moisture buildup
• Use marine-grade or tropical-rated mounting hardware and electrical components designed to withstand high humidity
• Apply anti-reflective and hydrophobic coatings to panel surfaces to reduce soiling and improve water runoff
• Implement regular cleaning schedules, particularly before and after rainy seasons
• Design drainage systems to prevent water pooling around installation areas

Regular maintenance becomes particularly important in this tropical environment. Monthly visual inspections and quarterly professional cleaning can help identify and address issues before they significantly impact energy production. Installing monitoring systems allows for real-time tracking of performance, making it easier to detect when environmental factors are affecting output efficiency. Despite these challenges, Pirapetinga's consistent tropical sunlight and reasonable seasonal variation make it a viable location for solar PV installations, provided that proper environmental considerations are incorporated into the system design and maintenance planning.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

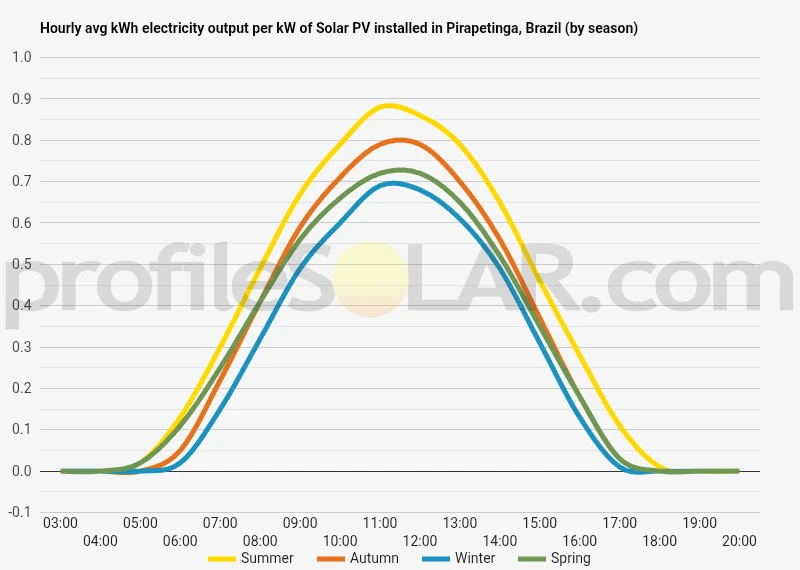

Solar output per kW of installed solar PV by season in Pirapetinga

Seasonal solar PV output for Latitude: -21.6714, Longitude: -42.3703 (Pirapetinga, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° North in Pirapetinga, Brazil

To maximize your solar PV system's energy output in Pirapetinga, Brazil (Lat/Long -21.6714, -42.3703) throughout the year, you should tilt your panels at an angle of 20° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Pirapetinga, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Pirapetinga, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	27° North in Autumn	37° North in Winter	15° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Pirapetinga, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Pirapetinga, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Pirapetinga, Brazil

Topographical Features of Pirapetinga

Pirapetinga sits in the southeastern region of Minas Gerais state, nestled within the rolling hills and valleys characteristic of Brazil's Atlantic Plateau region. The landscape around this municipality features a mixture of gentle slopes, moderate elevation changes, and river valleys that create a varied but generally accessible terrain. The area lies within the broader Mantiqueira mountain system's influence, though at a more moderate elevation than the highest peaks of this range. The topography consists primarily of undulating hills with elevations ranging from approximately 400 to 800 meters above sea level. These hills are interspersed with small valleys carved by local waterways, including tributaries that eventually feed into larger river systems. The terrain shows the typical weathered granite and gneiss formations common to this part of the Brazilian Highlands, creating soils that support both agricultural activities and natural vegetation.

Drainage Patterns and Water Features

The region's drainage network includes several small streams and seasonal watercourses that flow through the valleys between the hills. These waterways have created natural corridors and flatter areas within the otherwise hilly landscape. The presence of these water features indicates good natural drainage, which can be beneficial for infrastructure development as it reduces concerns about waterlogging or poor soil stability. The valleys tend to be relatively narrow but provide some of the flattest terrain available in the immediate area. However, these lower-lying areas may experience occasional flooding during heavy rainfall periods, making elevated positions more suitable for permanent installations.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be found on the broader hilltops and upper slope areas that offer several advantages. These elevated positions typically provide more consistent wind flow for natural cooling of solar panels, while avoiding the potential flooding issues associated with valley floors. The moderate slopes on many of these hills allow for effective panel positioning without requiring extensive grading or terracing work. South-facing and southeast-facing slopes present particularly favorable conditions, as they can capture optimal solar exposure throughout the day while maintaining good accessibility for construction and maintenance vehicles. The geological stability of the weathered bedrock in these areas provides solid foundations for mounting systems and access roads. Areas with slopes between 5 and 15 degrees often represent the sweet spot for solar development, as they provide natural drainage while requiring minimal earthwork to create suitable installation platforms. The broader ridgelines and plateau-like areas scattered throughout the region offer the largest continuous spaces for utility-scale solar farms.

Infrastructure Considerations

The existing road network in the region follows the natural topography, typically running along ridge lines and through valley passes. This pattern means that elevated sites suitable for solar development often have reasonable access to transportation infrastructure. The moderate nature of the terrain also facilitates the construction of new access roads where needed, without requiring extensive cutting or filling operations. The relatively stable soils derived from the weathered crystalline bedrock provide good bearing capacity for solar mounting systems and associated infrastructure. The natural drainage characteristics of the sloped terrain help prevent water accumulation that could undermine foundations or create maintenance challenges. Areas located within a few kilometers of existing electrical transmission infrastructure would be particularly attractive for large-scale solar development, as the moderate topography allows for relatively straightforward routing of power lines across the landscape without major engineering obstacles.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
