Piratininga, São Paulo, Brazil offers a compelling location for solar PV installations, situated in the tropical region where sunlight remains relatively consistent throughout the year. This location experiences more pronounced wet and dry seasons rather than the four distinct seasons found in temperate regions.

Solar energy production at this site demonstrates strong potential across all seasons, though with notable seasonal variation. During summer months, panels can generate an impressive 6.97kWh per day for each kilowatt installed. Spring follows as the second most productive season with 6.27kWh/day. Production decreases moderately in autumn to 5.58kWh/day, with winter showing the lowest output at 4.74kWh/day per installed kilowatt.

For maximum year-round energy harvest at this location, fixed solar panels should be installed at a 20-degree tilt facing North. This specific angle has been calculated to optimize annual solar collection based on Piratininga's position in the Southern Hemisphere.

Environmental and Weather Considerations

Several environmental factors may impact solar production in Piratininga. The region experiences a rainy season which can temporarily reduce panel efficiency through cloud cover. Additionally, the tropical location makes dust and pollen accumulation more likely, which can gradually decrease panel performance if not addressed.

To mitigate these challenges, installation best practices should include:

• Regular cleaning schedules, particularly during dry seasons when dust accumulation is highest
• Elevated mounting systems to prevent vegetation overgrowth and reduce dust collection
• Quality inverters with high humidity tolerance for the wet season
• Lightning protection systems, as tropical regions often experience more frequent thunderstorms

With proper installation and maintenance protocols, solar PV systems in Piratininga can achieve excellent year-round performance, with particular advantage taken of the highly productive summer and spring seasons when planning energy-intensive activities.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

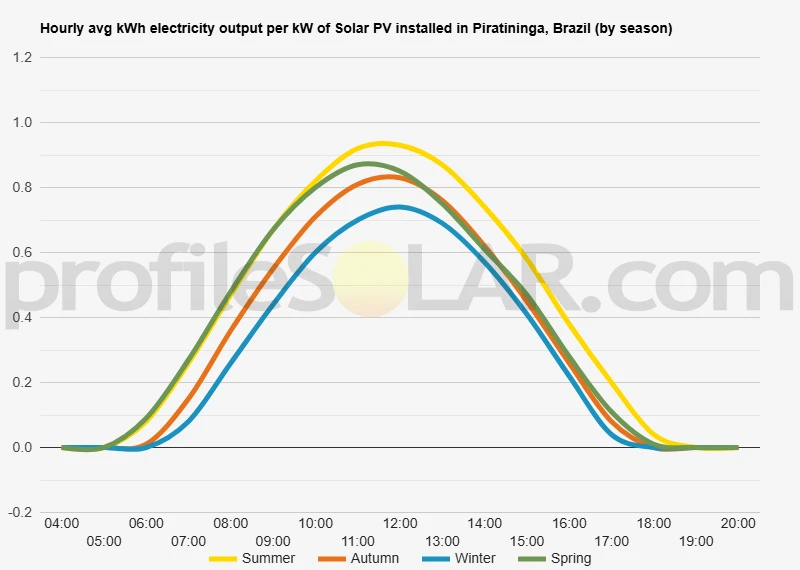

Solar output per kW of installed solar PV by season in Piratininga

Seasonal solar PV output for Latitude: -22.4211, Longitude: -49.1956 (Piratininga, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° North in Piratininga, Brazil

To maximize your solar PV system's energy output in Piratininga, Brazil (Lat/Long -22.4211, -49.1956) throughout the year, you should tilt your panels at an angle of 20° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Piratininga, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Piratininga, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	28° North in Autumn	38° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Piratininga, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Piratininga, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Piratininga, Brazil

The landscape around Piratininga, Brazil is characterized by gently rolling hills and plateaus typical of the western portion of São Paulo state. Situated in the Bauru region, Piratininga lies within the Paraná River basin on what is known as the Western Plateau (Planalto Ocidental) of São Paulo. The terrain features moderate elevation changes with altitudes generally ranging between 450 to 550 meters above sea level. The topography consists primarily of wide, open areas with gradual slopes rather than steep mountains or dramatic valleys. This undulating terrain was shaped over millions of years by the erosion of ancient sandstone and basalt formations. The soil composition is predominantly sandy and reddish, derived from the breakdown of sandstone and basaltic rocks, known locally as "terra roxa" in some areas.

Hydrography

The area is traversed by several small to medium-sized rivers and streams that are part of the greater Paraná River watershed. The Batalha River is one of the notable waterways in the vicinity, along with its tributaries. These waterways have carved shallow valleys throughout the region, creating the characteristic rolling landscape. Natural vegetation in the region was originally a mix of cerrado (tropical savanna) and Atlantic Forest formations, though much has been converted to agricultural use over the past century. The remaining natural areas feature a transition between these two important Brazilian biomes.

Optimal Areas for Solar PV Development

For large-scale solar photovoltaic installations, the most suitable areas around Piratininga would be the elevated plateaus and gentler hillsides with southern, eastern, or western exposures. These locations offer several advantages: The higher plateau areas, particularly those with minimal tree cover and good road access to the north and east of Piratininga, present excellent opportunities for solar development. These locations typically have stable soil conditions and reduced risk of flooding. The gently sloping terrain between 450-500 meters elevation provides natural drainage while minimizing the earthwork required for installation. Areas with slopes between 1-5% are particularly advantageous as they minimize the need for extensive grading while still providing good drainage. The northwestern sector of the municipality contains several expansive cleared plateaus that combine favorable topography with minimal shading from natural features. These areas receive consistent solar radiation throughout the year due to their elevation and lack of obstruction. Agricultural lands that are less productive or fallow fields on the eastern outskirts represent another potential opportunity, as they already feature cleared vegetation and established access routes. The conversion of these areas would have minimal additional environmental impact. The relatively stable geological foundation of the region means reduced risk of landslides or severe erosion, which represents another advantage for large infrastructure projects like solar farms. The underlying sandstone and basalt formations provide solid anchoring for mounting systems. Areas to avoid include the riparian zones along waterways, steeper slopes exceeding 10% grade, and any remaining forest fragments, as these have both ecological importance and would present greater technical challenges for development.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
