Pitanga, Paraná, Brazil presents a reasonably good location for year-round solar energy generation, though with notable seasonal variations that potential solar installers should understand.

Seasonal Solar Performance

The solar energy output at this Southern Sub Tropical location shows distinct seasonal patterns. Summer delivers the strongest performance at 6.90 kWh per day per kW of installed capacity, making it the peak season for solar generation. Spring follows as the second-best season with 6.04 kWh per day per kW, while autumn produces 5.31 kWh per day per kW. Winter represents the least productive period, generating 4.23 kWh per day per kW of installed solar capacity. The most productive months for solar energy generation occur during the warmer seasons, with summer and spring offering optimal conditions. Even during the winter months, the location maintains reasonable solar output, though at approximately 39% lower than peak summer production.

Optimal Panel Configuration

For maximum year-round energy production at Pitanga, Paraná, fixed solar panels should be tilted at 22 degrees toward the North. This angle has been calculated to optimize total annual solar output by accounting for the sun's changing position throughout the year and the location's specific latitude.

Environmental and Weather Considerations

Several local factors could potentially impact solar energy production in Pitanga and require attention during installation planning:

• Humidity and moisture: The subtropical climate brings high humidity levels that can reduce panel efficiency and promote corrosion of electrical components
• Heavy rainfall: Intense precipitation during certain seasons can temporarily reduce solar output and may cause debris accumulation on panels
• Hailstorms: The region's weather patterns may include severe storms that could damage solar panels
• Dust and pollen: Agricultural activities and seasonal plant cycles can create airborne particles that accumulate on panel surfaces

Preventative Measures for Optimal Performance

To maximize solar energy production despite these challenges, several installation strategies prove effective. Using high-quality, weather-resistant mounting systems and electrical components designed for humid subtropical conditions helps prevent moisture-related degradation. Installing panels with adequate drainage and slight tilting beyond the optimal 22 degrees can help rainfall naturally clean the surfaces while preventing water pooling. Regular maintenance schedules become particularly important in this climate. Monthly visual inspections and quarterly professional cleaning can remove accumulated dust, pollen, and debris. Installing monitoring systems allows for quick identification of performance drops that might indicate cleaning needs or weather damage. Choosing solar panels with strong hail ratings and impact-resistant glass provides protection against severe weather events. Additionally, ensuring proper grounding and surge protection systems helps safeguard the installation against electrical issues caused by frequent thunderstorms common in subtropical regions. Despite these environmental considerations, Pitanga's consistent year-round solar generation potential makes it a viable location for solar energy systems when properly planned and maintained.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

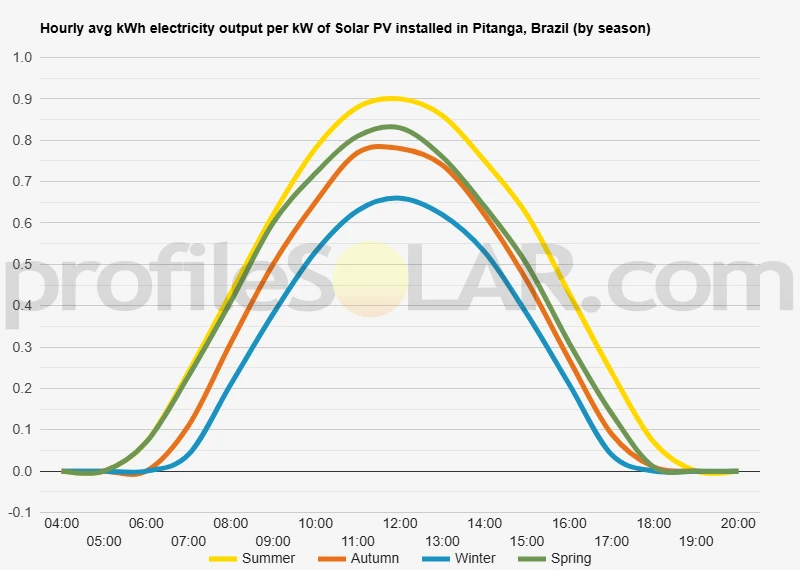

Solar output per kW of installed solar PV by season in Pitanga

Seasonal solar PV output for Latitude: -24.66, Longitude: -51.7594 (Pitanga, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 22° North in Pitanga, Brazil

To maximize your solar PV system's energy output in Pitanga, Brazil (Lat/Long -24.66, -51.7594) throughout the year, you should tilt your panels at an angle of 22° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Pitanga, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Pitanga, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 22° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
9° North in Summer	30° North in Autumn	40° North in Winter	17° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Pitanga, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Pitanga, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Pitanga, Brazil

Topographical Features Around Pitanga

Pitanga sits in the heart of Paraná state in southern Brazil, positioned within a region characterized by gently rolling hills and undulating terrain typical of the Brazilian plateau. The landscape around this area forms part of the larger Paraná Basin, which extends across much of southern Brazil. The elevation in and around Pitanga ranges from approximately 800 to 1,200 meters above sea level, creating a moderately elevated terrain that provides good drainage and air circulation.

The topography consists primarily of smooth, rounded hills interspersed with broader valleys and plateaus. These geological formations resulted from ancient sedimentary deposits and subsequent erosion over millions of years. The terrain is generally stable and well-consolidated, with gradual slopes that rarely exceed steep gradients. This makes the region relatively accessible and suitable for various types of development and infrastructure projects.

The area features a network of small rivers and streams that have carved gentle valleys through the landscape. These waterways flow generally eastward toward larger river systems, creating a natural drainage pattern that helps prevent waterlogging in most areas. The soil composition includes fertile red earth typical of this part of Brazil, supported by the underlying basaltic rock formations that characterize much of the Paraná plateau.

Optimal Areas for Large-Scale Solar Development

The most promising locations for extensive solar photovoltaic installations around Pitanga would be the elevated plateau areas and gentle south-facing slopes. These positions offer several advantages including consistent exposure to sunlight throughout the day and natural drainage that prevents water accumulation around solar equipment. The higher elevations also tend to experience better air circulation, which helps maintain optimal operating temperatures for photovoltaic panels.

The broader valley floors and expansive plateau surfaces provide the large contiguous areas necessary for utility-scale solar farms. These relatively flat or gently sloping areas minimize the need for extensive grading and earthwork, reducing both construction costs and environmental impact. The stable geological foundation in these areas also supports the heavy infrastructure required for large solar installations, including access roads, electrical substations, and maintenance facilities.

Areas with southern exposure on gentle slopes would be particularly advantageous, as they receive consistent solar radiation throughout the day while avoiding the shadows that can be cast by steeper terrain features. The rolling nature of the landscape means that careful site selection can identify locations that are naturally sheltered from prevailing winds while still maintaining good solar access.

Agricultural areas on the broader plateaus present excellent opportunities for solar development, particularly where the terrain is already cleared and relatively level. These locations often have existing road access and electrical infrastructure nearby, which can significantly reduce development costs. The stable, well-drained soils in these areas provide solid foundations for solar mounting systems while minimizing concerns about ground settlement or erosion.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
