Pitimbu, Brazil represents an excellent location for year-round solar photovoltaic energy generation. Located in the tropics at coordinates -7.4146, -34.8373, this coastal city in Paraíba benefits from consistent sunlight throughout most of the year, with seasons characterized more by wet and dry periods rather than dramatic temperature variations.

Solar Energy Output Performance

The solar energy production data for Pitimbu shows strong performance across all seasons. Spring delivers the highest output at 7.19 kWh per day per kW of installed solar capacity, followed closely by summer at 6.95 kWh/day. Autumn maintains solid production at 6.17 kWh/day, while winter shows the lowest but still respectable output of 5.58 kWh/day per kW installed. This seasonal pattern indicates that the optimal times for solar generation occur during spring and summer months, though the location maintains viable solar production year-round. The relatively small variation between seasons - only about 1.6 kWh difference between the best and worst performing seasons - demonstrates the stability that tropical locations offer for solar energy systems.

Optimal Panel Configuration

For fixed panel installations at this location, the ideal tilt angle to maximize total year-round solar production is 6 degrees facing North. This shallow angle reflects the location's proximity to the equator, where the sun travels high overhead throughout the year.

Environmental and Weather Considerations

Several local factors could potentially impact solar production in Pitimbu and require careful consideration during installation planning. Coastal Salt Air and Corrosion Being a coastal location, Pitimbu experiences salt-laden air that can accelerate corrosion of solar panel frames, mounting systems, and electrical components. To mitigate this, installers should use marine-grade aluminum frames and stainless steel mounting hardware with appropriate protective coatings. Regular cleaning and inspection schedules become particularly important in coastal environments. High Humidity and Moisture The tropical climate brings elevated humidity levels year-round, which can lead to moisture infiltration in electrical connections and junction boxes. Installing systems with enhanced weatherproofing, using sealed electrical enclosures rated for high humidity environments, and ensuring proper drainage around mounting points helps prevent moisture-related failures. Tropical Rainfall Intensity During wet seasons, Pitimbu can experience intense tropical downpours and thunderstorms. While rain helps clean panels naturally, heavy precipitation can create temporary shading and the associated lightning activity poses electrical risks. Installing proper grounding systems, surge protection devices, and ensuring robust mounting systems that can handle wind loads associated with storms becomes essential. Sand and Dust Accumulation The coastal environment may subject panels to sand particles and dust carried by ocean winds, which can reduce panel efficiency through soiling. Implementing tilt angles that promote natural cleaning during rain events and establishing regular maintenance cleaning schedules helps maintain optimal performance. Preventative Installation Measures To maximize energy production despite these environmental challenges, several installation practices prove beneficial:

• Use corrosion-resistant materials including marine-grade aluminum and stainless steel components
• Install comprehensive surge protection and proper electrical grounding systems
• Ensure adequate spacing between panels for air circulation to reduce moisture buildup
• Implement robust mounting systems designed for coastal wind loads
• Establish regular cleaning and maintenance schedules appropriate for the coastal environment

Despite these considerations, Pitimbu's consistent tropical sunlight and strong year-round solar production potential make it a highly favorable location for solar PV installations when proper environmental precautions are incorporated into the system design.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

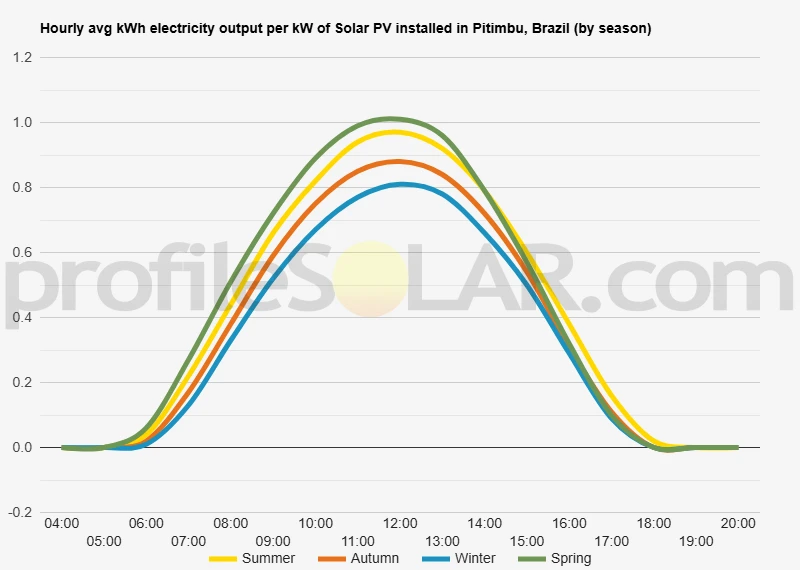

Solar output per kW of installed solar PV by season in Pitimbu

Seasonal solar PV output for Latitude: -7.4146, Longitude: -34.8373 (Pitimbu, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 6° North in Pitimbu, Brazil

To maximize your solar PV system's energy output in Pitimbu, Brazil (Lat/Long -7.4146, -34.8373) throughout the year, you should tilt your panels at an angle of 6° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Pitimbu, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Pitimbu, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 6° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
9° South in Summer	13° North in Autumn	23° North in Winter	1° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Pitimbu, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Pitimbu, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Pitimbu, Brazil

Topographical Features of Pitimbu

Pitimbu sits along Brazil's northeastern Atlantic coast in the state of Paraíba, characterized by a relatively flat coastal plain that extends inland from the ocean. The immediate area around Pitimbu features gently rolling terrain with elevations rarely exceeding 100 meters above sea level. This coastal lowland region is part of the broader Tabuleiros Costeiros formation, which consists of sedimentary plateaus and terraces that have been shaped by marine and fluvial processes over geological time.

The landscape transitions gradually from the sandy coastal areas and dune systems near the shoreline to slightly more elevated inland plains. Small streams and seasonal watercourses cut through the terrain, creating shallow valleys and gentle undulations in what is otherwise a remarkably flat topography. The soil composition varies from sandy coastal deposits to clay-rich sediments further inland, with patches of lateritic soils common throughout the region.

Regional Terrain Characteristics

Moving inland from Pitimbu, the topography remains consistently gentle, with the Borborema Plateau beginning to rise more noticeably approximately 50-80 kilometers to the west. This plateau represents the most significant topographical feature in the broader region, though its influence on the immediate Pitimbu area is minimal. The coastal plain extends both north and south along the shoreline, creating extensive areas of relatively uniform elevation and slope.

The region experiences typical tropical coastal geomorphology, with evidence of past sea level changes visible in the form of marine terraces and fossil reef structures. These features create subtle variations in the landscape, including low ridges and depressions that add minor complexity to an otherwise uniform coastal plain environment.

Optimal Areas for Large-Scale Solar Development

The extensive flat to gently rolling terrain surrounding Pitimbu presents excellent opportunities for large-scale solar photovoltaic installations. The most suitable areas lie inland from the immediate coastal zone, typically 5-15 kilometers from the shoreline, where the land is sufficiently elevated to avoid coastal flooding concerns while maintaining the favorable flat topography.

Areas to the west and southwest of Pitimbu offer particularly attractive conditions for solar development. These locations benefit from stable, well-drained soils and minimal topographical constraints that would complicate construction or panel orientation. The gentle inland plains provide vast expanses of relatively uniform terrain that can accommodate large solar arrays with minimal grading or site preparation requirements.

The northern and southern extensions of the coastal plain also present viable options for solar installations. These areas maintain the favorable flat topography while offering sufficient distance from sensitive coastal ecosystems. The slightly elevated terraces found throughout the region provide natural drainage advantages and stable foundations for solar infrastructure.

Areas immediately adjacent to existing transportation corridors, particularly those connecting Pitimbu to larger urban centers like João Pessoa to the north, offer additional advantages for solar development. These locations combine favorable topography with practical benefits related to grid connection and construction access, making them prime candidates for utility-scale solar projects.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
