Planalto, Rio Grande do Sul, Brazil, located in the Southern Sub Tropics at coordinates -27.3402, -53.09, presents a moderately favorable location for year-round solar energy generation, though with significant seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy output at this location varies considerably throughout the year. Summer delivers the strongest performance at 7.33kWh per day per kW of installed solar capacity, making it the peak season for solar generation. Spring follows as the second-best performing season with 6.01kWh per day per kW, while autumn produces 5.07kWh per day per kW. Winter represents the most challenging period for solar generation, producing only 3.74kWh per day per kW of installed capacity. This represents a drop of nearly 50% compared to summer production, which is typical for locations in the Southern Hemisphere but requires careful consideration when sizing solar systems.

Optimal Installation Configuration

For fixed panel installations at Planalto, Rio Grande do Sul, the ideal tilt angle to maximize total year-round solar production is 24 degrees facing North. This angle has been calculated by analyzing daily solar elevation angles at this latitude, determining optimal panel positioning, and weighting these angles according to solar irradiance data throughout the year to account for Earth's elliptical orbit.

Environmental and Weather Factors

Several local factors could potentially impact solar production at this Southern Sub Tropical location:

• Seasonal cloud cover and precipitation: The region's subtropical climate typically brings increased cloud cover and rainfall during certain seasons, particularly affecting winter production when solar angles are already less favorable
• Humidity and atmospheric moisture: High humidity levels common in subtropical regions can reduce solar irradiance reaching panels and create more frequent condensation issues
• Temperature effects: While solar panels need sunlight, excessive heat can reduce their efficiency, and the subtropical climate may produce high temperatures that impact performance
• Dust and debris accumulation: Agricultural activities common in Brazilian rural areas can create dust that settles on panels, reducing their effectiveness

Preventative Measures for Optimal Performance

Several strategies can help maximize solar energy production despite these environmental challenges:

• Regular cleaning schedule: Implement monthly panel cleaning to remove dust, pollen, and debris, with more frequent cleaning during dusty agricultural seasons
• Proper ventilation design: Install panels with adequate spacing beneath to allow air circulation, helping to keep operating temperatures lower and improve efficiency
• Quality mounting systems: Use corrosion-resistant mounting hardware suitable for humid subtropical conditions to ensure long-term structural integrity
• Strategic system sizing: Account for the significant winter production drop when calculating system size to ensure adequate power generation year-round
• Monitoring systems: Install performance monitoring to quickly identify any issues caused by weather or environmental factors

Overall, while Planalto offers reasonable solar potential, the significant seasonal variation and subtropical environmental factors require careful planning and maintenance to achieve optimal long-term performance from solar installations.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

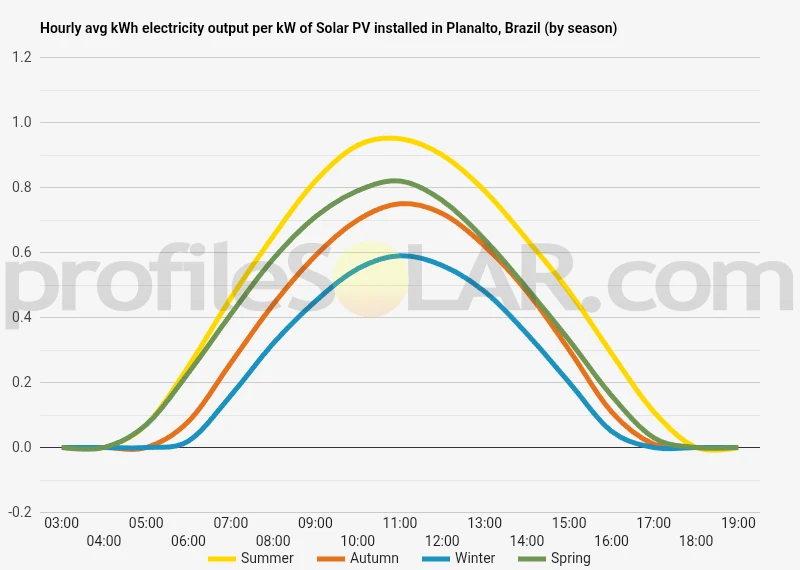

Solar output per kW of installed solar PV by season in Planalto

Seasonal solar PV output for Latitude: -27.3402, Longitude: -53.09 (Planalto, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° North in Planalto, Brazil

To maximize your solar PV system's energy output in Planalto, Brazil (Lat/Long -27.3402, -53.09) throughout the year, you should tilt your panels at an angle of 24° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Planalto, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Planalto, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
11° North in Summer	33° North in Autumn	42° North in Winter	20° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Planalto, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Planalto, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Planalto, Brazil

Topographical Features of the Planalto Region

The area around Planalto in Rio Grande do Sul, Brazil, is characterized by gently rolling hills and elevated plateaus that form part of the broader Southern Brazilian Highlands. This region sits at a moderate elevation, creating a landscape of undulating terrain with gradual slopes and wide valleys. The topography is dominated by sedimentary rock formations that have been weathered over millions of years, resulting in relatively smooth, rounded hill formations rather than sharp ridges or steep escarpments.

The terrain features a mosaic of agricultural lands interspersed with patches of native Araucaria forest and grasslands typical of the Pampa biome. The rolling nature of the landscape creates natural drainage patterns, with small streams and tributaries flowing through the valleys between the hills. The soil composition in this area is generally well-developed, consisting primarily of deep, fertile soils that have made the region attractive for farming activities.

Climate and Environmental Conditions

This part of Rio Grande do Sul experiences a humid subtropical climate with distinct seasonal variations. The region receives regular rainfall throughout the year, though precipitation patterns can vary seasonally. The elevated position of the area contributes to good air circulation and relatively stable weather patterns, with prevailing winds from the southeast and occasional influence from weather systems moving up from Argentina.

The landscape is generally open, with scattered tree coverage that does not create significant shading issues across large areas. The combination of elevation and latitude provides favorable conditions for solar radiation exposure, particularly during the spring and summer months when the sun's angle is optimal for this southern hemisphere location.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations in the Planalto vicinity would be the gently sloping hillsides with southern and southeastern exposures. These areas offer the advantage of natural drainage while maximizing solar exposure throughout the day. The moderate slopes, typically ranging from 2 to 8 degrees, are ideal for solar panel installation as they provide good sun angles without requiring extensive grading or earthwork.

Areas that have been previously cleared for agricultural use present particularly attractive opportunities, as the land is already accessible and has established infrastructure nearby. The relatively stable soil conditions in these locations would support the foundation requirements for large solar arrays without significant geological challenges.

The broader valley floors in the region also offer excellent potential for solar development, particularly where they span several hundred hectares of relatively flat terrain. These areas typically have good access to existing road networks and electrical infrastructure, which would reduce development costs and complexity for large-scale projects.

Locations with minimal tree coverage and distance from water bodies that might create localized weather patterns would be most favorable. The open grassland areas that characterize much of the surrounding landscape provide ideal conditions, as they minimize shading concerns and offer unobstructed solar access throughout most of the year.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
