Pontal do Araguaia, Brazil represents an excellent location for year-round solar photovoltaic energy generation. Located in the tropics at coordinates -15.9676, -52.7542, this region benefits from consistent sunlight throughout most of the year, with seasonal variations characterized more by wet and dry periods rather than significant changes in solar availability.

Solar Energy Production Performance

The solar energy output at Pontal do Araguaia demonstrates remarkable consistency across all seasons. Spring emerges as the most productive season with 6.08 kWh per day per kW of installed solar capacity, followed closely by winter at 5.97 kWh per day. Summer produces 5.91 kWh per day, while autumn generates 5.78 kWh per day per kW installed. This minimal seasonal variation of only 0.3 kWh per day between the highest and lowest producing seasons makes Pontal do Araguaia an ideal location for solar installations. The slight peak in spring and winter production, combined with strong performance in summer and autumn, ensures reliable energy generation throughout the entire year.

Optimal Installation Configuration

For fixed panel installations at this location, the ideal tilt angle to maximize total year-round solar production is 16 degrees facing north. This angle has been calculated by analyzing daily solar elevation angles at this latitude, determining optimal panel positioning, and weighting these angles according to daily photovoltaic potential using solar irradiance data that accounts for Earth's elliptical orbit.

Environmental and Weather Challenges

Despite the excellent solar potential, several local factors could impact solar energy production at Pontal do Araguaia:

• Wet season precipitation: Heavy rainfall during the wet season can reduce solar irradiance and create temporary drops in energy production
• High humidity: Tropical humidity levels can lead to moisture-related issues with electrical components and reduced panel efficiency
• Dust and debris accumulation: During dry periods, dust buildup on panels can significantly reduce energy output
• Vegetation growth: The tropical climate promotes rapid plant growth that could create shading issues if not properly managed

Preventative Measures for Optimal Performance

Several installation strategies can help maximize solar energy production despite these environmental challenges:

• Regular cleaning schedules: Implement frequent panel washing, especially during dry seasons when dust accumulation is highest
• Proper drainage design: Install systems with adequate water runoff to prevent standing water and moisture damage during heavy rains
• Corrosion-resistant materials: Use marine-grade or tropical-rated components that can withstand high humidity and temperature fluctuations
• Strategic site selection: Choose locations with minimal vegetation obstruction and plan for ongoing landscape management
• Elevated mounting: Install panels with sufficient ground clearance to improve air circulation and reduce moisture retention

With proper planning and maintenance protocols, these environmental factors can be effectively managed, allowing solar installations at Pontal do Araguaia to achieve their excellent energy production potential throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

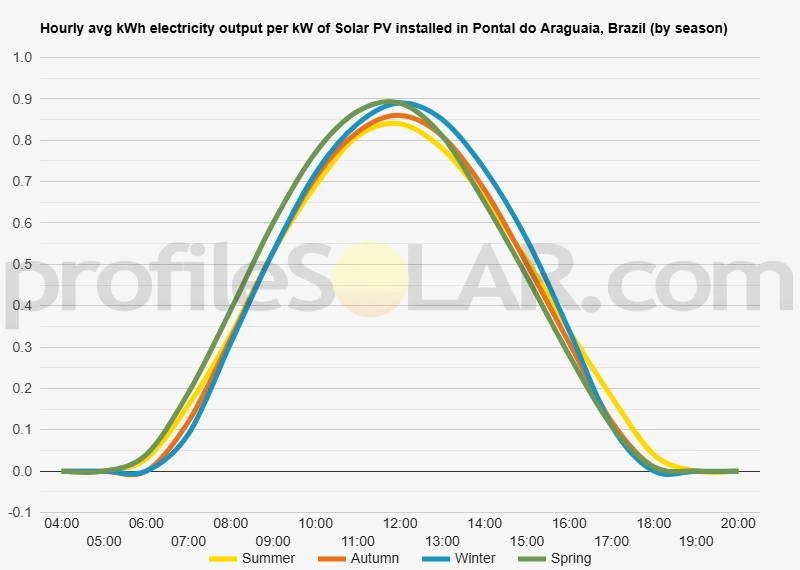

Solar output per kW of installed solar PV by season in Pontal Do Araguaia

Seasonal solar PV output for Latitude: -15.9676, Longitude: -52.7542 (Pontal Do Araguaia, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 16° North in Pontal Do Araguaia, Brazil

To maximize your solar PV system's energy output in Pontal Do Araguaia, Brazil (Lat/Long -15.9676, -52.7542) throughout the year, you should tilt your panels at an angle of 16° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Pontal Do Araguaia, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Pontal Do Araguaia, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 16° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
0° in Summer	23° North in Autumn	32° North in Winter	10° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Pontal Do Araguaia, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Pontal Do Araguaia, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Pontal Do Araguaia, Brazil

Topographical Features of Pontal do Araguaia

Pontal do Araguaia sits in the heart of Brazil's Mato Grosso state, positioned within the vast Cerrado savanna ecosystem. The landscape here is characterized by gently rolling plains and plateaus that stretch across the horizon, with elevations typically ranging between 200 and 400 meters above sea level. This region forms part of the Brazilian Central Plateau, creating a relatively stable and predictable terrain that has been shaped by millions of years of erosion and weathering.

The area experiences a tropical savanna climate with distinct wet and dry seasons. During the dry season, which spans roughly from May to September, the landscape takes on a golden-brown appearance as grasses dry out and many trees shed their leaves. The wet season brings transformation, turning the same terrain into a lush, green expanse dotted with seasonal wetlands and flowing streams that eventually drain into the Araguaia River system.

The soil composition consists primarily of lateritic soils typical of the Cerrado, which are generally well-drained but nutrient-poor. These soils have developed over ancient crystalline rock formations, creating a stable foundation that rarely experiences significant geological activity. The terrain features occasional small hills and escarpments, but the overall topography remains remarkably flat to gently undulating.

Natural Drainage and Water Features

The Araguaia River, one of Brazil's major waterways, flows along the eastern boundary of this region, creating fertile floodplains and gallery forests along its banks. Numerous smaller tributaries and seasonal streams crisscross the landscape, forming natural drainage patterns that have carved shallow valleys and depressions throughout the area. These water features create a network of riparian corridors that support denser vegetation compared to the surrounding savanna.

During the rainy season, temporary wetlands and seasonal lakes form in lower-lying areas, supporting diverse wildlife populations and creating important ecological habitats. These seasonal water bodies typically dry up completely during the dry months, leaving behind nutrient-rich soils that support specialized plant communities adapted to these cyclical flooding patterns.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be found on the elevated plateaus and gentle slopes that dominate the landscape north and west of Pontal do Araguaia. These areas offer several key advantages including consistent elevation above seasonal flood zones, stable soil conditions, and minimal vegetation clearing requirements due to the naturally sparse tree coverage of the Cerrado savanna.

The flat to gently rolling terrain on these plateaus provides ideal conditions for large solar arrays, requiring minimal grading or earthwork for installation. The well-drained lateritic soils offer excellent stability for mounting systems, while the elevated positions ensure good air circulation around solar panels, which helps maintain optimal operating temperatures.

Areas located at least two to three kilometers away from the Araguaia River and its major tributaries would be particularly well-suited for development, as they avoid both seasonal flooding risks and the denser gallery forests that line the waterways. The higher ground also typically experiences better wind patterns that can help cool solar installations naturally.

The region's existing transportation infrastructure, including highways connecting to major population centers, makes these elevated plateau areas accessible for construction and maintenance activities. The relatively sparse population density in these zones also reduces potential land use conflicts while still maintaining reasonable proximity to electrical grid connection points.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
