Ponto Belo, Espírito Santo, Brazil presents a highly favorable location for year-round solar photovoltaic energy generation. Located in the tropics at coordinates -18.2551, -40.4956, this region benefits from consistent sunlight throughout most of the year, with seasonal variations characterized more by wet and dry periods rather than dramatic temperature changes.

Solar Energy Production Potential

The solar energy output at Ponto Belo demonstrates strong performance across all seasons. Summer delivers the highest production at 5.98 kWh per day per kW of installed solar capacity, making it the optimal time for solar generation. Spring follows closely with 5.19 kWh/day per kW, while autumn maintains solid output at 5.53 kWh/day per kW. Even during winter, the location still produces a respectable 4.24 kWh/day per kW, indicating reliable year-round solar potential. For maximum energy harvest, solar panels should be installed at a fixed tilt angle of 17 degrees facing north. This optimal angle is calculated by analyzing daily solar elevation angles throughout the year and weighting them according to solar irradiance data, accounting for Earth's elliptical orbit around the sun.

Environmental Factors and Challenges

Several environmental factors could potentially impact solar production at Ponto Belo. The tropical climate brings distinct wet and dry seasons, with heavy rainfall during wet periods that can reduce solar output and create additional maintenance challenges.

• High humidity and frequent rainfall during wet seasons can lead to increased soiling of panels and potential water damage
• Tropical storms and intense weather events may pose risks to solar installations
• Dense vegetation growth in the humid climate could create shading issues if not properly managed
• Salt air exposure, depending on proximity to the coast, may accelerate corrosion of mounting systems

Preventative Measures for Optimal Performance

To maximize solar energy production despite these challenges, several preventative measures should be implemented during installation. Proper drainage systems and waterproof sealing are essential to protect against heavy rainfall typical of tropical wet seasons. Regular cleaning schedules become particularly important in this environment, as dust, pollen, and organic debris can accumulate more rapidly on panel surfaces. Installing panels with adequate spacing allows for better air circulation and easier maintenance access. Robust mounting systems designed to withstand tropical weather conditions, including high winds and heavy rain, are crucial for long-term performance. Additionally, maintaining clear sight lines by managing vegetation growth around the installation site will prevent shading that could significantly reduce energy output. The consistently strong solar production numbers throughout the year, even during the lower-performing winter season, indicate that Ponto Belo represents an excellent location for solar PV installations when proper planning and maintenance protocols are followed.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

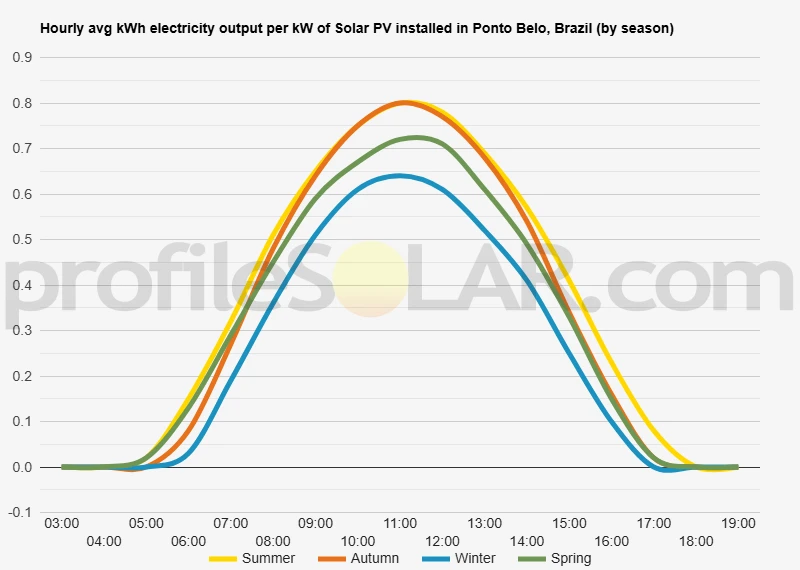

Solar output per kW of installed solar PV by season in Ponto Belo

Seasonal solar PV output for Latitude: -18.2551, Longitude: -40.4956 (Ponto Belo, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 17° North in Ponto Belo, Brazil

To maximize your solar PV system's energy output in Ponto Belo, Brazil (Lat/Long -18.2551, -40.4956) throughout the year, you should tilt your panels at an angle of 17° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ponto Belo, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ponto Belo, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 17° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
2° North in Summer	24° North in Autumn	34° North in Winter	12° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ponto Belo, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ponto Belo, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ponto Belo, Brazil

Topographical Features Around Ponto Belo

Ponto Belo sits within the southeastern region of Brazil in Minas Gerais state, positioned in an area characterized by rolling hills and moderate elevation changes typical of the Brazilian Highlands. The terrain around this location features a mix of undulating countryside with gentle slopes and broader valley areas that create a varied but generally manageable landscape for development projects.

The region exhibits the classic characteristics of the Atlantic Plateau, with elevations that gradually rise and fall across the landscape. While not mountainous in the dramatic sense, the area contains enough topographical variation to create natural drainage patterns and distinct microclimates. The hills tend to be rounded rather than sharp, having been weathered over geological time periods, which results in more gradual grade changes that are favorable for large-scale infrastructure development.

Local vegetation patterns reflect the transition zone between different Brazilian biomes, with areas of Atlantic Forest remnants mixed with pastoral lands and agricultural zones. The natural drainage systems flow generally eastward toward the Atlantic Ocean, creating valley systems that often contain the flattest and most accessible terrain in the region.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations around Ponto Belo would be the broader valley floors and gentle hillside areas where slopes remain under ten degrees. These areas provide the necessary flat to moderately sloped terrain that allows for efficient panel installation and maintenance access while minimizing the need for extensive ground preparation or terracing.

Valley areas particularly stand out as prime candidates because they often contain larger continuous parcels of relatively level ground. These locations typically have been cleared for agricultural use over many decades, meaning that environmental impact from development would be minimized compared to forested hillsides. The existing agricultural infrastructure in these valleys also means that access roads and electrical grid connections are more likely to be already established or easily extended.

Gentle south-facing slopes throughout the region present another excellent opportunity for solar development. These natural orientations provide optimal panel positioning for maximum energy capture throughout the day while the moderate grades eliminate the need for complex mounting systems. The key is identifying slopes that are gradual enough to allow standard installation techniques while avoiding steeper terrain that would require specialized equipment or extensive site preparation.

Areas that should be avoided include the steeper hillsides where erosion concerns would be significant and where access for construction and maintenance would prove challenging. Additionally, the remaining forested areas, particularly those containing native Atlantic Forest vegetation, would present both environmental and regulatory obstacles to large-scale development. The most practical approach focuses on previously disturbed lands, particularly former or current agricultural areas where the environmental impact assessment process would be more straightforward and community acceptance more likely.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
