Porangaba, São Paulo, Brazil presents a moderately favorable location for year-round solar PV energy generation, though it experiences notable seasonal variation in solar output. Located in the tropical region where sunlight remains relatively consistent throughout the year, this area still shows considerable differences between peak and low production periods.

Seasonal Solar Performance

The solar energy output at Porangaba varies significantly across the seasons. Summer delivers the highest production at 6.70 kWh per day per kW of installed solar capacity, making it the optimal time for solar generation. Spring follows as the second-best season with 5.86 kWh/day per kW, while autumn drops to 5.18 kWh/day per kW. Winter represents the least productive period, generating only 4.38 kWh/day per kW of installed capacity. This seasonal pattern means that summer and spring are the ideal times for maximum solar energy generation at this location, with summer producing approximately 53% more energy than the winter months.

Optimal Panel Configuration

For maximum year-round solar production at Porangaba, São Paulo, fixed solar panels should be installed at a tilt angle of 21 degrees facing North. This angle has been calculated to optimize total annual energy output by accounting for the sun's changing position throughout the year and weighting the angles based on actual solar irradiance data.

Environmental and Weather Challenges

Several local factors could potentially impact solar production at this Brazilian location:

• Tropical rainfall patterns: Heavy rains during wet seasons can reduce solar irradiance and create cloud cover that diminishes energy output
• High humidity: Persistent moisture in the air can reduce solar panel efficiency and create haze that blocks sunlight
• Dust and debris accumulation: Dry periods may lead to dust buildup on panels, reducing their effectiveness
• Vegetation growth: The tropical climate promotes rapid plant growth that could create shading issues if not properly managed

Preventative Measures for Optimal Performance

To maximize solar energy production despite these challenges, several installation strategies should be considered:

• Regular cleaning schedule: Implement frequent panel washing, especially during dry seasons when dust accumulation is highest
• Proper drainage design: Install panels with adequate drainage to prevent water pooling during heavy rains
• Strategic site selection: Choose locations with minimal shading from existing or potential future vegetation
• Vegetation management: Establish ongoing maintenance plans to trim trees and bushes that could cast shadows on the solar array
• Quality mounting systems: Use corrosion-resistant materials designed for tropical climates with high humidity and temperature fluctuations

Overall, while Porangaba experiences some seasonal variation and faces typical tropical climate challenges, proper installation techniques and maintenance practices can help ensure reliable solar energy production throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

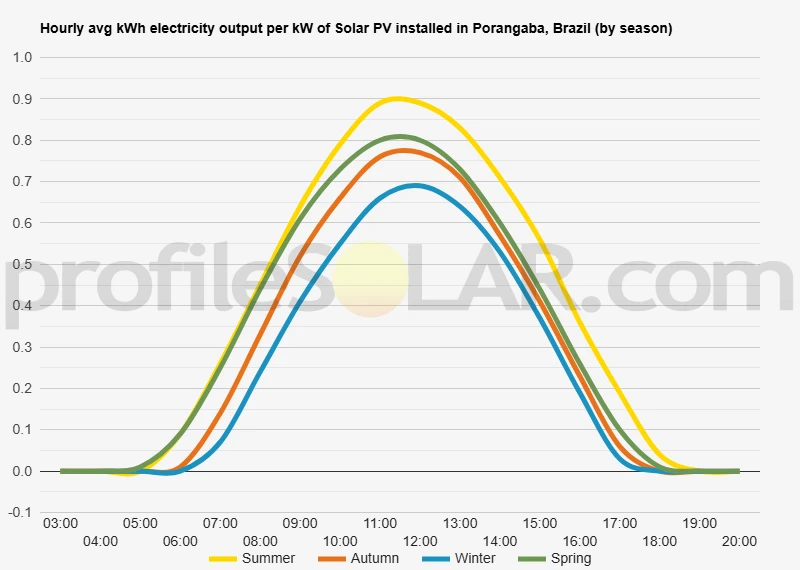

Solar output per kW of installed solar PV by season in Porangaba

Seasonal solar PV output for Latitude: -23.1632, Longitude: -48.1341 (Porangaba, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Porangaba, Brazil

To maximize your solar PV system's energy output in Porangaba, Brazil (Lat/Long -23.1632, -48.1341) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Porangaba, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Porangaba, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° North in Summer	29° North in Autumn	39° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Porangaba, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Porangaba, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Porangaba, Brazil

Topographical Features Around Porangaba

Porangaba sits in the interior of São Paulo state, positioned within a landscape characterized by gently rolling hills and relatively modest elevation changes. The terrain around this municipality forms part of the broader Central Plateau region of Brazil, where the topography consists primarily of undulating plains with scattered low hills and shallow valleys. The area experiences gradual elevation transitions rather than dramatic mountainous features, creating a landscape that appears almost wave-like when viewed from elevated vantage points.

The region's geological foundation consists largely of sedimentary rocks and weathered crystalline formations, which have been shaped over millions of years into the current gentle topography. Small streams and seasonal watercourses have carved shallow depressions through the landscape, creating a network of minor valleys that drain toward larger river systems. These waterways are typically bordered by slightly lower-lying areas that may experience occasional flooding during heavy rainfall periods.

Vegetation patterns across the region reflect both the natural topography and extensive agricultural development. Native cerrado savanna once dominated much of this landscape, but large portions have been converted to agricultural use, particularly for sugarcane cultivation, pastureland, and other crops. The remaining natural vegetation tends to concentrate along watercourses and on steeper slopes that are less suitable for mechanized farming.

Optimal Locations for Large-Scale Solar Development

The most promising areas for substantial solar photovoltaic installations around Porangaba would be the elevated plateau sections and gentle hillsides that offer consistent exposure to direct sunlight throughout the day. These higher elevations typically experience fewer issues with morning fog or mist that can occasionally affect lower-lying areas, particularly during cooler months. The broad, gently sloping surfaces found on many of these elevated areas provide ideal conditions for large solar arrays while minimizing the need for extensive ground preparation or terracing.

Areas with south-facing slopes would be particularly advantageous for solar installations, as these orientations maximize exposure to the sun's path across the northern sky in this southern hemisphere location. The gentle gradients found throughout much of the region mean that large, continuous installations could be developed without requiring complex engineering solutions to accommodate steep terrain or dramatic elevation changes.

Agricultural lands that are currently used for less intensive farming or grazing could represent excellent opportunities for solar development, especially those areas with minimal tree cover and good access to existing road networks. The relatively flat to gently rolling agricultural areas would require minimal site preparation compared to more rugged terrain, reducing overall development costs and environmental impact.

Areas to avoid for large-scale solar development would include the narrow valleys and drainage channels where seasonal flooding might occur, as well as any remaining patches of native forest or environmentally sensitive areas. The lowest-lying areas near streams and wetlands would also be less suitable due to potential moisture-related issues and possible environmental restrictions on development.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
