Porto Calvo, Alagoas, Brazil presents excellent conditions for year-round solar photovoltaic energy generation, with its tropical location providing consistent sunlight throughout the year where seasons are characterized more by wet and dry periods rather than traditional temperature variations.

Solar Energy Production Potential

The solar energy output data for Porto Calvo demonstrates strong year-round performance, with seasonal variations that follow typical tropical patterns. Spring delivers the highest energy production at 7.27 kWh per day per kW of installed solar capacity, closely followed by summer at 7.02 kWh per day per kW. These peak seasons align with the region's dry period when cloud cover is minimal and solar irradiance is at its strongest. Autumn and winter show lower but still substantial production levels, generating 6.10 kWh and 5.28 kWh per day per kW respectively. Winter represents the lowest production period, coinciding with the wet season when increased cloud cover and atmospheric moisture reduce solar irradiance. Despite this seasonal dip, the winter output remains at a respectable level that makes year-round solar generation highly viable. For optimal energy capture throughout the year, solar panels should be installed at a fixed tilt angle of 8 degrees facing north. This specific angle has been calculated to maximize total annual solar output by accounting for the sun's path throughout the year and weighting for daily photovoltaic potential using solar irradiance data.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production in Porto Calvo, Alagoas, though most can be effectively managed with proper installation practices. The tropical wet season presents the most significant challenge, bringing increased humidity, cloud cover, and heavy rainfall that can reduce solar panel efficiency and create maintenance issues. High humidity levels can lead to moisture infiltration in electrical components, while frequent rain may cause dirt and debris accumulation once the wet period ends. Salt air exposure from the coastal location poses another concern, as the corrosive marine environment can accelerate degradation of metal components and panel frames. The combination of high humidity and salt exposure creates ideal conditions for corrosion if proper materials and protective measures aren't employed. Tropical storms and high winds, while not necessarily frequent, represent a potential risk that must be considered in the structural design of solar installations.

Preventative Measures and Installation Recommendations

To maximize energy production and system longevity in Porto Calvo's tropical environment, several preventative measures should be implemented:

• Use marine-grade aluminum frames and stainless steel mounting hardware specifically designed to resist salt corrosion
• Install panels with adequate spacing to promote air circulation and reduce moisture buildup
• Employ high-quality weatherproof sealing for all electrical connections and junction boxes
• Design mounting systems to withstand tropical storm wind loads with appropriate structural reinforcement
• Implement regular cleaning schedules to remove salt deposits and organic growth that can reduce panel efficiency

Proper drainage design around the installation site will prevent water accumulation during heavy rains, while selecting inverters and electrical components with high ingress protection ratings will ensure reliable operation in humid conditions. Regular maintenance becomes particularly important in this environment, with quarterly inspections recommended to address any corrosion or moisture-related issues before they impact system performance. Despite these environmental considerations, Porto Calvo's strong solar resource makes it an excellent location for solar PV installations when proper design and maintenance practices are followed.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

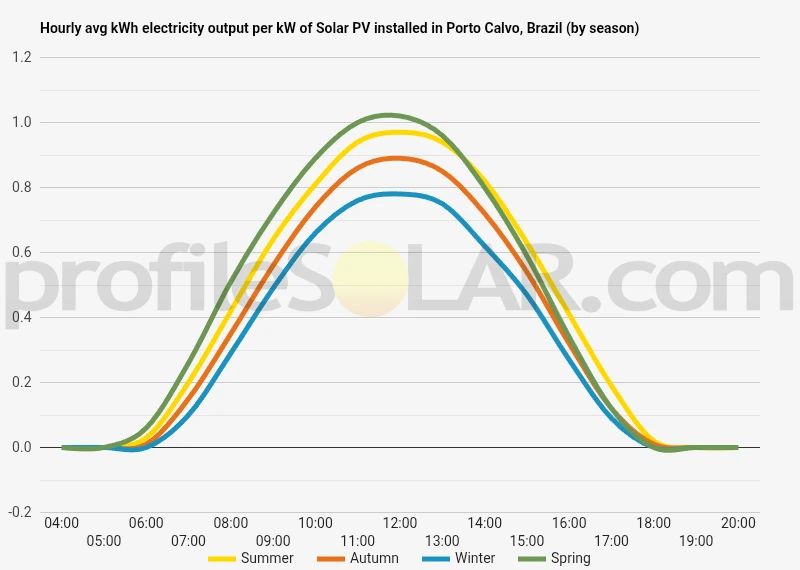

Solar output per kW of installed solar PV by season in Porto Calvo

Seasonal solar PV output for Latitude: -9.072, Longitude: -35.3753 (Porto Calvo, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 8° North in Porto Calvo, Brazil

To maximize your solar PV system's energy output in Porto Calvo, Brazil (Lat/Long -9.072, -35.3753) throughout the year, you should tilt your panels at an angle of 8° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Porto Calvo, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Porto Calvo, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 8° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° South in Summer	15° North in Autumn	25° North in Winter	3° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Porto Calvo, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Porto Calvo, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Porto Calvo, Brazil

Topography Around Porto Calvo

Porto Calvo is situated in the coastal lowlands of Alagoas state in northeastern Brazil, positioned between the Atlantic Ocean and the gradually rising interior plateau. The immediate area around the city features relatively flat to gently undulating terrain, with elevations typically ranging from sea level along the coast to approximately 100 meters above sea level as one moves inland. This coastal plain extends for several kilometers westward before encountering more pronounced topographical changes. The region is characterized by a series of low-lying river valleys and gentle ridges, created primarily by the Camaragibe River and its tributaries as they flow eastward toward the ocean. These waterways have carved shallow valleys through the landscape, creating a pattern of alternating low hills and flat valley floors. The terrain becomes progressively more varied as one travels further inland, with rolling hills and occasional escarpments marking the transition to the higher elevations of the Brazilian Highlands. Coastal areas immediately to the east feature sandy plains and dune systems typical of Brazil's northeastern coastline. These flat, sandy areas extend several kilometers inland in some locations, creating expansive level surfaces. The soil composition varies from sandy coastal deposits near the ocean to more clay-rich alluvial soils in the river valleys and red lateritic soils on the higher ground.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Porto Calvo would be the elevated plateau areas located 15 to 30 kilometers inland from the coast. These areas offer the ideal combination of relatively flat terrain, stable ground conditions, and minimal interference from coastal weather patterns. The gentle slopes and broad flat areas found on these inland plateaus provide excellent opportunities for solar array installation while maintaining good drainage characteristics. The elevated coastal plain areas, particularly those at 50 to 100 meters above sea level, present another excellent option for solar development. These locations benefit from consistent exposure to prevailing winds, which help maintain optimal panel temperatures, while still being accessible for construction and maintenance activities. The terrain in these areas is typically stable with good load-bearing capacity for mounting systems. Areas along the broader river valleys, particularly those with southern or southwestern exposure, could also accommodate large solar installations. The flat valley floors provide ample space for arrays, though careful consideration would need to be given to seasonal flooding patterns and drainage requirements. These locations often have the advantage of existing road access and proximity to electrical infrastructure. The transitional zone between the coastal lowlands and the interior highlands, roughly 20 to 40 kilometers from Porto Calvo, offers particularly promising conditions. This area combines the benefits of stable geology, moderate elevation changes that allow for optimal panel orientation, and distance from the more humid coastal microclimate. The terrain here is generally well-drained with good soil stability for foundation work. Areas to avoid for large-scale solar development would include the immediate coastal zone, which faces challenges from salt air corrosion, higher humidity levels, and potential storm surge impacts. Similarly, the steeper escarpment areas and deeply incised river valleys would present significant engineering challenges and reduced efficiency due to shading and orientation constraints.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
