Porto Ferreira, São Paulo, Brazil offers an excellent location for solar PV energy generation throughout the year. Situated in the tropical region at latitude -21.8453 and longitude -47.4393, this location benefits from relatively consistent sunlight patterns typical of tropical climates, where seasonal variations are often defined more by rainfall than temperature or daylight hours.

Seasonal Solar Production

The energy production potential at Porto Ferreira shows moderate seasonal variation. Summer months yield the highest output at 6.78 kWh per day for each kilowatt of installed solar capacity. Spring follows with a strong 6.21 kWh/day, while autumn produces 5.67 kWh/day. Winter represents the lowest production period but still maintains a respectable 5.04 kWh/day per installed kilowatt.

This pattern indicates that while there is approximately 25% difference between the highest and lowest producing seasons, the site maintains good generation potential year-round, without the dramatic seasonal drops seen in locations farther from the equator.

Optimal Panel Installation

For fixed solar panel installations at Porto Ferreira, São Paulo, the ideal tilt angle is 20 degrees facing North. This angle has been calculated to maximize total annual energy production based on the site's specific latitude and solar elevation patterns throughout the year.

The relatively modest tilt angle reflects Porto Ferreira's tropical location, where the sun passes more directly overhead compared to temperate regions that require steeper panel angles.

Environmental and Weather Considerations

Several factors could potentially impact solar production at this location:

• Seasonal rainfall: As a tropical location, Porto Ferreira experiences wet and dry seasons rather than temperature-defined seasons. Heavy rainfall during the wet season (typically summer) can temporarily reduce solar output despite the higher potential during these months.
• Dust and pollen accumulation: Agricultural activities in the region can contribute to airborne particles that settle on panels, gradually reducing efficiency.
• High temperatures: While sunlight is abundant, extreme heat can slightly reduce the efficiency of photovoltaic cells.

Preventative Measures

To maximize solar production at this location, several practical measures can be implemented:

• Regular cleaning schedule: Implementing automated cleaning systems or scheduled manual cleaning, particularly before and after the rainy season when dust accumulation is highest.
• Elevated installation with adequate airflow: Mounting panels with sufficient space underneath to allow air circulation helps mitigate efficiency losses from high temperatures.
• Weather-resistant components: Using components rated for tropical conditions with high humidity and temperature resistance.
• Slight angle adjustment: While 20 degrees north is optimal for year-round production, a slightly steeper angle might be considered if wet season production is prioritized, as this would facilitate better self-cleaning during rain events.

Overall, Porto Ferreira presents a highly favorable location for solar PV installation with consistent production throughout the year and relatively minor seasonal variations compared to non-tropical locations.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

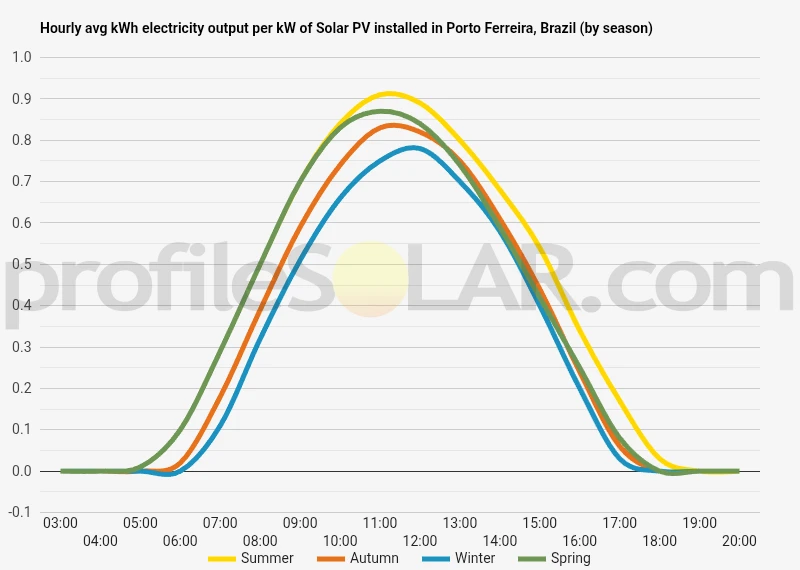

Solar output per kW of installed solar PV by season in Porto Ferreira

Seasonal solar PV output for Latitude: -21.8453, Longitude: -47.4393 (Porto Ferreira, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° North in Porto Ferreira, Brazil

To maximize your solar PV system's energy output in Porto Ferreira, Brazil (Lat/Long -21.8453, -47.4393) throughout the year, you should tilt your panels at an angle of 20° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Porto Ferreira, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Porto Ferreira, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	27° North in Autumn	37° North in Winter	15° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Porto Ferreira, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Porto Ferreira, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Porto Ferreira, Brazil

The topography around Porto Ferreira, Brazil presents a varied landscape characteristic of the interior of São Paulo state. The region sits within the Paraná River basin, with moderate elevation variations between 540 and 650 meters above sea level. The terrain can be described as gently rolling hills interspersed with relatively flat plateaus, creating an undulating landscape that gradually slopes toward local water bodies such as the Mogi-Guaçu River which flows near the city. The area exhibits a classic interior São Paulo morphology, with broad open spaces that have historically been converted from original Cerrado (savanna) vegetation to agricultural use. This agricultural transformation has resulted in extensive cleared areas with good solar exposure. The natural vegetation that remains consists primarily of scattered patches of seasonal semi-deciduous forest and cerrado vegetation, particularly along watercourses and in protected areas.

Solar Potential Across the Landscape

The topographical characteristics of Porto Ferreira and its surroundings make several areas particularly well-suited for large-scale solar photovoltaic installations. The most promising locations include: The elevated plateau areas to the east and northeast of Porto Ferreira offer ideal conditions for solar PV development. These higher elevation zones experience minimal shadowing effects from surrounding terrain and maintain consistent solar exposure throughout the year. The relatively flat terrain in these areas would minimize earthwork requirements during installation, reducing development costs. Agricultural zones surrounding the municipality, particularly those with gentle slopes facing north, present excellent opportunities for solar development. These areas already have reduced tree cover and established access roads from farming activities, potentially simplifying the development process. The slight northern inclination of many of these fields naturally optimizes solar panel orientation for the Southern Hemisphere. The western portions of the region, extending toward Santa Rita do Passa Quatro, feature expansive areas with minimal topographical barriers and good drainage characteristics. These areas typically experience less cloud cover than regions closer to major water bodies, potentially increasing overall solar efficiency. Areas to avoid include the riparian zones along the Mogi-Guaçu River and other watercourses, which have both environmental protection status and less ideal topography for large installations. Similarly, the more densely forested sections, particularly in the southern portions of the region, would require significant clearing and likely face stronger environmental restrictions. The region's overall landscape combines favorable solar exposure with accessible terrain that has already seen significant human modification, creating numerous viable locations for large-scale solar development that would require minimal additional land transformation.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
