Porto Firme, Minas Gerais, Brazil presents a very favorable location for year-round solar energy generation, with its tropical positioning delivering consistent sunlight throughout most of the year. The location produces strong solar output across all seasons, making it an excellent candidate for solar PV installations.

Seasonal Solar Performance

The solar energy production at Porto Firme shows impressive consistency throughout the year. Summer delivers the highest output at 5.99 kWh per day per kW of installed solar capacity, while spring and autumn maintain strong production levels at 5.47 kWh and 5.44 kWh respectively. Even during winter, the lowest production period, the location still generates a solid 4.84 kWh per day per kW. This relatively small seasonal variation of just over 1 kWh between peak and minimum production demonstrates the location's reliability for solar energy. The summer and spring months represent the ideal times for maximum solar generation, though the year-round performance remains consistently strong.

Optimal Installation Setup

For fixed panel installations at Porto Firme, Minas Gerais, the ideal tilt angle is 20 degrees facing North to maximize total year-round solar production. This angle has been calculated by analyzing daily solar elevation angles, determining optimal panel positioning, and weighting these factors using solar irradiance data while accounting for Earth's elliptical orbit patterns.

Environmental and Weather Considerations

Several local factors could potentially impact solar production efficiency at this tropical location:

• Wet season impacts: Heavy rainfall and increased cloud cover during wet seasons can reduce solar irradiance
• High humidity: Tropical humidity levels may affect panel efficiency and create condensation issues
• Dust and debris accumulation: Dry periods can lead to dust buildup on panel surfaces
• Vegetation growth: The tropical climate promotes rapid plant growth that could create shading

Preventative Measures for Optimal Performance

To ensure maximum energy production despite these challenges, several installation strategies should be implemented. Proper panel spacing and mounting systems that allow adequate airflow will help manage humidity effects and prevent moisture-related issues. Regular cleaning schedules become particularly important in this environment, with panels requiring more frequent maintenance during dry periods to remove dust accumulation and after wet seasons to clear any debris. Installing panels with anti-reflective coatings can help maintain efficiency even when some dust is present. Careful site preparation should include vegetation management around the installation area, with ongoing maintenance to prevent shading from fast-growing tropical plants. Consider installing monitoring systems to quickly identify any performance drops that might indicate environmental interference. Overall, Porto Firme offers excellent conditions for solar energy generation, and with proper installation techniques and maintenance practices, the environmental factors can be effectively managed to maintain high energy production year-round.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

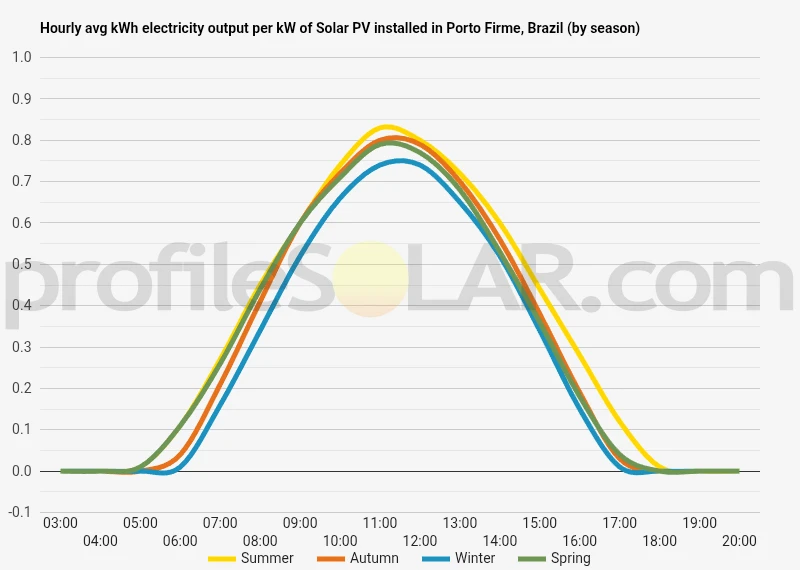

Solar output per kW of installed solar PV by season in Porto Firme

Seasonal solar PV output for Latitude: -20.6674, Longitude: -43.065 (Porto Firme, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° North in Porto Firme, Brazil

To maximize your solar PV system's energy output in Porto Firme, Brazil (Lat/Long -20.6674, -43.065) throughout the year, you should tilt your panels at an angle of 20° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Porto Firme, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Porto Firme, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° North in Summer	26° North in Autumn	36° North in Winter	15° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Porto Firme, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Porto Firme, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Porto Firme, Brazil

Topographical Features Around Porto Firme

Porto Firme sits within the southeastern region of Minas Gerais state, positioned in an area characterized by rolling hills and moderate elevation changes typical of the Brazilian Highlands. The terrain around this municipality features undulating topography with elevations generally ranging between 600 and 900 meters above sea level. The landscape consists of gentle to moderate slopes interspersed with flatter valley areas and ridgelines that create a varied but not dramatically mountainous environment. The region forms part of the broader Mantiqueira mountain system's foothills, though Porto Firme itself occupies a relatively moderate position within this geological framework. The local topography includes numerous small watersheds and drainage patterns that have carved subtle valleys through the terrain over geological time. These natural features create a patchwork of different slope orientations and gradients across the landscape. Agricultural activity has significantly shaped the current land use patterns, with much of the original Atlantic Forest vegetation having been cleared for farming and cattle ranching. This human modification has resulted in predominantly open landscapes with scattered forest remnants, creating a mosaic of cleared fields, pastures, and wooded areas across the rolling terrain.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be the flatter valley floors and gentle south-facing slopes that characterize much of the agricultural land surrounding Porto Firme. These areas offer several advantages including relatively level ground that minimizes construction complexity and reduces the need for extensive grading or terracing work. The cleared agricultural lands present particularly attractive opportunities since they already lack forest cover that would require removal, and the existing land use patterns have created large contiguous areas suitable for solar array deployment. Many of these agricultural zones feature gentle gradients that would allow for optimal panel positioning while maintaining reasonable construction costs. Areas with southeastern to southwestern exposures on the moderate slopes would be especially well-suited, as these orientations can maximize solar collection throughout the day. The rolling nature of the terrain means that many locations offer natural windbreaks from surrounding hills while still maintaining good solar access, which can be beneficial for both energy production and equipment protection. The existing road network serving the agricultural areas provides another advantage, as it offers potential access routes for construction equipment and ongoing maintenance operations. Many of the larger cleared areas are already accessible via rural roads that connect to the broader regional transportation network. Valley areas that experience good drainage and are not prone to seasonal flooding would be particularly attractive for solar development. The region's topography generally provides adequate natural drainage, though careful site selection would be necessary to avoid areas where water might collect during heavy rainfall periods.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
