Solar Power Potential in Porto Real, Rio de Janeiro, Brazil

Porto Real, Rio de Janeiro, Brazil, located at latitude -22.4536 and longitude -44.3321, offers promising conditions for solar power generation throughout the year. Situated in the tropics, this location benefits from relatively consistent sunlight patterns, making it a potentially viable site for solar PV installations. The seasonal production patterns show moderate variation across the year. During summer months, solar panels can generate approximately 6.15 kWh per day for each kilowatt of installed capacity, representing the peak production period. This output decreases slightly to 5.24 kWh/day in autumn and further to 4.54 kWh/day during winter, which marks the lowest production season. In spring, production rebounds to 5.32 kWh/day, approaching autumn levels.

Optimal Panel Positioning

For fixed solar panel installations in Porto Real, Rio de Janeiro, the ideal tilt angle to maximize year-round energy production is 21 degrees facing North. This specific angle has been calculated to optimize solar capture across all seasons, accounting for the location's position in the Southern Hemisphere and the Earth's elliptical orbit.

Environmental and Weather Considerations

Several environmental factors could potentially impact solar production in Porto Real:

• Seasonal rainfall: The region experiences a distinct wet season which can reduce solar efficiency due to cloud cover and direct rainfall on panels.
• Dust and pollution: Being in a developing industrial area, airborne particulates may accumulate on panels, reducing their efficiency over time.
• Humidity: The tropical climate brings high humidity levels that can accelerate degradation of equipment if not properly protected.

To mitigate these challenges, several preventative measures can be implemented during installation:

Recommended Preventative Measures

Installing panels with self-cleaning technologies or hydrophobic coatings can help manage the effects of rainfall and dust. Regular maintenance schedules should be established, particularly before and after the wet season. Additionally, using high-quality components with proper IP ratings for humidity resistance will extend system longevity in this tropical environment. The installation should also include robust lightning protection systems, as tropical regions often experience thunderstorms. Finally, incorporating a slight additional tilt beyond the recommended 21 degrees might be considered to improve natural cleaning from rainfall, though this would come with a minor reduction in overall production efficiency.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

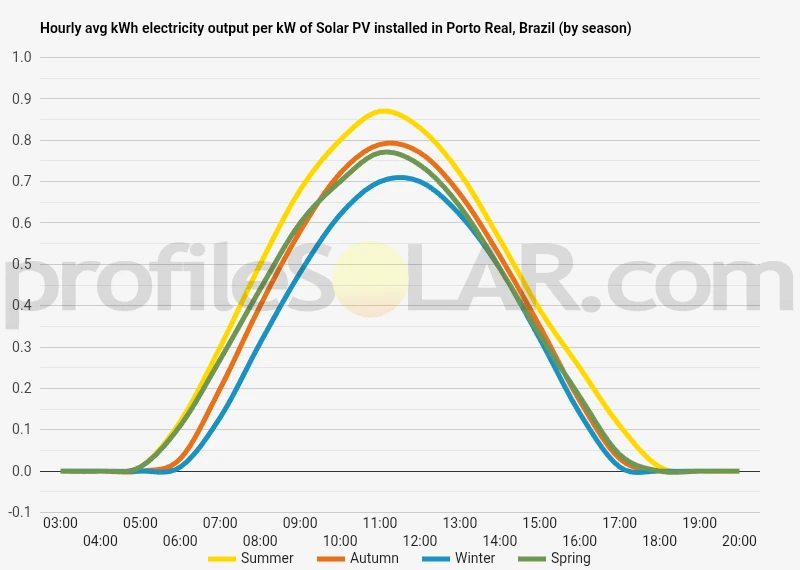

Solar output per kW of installed solar PV by season in Porto Real

Seasonal solar PV output for Latitude: -22.4536, Longitude: -44.3321 (Porto Real, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Porto Real, Brazil

To maximize your solar PV system's energy output in Porto Real, Brazil (Lat/Long -22.4536, -44.3321) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Porto Real, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Porto Real, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° North in Summer	28° North in Autumn	38° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Porto Real, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Porto Real, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Porto Real, Brazil

Porto Real is nestled in the Paraíba Valley region of Brazil, characterized by a diverse and undulating topography that significantly influences its landscape. The area sits within the Atlantic Forest biome, with the municipality positioned along the banks of the Paraíba do Sul River. This river forms a central feature of the landscape, creating a fertile valley surrounded by rolling hills and more pronounced elevations. The terrain around Porto Real presents a combination of relatively flat river plains near the Paraíba do Sul River, which gradually transition into more elevated areas with hills and small mountains as one moves away from the river. The elevation in the region generally ranges from approximately 350 meters above sea level in the valley floor to over 600 meters in the surrounding highlands. This varied topography creates distinct microclimates and ecological zones within a relatively small geographic area.

Surrounding Mountain Ranges

Porto Real is situated in proximity to significant mountain ranges that define the broader regional topography. To the north lies the Serra da Mantiqueira mountain range, a formidable natural barrier with peaks reaching over 2,000 meters in some areas. To the south, the Serra do Mar coastal mountains separate the interior plateau from the Atlantic coast. These mountain ranges contribute to the region's climate patterns and create dramatic visual backdrops to the landscape. The interaction between these mountain ranges and the Paraíba Valley creates a corridor effect that influences local wind patterns and precipitation. The mountains also serve as important watershed areas, feeding numerous streams and tributaries that flow into the Paraíba do Sul River system.

Optimal Areas for Solar PV Development

When considering large-scale solar photovoltaic (PV) installations near Porto Real, several topographical factors become important. The most suitable areas would generally be: The gently sloping terrains on the valley floors offer excellent potential for solar PV development. These areas provide relatively flat expanses that minimize installation costs and complexity while maximizing exposure to sunlight throughout the day. The northern banks of the Paraíba do Sul River, where gradual slopes face southward, present particularly favorable conditions. South-facing hillsides with moderate slopes (5-15 degrees) represent another promising option. These areas benefit from optimal sun angles while avoiding the shadowing effects that can occur in steeper terrain. The elevated plateaus to the northwest of Porto Real offer several such locations with good solar exposure and minimal obstruction from surrounding higher terrain. The transitional zones between the valley floor and the foothills, particularly those with minimal forest cover, present opportunities for solar development that balances accessibility with favorable sun exposure. These areas often have already been modified for agricultural use, potentially reducing environmental impact concerns. It's worth noting that the more mountainous terrain to the north and south, while receiving abundant sunlight at certain times, presents significant challenges for large-scale solar development due to installation difficulties, shadowing effects from adjacent peaks, and potential environmental sensitivities associated with these less-disturbed ecosystems.

Topographical Challenges

Despite the promising areas identified above, the topography around Porto Real does present certain challenges for solar PV development. The region experiences seasonal rainfall patterns that can lead to localized flooding in lower-lying areas, particularly those adjacent to the river. This necessitates careful site selection and proper drainage planning for any large-scale installation. Additionally, some of the more accessible flat areas are already utilized for agriculture or urban development, creating potential land-use conflicts. This may direct solar development toward the more marginal agricultural lands on gentle slopes, which can actually be advantageous from a solar exposure perspective. The varied topography also means that transmission infrastructure planning requires careful consideration, as connecting generating capacity from hillside locations to the existing grid may involve crossing challenging terrain. However, the presence of established transportation corridors along the valley floor provides potential routes for transmission infrastructure development. In conclusion, while Porto Real's topography presents a mixed landscape of opportunities and challenges for solar PV development, the region does offer substantial suitable areas, particularly in the valley floors and gentle south-facing slopes that combine favorable sun exposure with reasonable development conditions.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
