Porto Xavier, Rio Grande do Sul, Brazil, located in the Southern Sub Tropics, presents a moderately favorable location for year-round solar energy generation, though with significant seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy output at this location varies considerably throughout the year. Summer delivers the strongest performance at 7.50 kWh per day per kW of installed solar capacity, making it the ideal season for solar generation. Spring follows as the second-best season with 5.89 kWh per day per kW, while autumn drops to 4.98 kWh per day per kW. Winter presents the most challenging conditions with only 3.70 kWh per day per kW of installed capacity. This seasonal pattern means that solar installations at Porto Xavier will generate approximately twice as much electricity during peak summer months compared to the winter period. The location experiences its best solar generation period from late spring through summer, roughly spanning from October through March in the Southern Hemisphere.

Optimal Panel Configuration

For fixed panel installations at Porto Xavier, Rio Grande do Sul, the ideal tilt angle to maximize total year-round solar production is 24 degrees facing North. This angle is calculated by analyzing daily solar elevation angles throughout the year and weighting them according to solar irradiance data, accounting for Earth's elliptical orbit around the sun.

Local Environmental Challenges

Several environmental and weather factors at Porto Xavier could potentially impact solar energy production:

• High humidity levels typical of subtropical regions can lead to increased dust and debris accumulation on solar panels
• Frequent rainfall during certain seasons may cause temporary reductions in solar output
• The proximity to agricultural areas may result in increased airborne particles and pollen that can coat panel surfaces
• Subtropical storm systems can bring periods of heavy cloud cover and reduced solar irradiance

Preventative Measures for Enhanced Performance

To maximize solar energy production despite these challenges, several preventative measures should be implemented:

• Install panels with adequate spacing to allow natural rainfall to clean surfaces effectively
• Implement regular cleaning schedules, particularly during dry periods when dust accumulation is highest
• Use high-quality mounting systems designed to withstand subtropical weather conditions including strong winds and heavy rainfall
• Consider anti-soiling coatings on panels to reduce dust and debris adhesion
• Ensure proper drainage around solar installations to prevent water pooling and potential electrical issues
• Install monitoring systems to quickly identify performance drops that may indicate cleaning or maintenance needs

Overall, while Porto Xavier offers reasonable solar potential, particularly during the warmer months, the significant seasonal variation and subtropical environmental factors require careful planning and ongoing maintenance to achieve optimal performance from solar PV installations.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

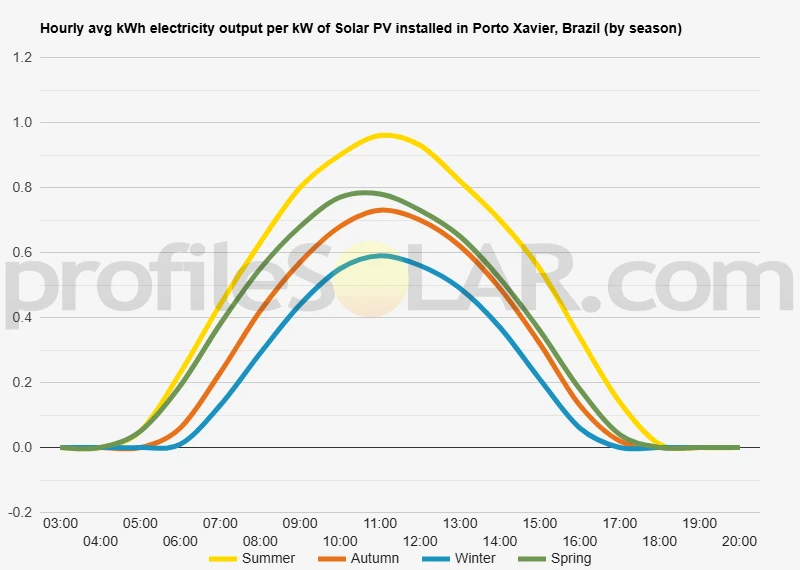

Solar output per kW of installed solar PV by season in Porto Xavier

Seasonal solar PV output for Latitude: -27.9332, Longitude: -55.1542 (Porto Xavier, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° North in Porto Xavier, Brazil

To maximize your solar PV system's energy output in Porto Xavier, Brazil (Lat/Long -27.9332, -55.1542) throughout the year, you should tilt your panels at an angle of 24° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Porto Xavier, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Porto Xavier, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° North in Summer	33° North in Autumn	43° North in Winter	21° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Porto Xavier, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Porto Xavier, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Porto Xavier, Brazil

Topographical Features of Porto Xavier

Porto Xavier sits in the northwestern region of Rio Grande do Sul state, positioned along the banks of the Uruguay River which forms the international border between Brazil and Argentina. The municipality is characterized by gently rolling hills and undulating terrain typical of the southern Brazilian plateau region. The landscape features moderate elevation changes with gradual slopes rather than steep mountainous terrain, creating a relatively accessible topography for development projects. The area around Porto Xavier lies within the broader context of the Rio Grande do Sul highlands, where the terrain consists primarily of grasslands interspersed with patches of native forest. The elevation in the region ranges from approximately 100 to 300 meters above sea level, with the lowest points near the Uruguay River valley and higher ground extending inland toward the east. This moderate elevation provides good drainage while avoiding the complications that come with extremely hilly or mountainous terrain.

Climate and Environmental Characteristics

The regional climate is classified as humid subtropical, with distinct seasonal variations throughout the year. Summer months bring warm temperatures and frequent rainfall, while winter periods are cooler and generally drier. The area experiences relatively consistent weather patterns without extreme seasonal variations in cloud cover or atmospheric conditions that might significantly impact solar energy generation potential. The landscape surrounding Porto Xavier is predominantly agricultural, with extensive cattle ranching and crop cultivation dominating land use patterns. This agricultural character means much of the terrain has already been cleared and leveled for farming purposes, potentially reducing site preparation costs for large infrastructure projects.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Porto Xavier would be the elevated plateaus and gentle hillsides that extend eastward from the Uruguay River valley. These areas offer several advantages including relatively flat to gently sloping terrain that requires minimal grading, good natural drainage to prevent water accumulation around solar equipment, and existing agricultural land that could be repurposed for energy generation. The higher elevation areas, particularly those between 200 and 300 meters above sea level, present ideal conditions due to their stable ground conditions and reduced risk of flooding. These elevated locations also tend to have fewer trees and natural obstructions, having been historically used for cattle grazing and crop production. The gentle slopes in these areas, typically ranging from 2 to 8 degrees, are well within acceptable parameters for solar panel installation while providing natural water runoff. Areas closer to the Uruguay River valley, while more level, may present challenges due to periodic flooding and higher humidity levels that could affect equipment performance and maintenance requirements. The river valley locations also tend to have more vegetation and may require additional environmental considerations during development. The existing agricultural infrastructure in the region, including farm roads and electrical connections to support rural properties, could provide valuable foundation infrastructure for solar development projects. Many of the elevated agricultural areas already have basic road access that could be upgraded to support construction and maintenance activities for solar installations.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
