Presidente Bernardes, Minas Gerais, Brazil presents a good location for year-round solar energy generation, with its tropical positioning providing consistent sunlight throughout most of the year. Located at coordinates -20.7694, -43.1626, this area experiences the typical tropical climate pattern where seasons are distinguished more by wet and dry periods rather than dramatic temperature variations.

Solar Energy Production Potential

The solar energy output data shows that Presidente Bernardes maintains relatively strong generation capacity across all seasons. Summer delivers the highest production at 5.99 kWh per day per kW of installed solar capacity, while spring and autumn provide very similar outputs at 5.47 kWh and 5.44 kWh respectively. Even during winter, the location still produces a respectable 4.84 kWh per day per kW of installed capacity. Summer and spring represent the ideal times for solar generation at this location, with summer being the peak season. However, the relatively modest variation between seasons means that solar installations here can expect fairly consistent energy production year-round, making it an attractive location for solar investment. For optimal performance, solar panels should be installed at a fixed tilt angle of 20 degrees facing north. This angle has been calculated to maximise total year-round production by accounting for the sun's path throughout the year, Earth's elliptical orbit, and daily solar irradiance patterns specific to this latitude.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production in Presidente Bernardes:

• Wet season impacts: The tropical climate brings distinct wet seasons with heavy rainfall, high humidity, and increased cloud cover that can reduce solar irradiance
• Dust and debris accumulation: Dry seasons may lead to dust buildup on panels, while wet seasons can cause organic matter and sediment deposits
• High humidity effects: Persistent moisture can affect electrical connections and potentially lead to corrosion over time
• Tropical storms: The region may experience severe weather events that could damage installations

Preventative Measures for Optimal Performance

To ensure maximum energy production despite these challenges, several installation strategies should be considered:

• Regular cleaning systems: Install automated cleaning mechanisms or schedule frequent manual cleaning to remove dust, debris, and organic matter
• Proper drainage design: Ensure adequate water runoff to prevent standing water and reduce humidity-related issues around electrical components
• Quality weatherproofing: Use marine-grade or tropical-rated electrical connections and enclosures designed for high-humidity environments
• Structural reinforcement: Design mounting systems to withstand tropical storm conditions with appropriate wind load calculations
• Ventilation considerations: Allow adequate airflow around panels to reduce heat buildup and moisture retention

Despite these potential challenges, the consistent solar output throughout the year makes Presidente Bernardes a viable location for solar energy projects, provided that proper installation techniques and maintenance protocols are followed to address the tropical climate conditions.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

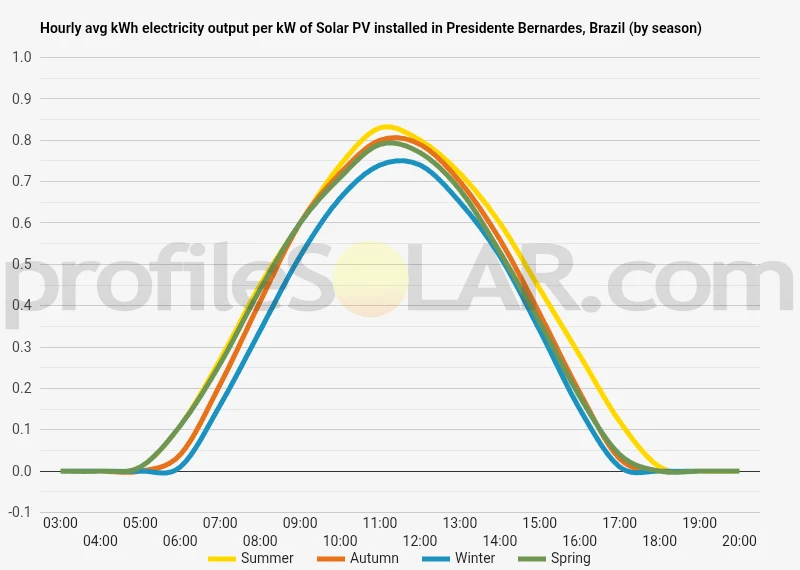

Solar output per kW of installed solar PV by season in Presidente Bernardes

Seasonal solar PV output for Latitude: -20.7694, Longitude: -43.1626 (Presidente Bernardes, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° North in Presidente Bernardes, Brazil

To maximize your solar PV system's energy output in Presidente Bernardes, Brazil (Lat/Long -20.7694, -43.1626) throughout the year, you should tilt your panels at an angle of 20° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Presidente Bernardes, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Presidente Bernardes, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° North in Summer	26° North in Autumn	36° North in Winter	15° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Presidente Bernardes, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Presidente Bernardes, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Presidente Bernardes, Brazil

Topographical Features of the Presidente Bernardes Region

The area around Presidente Bernardes in southeastern Brazil sits within the Serra da Mantiqueira mountain range region, characterized by rolling hills and moderate elevation changes. The terrain features a mix of gentle slopes and more pronounced ridges, with elevations typically ranging from 800 to 1,200 meters above sea level. This mountainous landscape creates a series of valleys and plateaus that define the local geography.

The region experiences a subtropical highland climate due to its elevation, with the topography creating natural drainage patterns that flow toward larger river systems. The landscape is marked by undulating terrain rather than steep mountainous peaks, making much of the area accessible for development while still maintaining the scenic character of the Brazilian highlands.

Vegetation in the area consists primarily of Atlantic Forest remnants and pastureland, with some areas converted to agricultural use. The soil composition varies across different elevations, with clay-rich soils common in valley areas and more rocky, well-drained soils found on higher elevations and ridge lines.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations in this region would be the relatively flat plateau areas and gentle south-facing slopes that receive consistent solar exposure throughout the day. These areas typically occur at mid-elevations between the valley floors and ridge tops, where the terrain is stable and accessible while avoiding the shadowing effects of nearby hills.

Valley floors, while flat and easily accessible, may experience morning fog and reduced solar exposure due to surrounding elevated terrain. The ideal sites would be found on broad, gently sloping areas with southern exposure that remain clear of shadows cast by adjacent ridges and hills. These locations also tend to have better access to existing infrastructure and transportation networks.

Areas with minimal vegetation or existing agricultural clearings would be preferable for solar development, as they require less environmental disruption and site preparation. The region's moderate elevation provides good atmospheric conditions for solar generation while avoiding the extreme weather patterns that can affect higher mountain peaks.

Sites with proximity to existing electrical infrastructure and road networks would offer additional advantages for large-scale solar installations. The relatively stable geological conditions of the region, combined with well-drained soils on moderate slopes, provide suitable foundations for solar mounting systems while minimizing erosion and water management concerns.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
